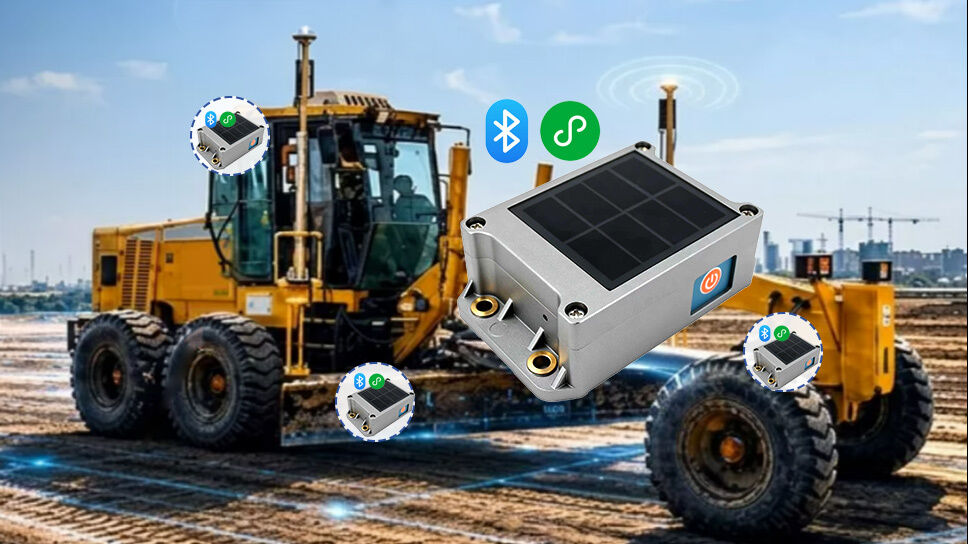

BDA450 Bluetooth Dynamic Attitude Sensor for Motor Grader Angle Control

Name: BDA450 Bluetooth Dynamic Attitude Sensor for Motor Grader Angle Control
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA446T
Price: 56.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, FCC , ROHS

Model Number: HDA446T

Document: HDA446T DIGITAL OUTPUT DYNA...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $56.00/Pieces

Packaging Details: Carton

Delivery Time: 5~8 work days

Payment Terms: T/T

Supply Ability: 3000/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Bluetooth dynamic attitude sensor, Motor grader angle control sensor, Dynamic inclinometer with Bluetooth


Weight:	≤165g (Without Cable)	Static Accuracy:	± 0.05°
Wide Voltage Input:	DC 9~36V	Anti-vibration:	10grms / 10～1000Hz
Protection Level Optional:	IP67/IP68	Output Optional:	RS485/232/TTL

Weight:	≤165g (Without Cable)
Static Accuracy:	± 0.05°
Wide Voltage Input:	DC 9~36V
Anti-vibration:	10grms / 10～1000Hz
Protection Level Optional:	IP67/IP68
Output Optional:	RS485/232/TTL

Description

BDA450 Bluetooth Dynamic Attitude Sensor for Motor Grader Angle Control

HDA446T DIGITAL OUTPUT DYNAMIC TILT SENSOR.pdf

APPLICATION FIELD

High vibration impact gravel equipment
Railway locomotive monitoring
Satellite communication vehicle attitude detection
Shield pipe jacking application
Shield pipe jacking application
Geological equipment tilt monitoring
Underground drilling rig attitude navigation
Ship navigation attitude measurement
Orientation measurement based on inclination angle
Oil drilling equipment

MAIN FEATURES

Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
Roll&Pitch Dynamic accuracy: ± 0.1°
Static accuracy: ± 0.05°
RS485/232/TTL output Optional
DC 9~36V wide voltage input
Wide temperature operation -40~+ 85℃
IP67/IP68 Protection level Optional

HDA446T-C2/C3		Condition	Parameter
Measure range		\	Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°)
Measure axis		\	X axis / Y axis / Z axis
Roll&Pitch Static accuracy		@25℃	± 0.05°
Roll&Pitch Dynamic accuracy (RMS) ¹⁾		@25℃	± 0.1°
Gyro	range	-	±300°/s
	Zero bias stability (10s smooth)	-	8.5°/h
	Angle random walk coefficient(Allan)	-	0.25°/sqrt(h)
Acceleration	range	-	±4g / ±16g optional
	Bias stability(10s mean)	-	0.02mg
	Bias instability(Allan)	-	0.005mg
	Speed random walk coefficient(Allan)	-	0.005m/s/sqrt(h)
Zero point temp. Coefficient²⁾		-40~85℃	±0.01°/℃
Sensitivity temp. Coefficient³⁾		-40~85℃	≤100ppm/℃
Power-on startup time		≤3.5S
Response time		0.01S
Output signal		CAN2.0A/CAN2.0B
Electromagnetic compatibility		According to EN61000 and GBT17626
MTBF		≥ 98000 hours / time
Insulation resistance		≥100 Megohm
Impact resistance		100g @ 11ms, 3 axial direction (half sinusoid)
Anti-vibration		10grms / 10~1000Hz
Waterproof level		Standard IP67, optional IP68 and corrosion-resistant IP68 protection level
Weight		Single connector ≤165g / double connector ≤180g (Without cable)
¹⁾Accuracy: refers to the root mean square difference between the measured and actual angle value by multiple measurements (>16 times) under normal temperature. ²⁾Zero temp. drift coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree. ³⁾Sensitivity temp. drift coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

1. What is the BDA450 used for in motor graders?
The BDA450 is used to provide real-time dynamic attitude data for motor grader angle control, blade angle monitoring and leveling applications.

2. Can the BDA450 measure the angle of a motor grader?
Yes. BDA450 provides real-time 3D attitude data that can be used to monitor the working angle of motor graders and grading blades during operation.

3. How does BDA450 improve motor grader leveling?
By providing real-time attitude information, BDA450 helps the control system monitor changes in machine attitude and adjust the blade angle for more consistent leveling and grading.

4. Does BDA450 support wireless communication?
Yes. BDA450 uses Bluetooth 5.1 BLE wireless transmission, with up to 40 m line-of-sight transmission in an unobstructed environment.

6. What is the update rate of the BDA450 attitude sensor?
The BDA450 supports a maximum update rate of 100 Hz, making it suitable for real-time dynamic attitude monitoring.
