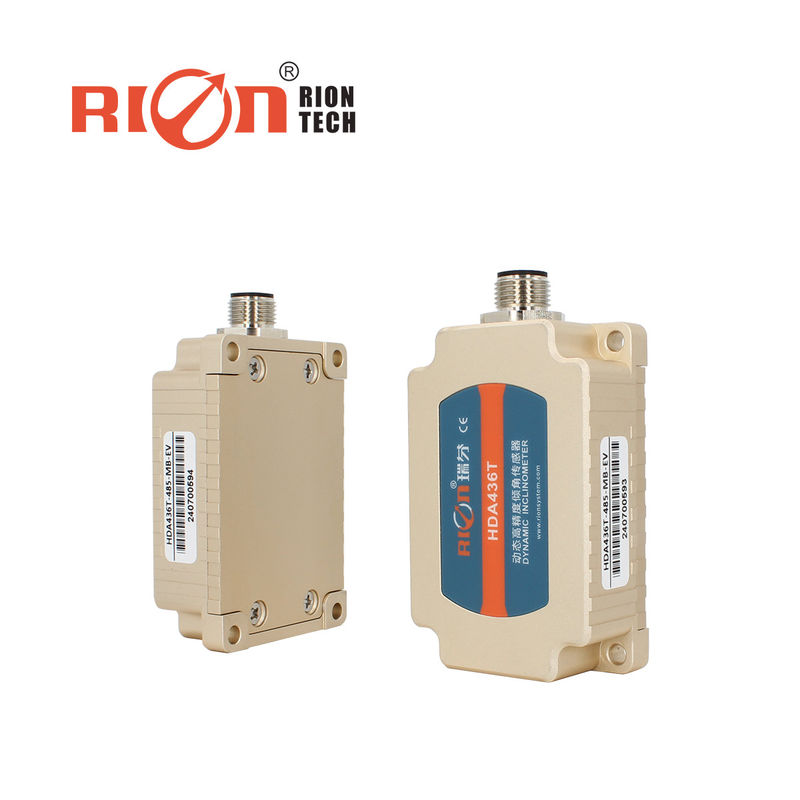

3 Axes Dynamic Inclinometer MEMS Gyro Analog IMU MEMS Angle Sensor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436T-485-MB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $161.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T, PayPal

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

3 axes dynamic inclinometer

,

dynamic inclinometer mems gyro

,

analog imu mems sensor

Usage:
Level Sensor
Theory:
MEMS
Output:
Digital Sensor
Brand:
Dual Axis Inclinometer
Voltage - Supply:
DC9-3V
Output Type:
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature:
-40C° ~ +85C °
Mounting Type:
Horizontal , Magnetic Based (optional)
Resolution (Bits):
0.01
Size / Dimension:
L107*W54*H31mm
Interface:
Serial
Technology:
MEMS
Application:
Industrial Automation
Inclinometer Wide Voltage Input:
DC9~36V
Protection Class:
IP67
High Resolution:
0.01°
Highly Anti-vibration Performance:
>2000g
Zero Temperature Coefficient:
±0.01 °/℃
Sensitivity Temperature Coefficient:
≤100ppm/℃
Power On Time:
1s
Response Time:
0.01s
Static Accuracy:
± 0.05°
Dynamic Accuracy:
± 0.3°
Usage:
Level Sensor
Theory:
MEMS
Output:
Digital Sensor
Brand:
Dual Axis Inclinometer
Voltage - Supply:
DC9-3V
Output Type:
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature:
-40C° ~ +85C °
Mounting Type:
Horizontal , Magnetic Based (optional)
Resolution (Bits):
0.01
Size / Dimension:
L107*W54*H31mm
Interface:
Serial
Technology:
MEMS
Application:
Industrial Automation
Inclinometer Wide Voltage Input:
DC9~36V
Protection Class:
IP67
High Resolution:
0.01°
Highly Anti-vibration Performance:
>2000g
Zero Temperature Coefficient:
±0.01 °/℃
Sensitivity Temperature Coefficient:
≤100ppm/℃
Power On Time:
1s
Response Time:
0.01s
Static Accuracy:
± 0.05°
Dynamic Accuracy:
± 0.3°
Description
3 Axes Dynamic Inclinometer MEMS Gyro Analog IMU MEMS Angle Sensor

▶ PRODUCT DESCRIPTION

HDA536T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / 232 / TTL are optional, and the scalability is strong. This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces. Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments. The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference. It is an ideal choice for industrial automation control measurement posture.



▶ APPLICATION

★ Satellite search satellites
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Radar vehicle platform detection
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Satellite communication vehicle attitude detection ★ Orientation measurement based on inclination angle ★ Various engineering machinery inclination measurement







HDA536T
Condition
Index
Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
Measuring axis
/
X axis / Y axis / Z axis
Resolution


0.01°
Static accuracy
@25℃
± 0.05°
Dynamic accuracy
@25℃
± 0.3°
Bias Instability (Allan)


8°/h
Zero point temp. coefficient
-40~85°
±0.01°/℃
Sensitivity temp. coefficient
-40~85°
≤100ppm/℃
Power-on startup time
1S
Response time
0.01S
Output signal
RS485/RS232/TTL
Electromagnetic compatibility
According to EN61000 and GBT17626
MTBF
≥ 50000 hours / time
Insulation resistance
≥100 Megohm
Impact resistance
100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration
10grms,10~1000Hz
Protection grade
IP67
Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
