Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter

1
MOQ
$161.00/Pieces
Price
Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Level Sensor
Theory: MEMS
Output: Digital Sensor
Description: Dual Axis Inclinometer
Inclinometer Wide Voltage Input: DC9~36V
Protection Class: IP67
High Resolution: 0.01°
Highly Anti-vibration Performance: >2000g
Zero Temperature Coefficient: ±0.01 °/℃
Sensitivity Temperature Coefficient: ≤100ppm/℃
Power On Time: 1s
Response Time: 0.01s
Static Accuracy: ± 0.05°
Dynamic Accuracy: ± 0.3°
Interface: Serial
Application: Industrial Automation
Voltage - Supply: DC9-3V
Output Type: RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature: -40C° ~ +85C °
Mounting Type: Horizontal , Magnetic Based (optional)
Resolution (Bits): 0.01
Size / Dimension: L107*W54*H31mm
Technology: MEMS
High Light:

auto level mems tilt sensor

,

angle motion mems tilt sensor

,

mems digital angle meter

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436T-232
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7 days for samples
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Product Description
high accuracy angle motion sensor digital angle finder auto level instrument price dynamic angle measuring tools



▶ PRODUCT DESCRIPTION

high accuracy angle motion sensor digital angle finder auto level instrument price dynamic angle measuring tools

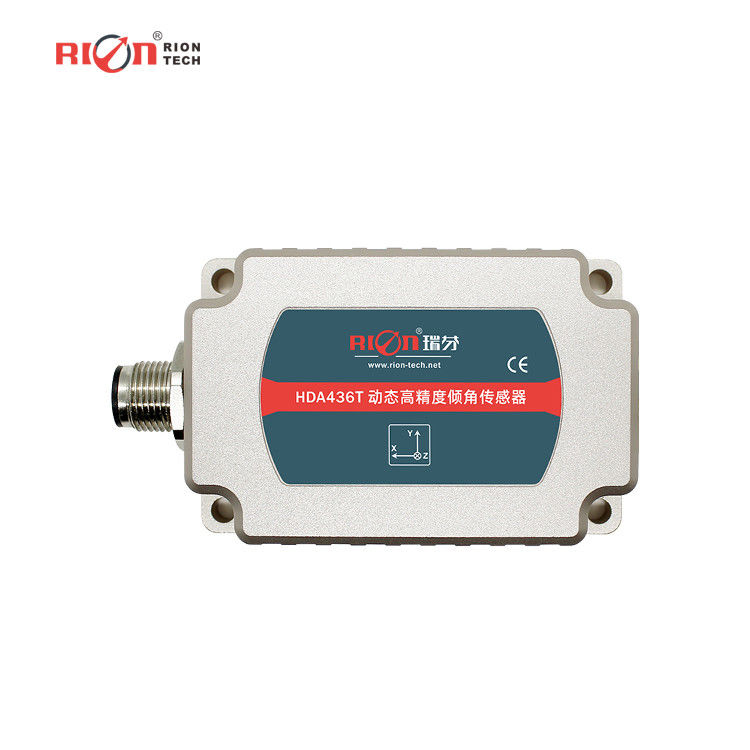

HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.
HDA536T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / 232 / TTL are optional, and the scalability is strong. This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces. Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments. The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference. It is an ideal choice for industrial automation control and military-civilian dual-use measurement posture.

▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9 ~ 36V wide voltage input
★ Wide temperature operation -40 ~ + 85 ℃ ★ Resolution 0.01 °
★ IP67 protection level ★ High anti-vibration performance> 2000g
★ Size: L107 × W54 × H31mm


▶ APPLICATION

★ Satellite search satellites
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Radar vehicle platform detection
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Satellite communication vehicle attitude detection ★ Initial firing angle measurement of artillery barrel ★ Orientation measurement based on inclination angle ★ Various engineering machinery inclination measurement

Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter 0
HDA536T
Condition
                                                             Index


Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)


Measuring axis
/
    X axis / Y axis / Z axis


Resolution

0.01°


Static accuracy
@25℃
± 0.05°


Dynamic accuracy
@25℃
± 0.3°


Bias Instability (Allan)

8°/h


Zero point temp. coefficient
-40~85°
±0.01°/℃


Sensitivity temp. coefficient
-40~85°
≤100ppm/℃


Power-on startup time
                          1S



Response time
                          0.01S



Output signal
                          RS485/RS232/TTL



Electromagnetic compatibility
                           According to EN61000 and GBT17626



MTBF
                             ≥ 50000 hours / time



Insulation resistance
                             ≥100 Megohm



Impact resistance
                          100g @ 11ms, Triaxial and identical (half sine wave)



Anti- vibration
10grms,10~1000Hz



Protection grade
IP67



Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g



Weight
295g (excluding cable)



Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter 2
Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter 4
Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter 6
Angle Motion Auto Level MEMS Tilt Sensor Digital Angle Meter 8
