HDA436 Vibration Azimuth Angle Dynamic Inclinometer Static Accuracy Tilt Sensor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: HDA436VU-232-MB

Document: HDA436T HDA437T DIGITAL OUT...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $161.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for sample

Payment Terms: T/T, PAYPAL

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

VIBRATION Dynamic Inclinometer

,

azimuth angle Dynamic Inclinometer

,

static accuracy tilt detection sensor

Theory:
MEMS
Output Signal:
RS485/RS232/TTL
Operating Temperature:
-40C° ~ +85C °
Roll&Pitch Resolution:
0.01°
Dynamic Sensor Wide Voltage Input:
DC9~36V
Measure Axis:
X Axis / Y Axis / Z Axis
Response Time:
0.01s
Dynamic Accuracy:
± 0.1°
Theory:
MEMS
Output Signal:
RS485/RS232/TTL
Operating Temperature:
-40C° ~ +85C °
Roll&Pitch Resolution:
0.01°
Dynamic Sensor Wide Voltage Input:
DC9~36V
Measure Axis:
X Axis / Y Axis / Z Axis
Response Time:
0.01s
Dynamic Accuracy:
± 0.1°
Description
HDA436 Vibration Azimuth Angle Dynamic Inclinometer Static Accuracy Tilt Sensor
HDA436 Vibration Azimuth Angle Dynamic Inclinometer Static Accuracy Tilt Sensor



▶ PRODUCT DESCRIPTION
HDA436T/HDA437T is a new-generation digital MEMS dynamic tilt sensor by RION Technology. It measures roll, pitch, and azimuth for moving carriers, ideal for tilt measurement in motion or vibration. Featuring high-precision acceleration and gyro sensors with a Kalman filter, it delivers real-time motion data. Optional outputs include RS485, RS232, and TTL, offering strong scalability.
The sensor uses a non-contact measurement principle to provide real-time attitude and tilt data without tracking relative surface changes. Integrated high-precision AD and gyro units compensate for nonlinearity, orthogonal coupling, temperature drift, and centrifugal acceleration, reducing errors caused by motion interference and enhancing dynamic accuracy.
With dual-mode (dynamic/static) measurement and robust electromagnetic resistance, it operates reliably in harsh industrial environments with high shock and vibration. Perfect for industrial automation and motion attitude measurement.


▶ PRODUCT FEATURES

★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

★ Resolution 0.01°

★ Roll&Pitch Dynamic accuracy: ± 0.1°

★ Static accuracy: ± 0.05°

★ RS485/232/TTL output Optional

★ DC 9~6V wide voltage input

★ Wide temperature operation -40~+ 85℃

★ IP67/IP68 Protection level Optional



▶ APPLICATION

★ High vibration impact gravel equipment

★ Railway locomotive monitoring

★ Satellite communication vehicle attitude detection

★ Shield pipe jacking application

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

★ Orientation measurement based on inclination angle

★ Oil drilling equipment

★ Various engineering machinery inclination measurement



HDA436T Condition Parameter
Measure range -

Roll±180°, pitch±90°, azimuth±180°

(initial value at power-down is 0°)

Measure axis - X axis / Y axis / Z axis
Roll&Pitch Resolution1) - 0.01°
Roll&Pitch Static accuracy2) @25℃ ± 0.05°
Roll&Pitch Dynamic accuracy(rms) @25℃ ± 0.1°
Gyro range - ±250°/s
Zero bias stability (10s mean) - 8.5°/h
Zero Bias Instability(allan) - 4.5°/h
Angle random walk coefficient(allan) - 0.25°/sqrt(h)
Acceleration range - HDA436T:±8g HDA437T:±20g
Bias stability(10s mean) - 0.02mg
Bias instability(allan) - 0.005mg
Speed random walk coefficient(allan) - 0.005m/s/sqrt(h)
Zero point temp. Coefficient3) -40~85℃ ±0.01°/℃
Sensitivity temp. Coefficient4) -40~85℃ ≤100ppm/℃
Power-on startup time ≤3.5S
Response time 0.01S
Output signal RS485/RS232/TTL
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms / 10~1000Hz
Waterproof level Standard IP67, optional IP68 and corrosion-resistant IP68 protection level
Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight

Single connector ≤165g /

double connector ≤180g (Without cable)

1)Resolution : It refers to the smallest change in the measured value that can be detected and resolved by the sensor within the measurement range.

2)Accuracy: refers to the root mean square difference between the measured and actual angle value by multiple measurements (>16 times) under normal temperature.

3)Zero temp. drift coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.

4)Sensitivity temp. drift coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

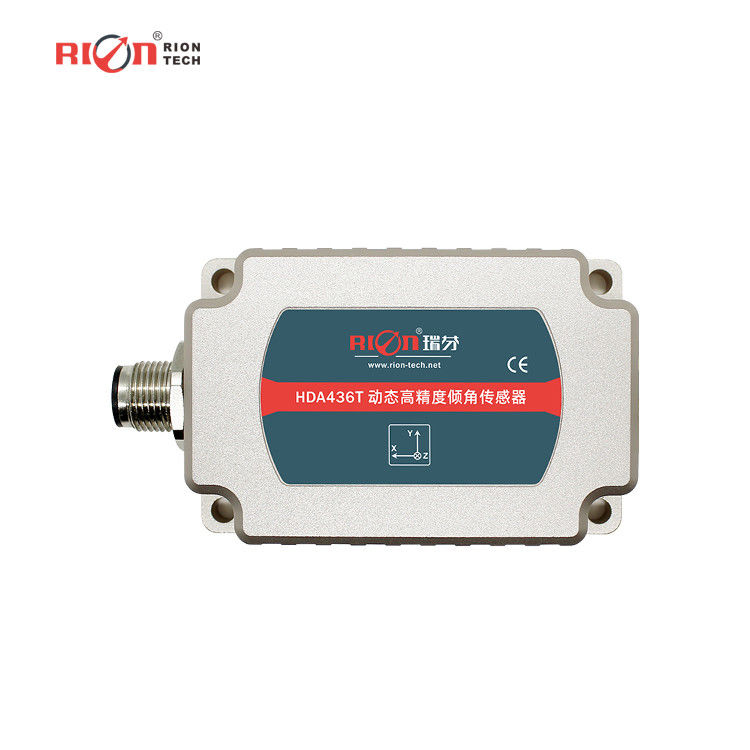

HDA436 Vibration Azimuth Angle Dynamic Inclinometer Static Accuracy Tilt Sensor 1
HDA436 Vibration Azimuth Angle Dynamic Inclinometer Static Accuracy Tilt Sensor 3
HDA436 Vibration Azimuth Angle Dynamic Inclinometer Static Accuracy Tilt Sensor 6
