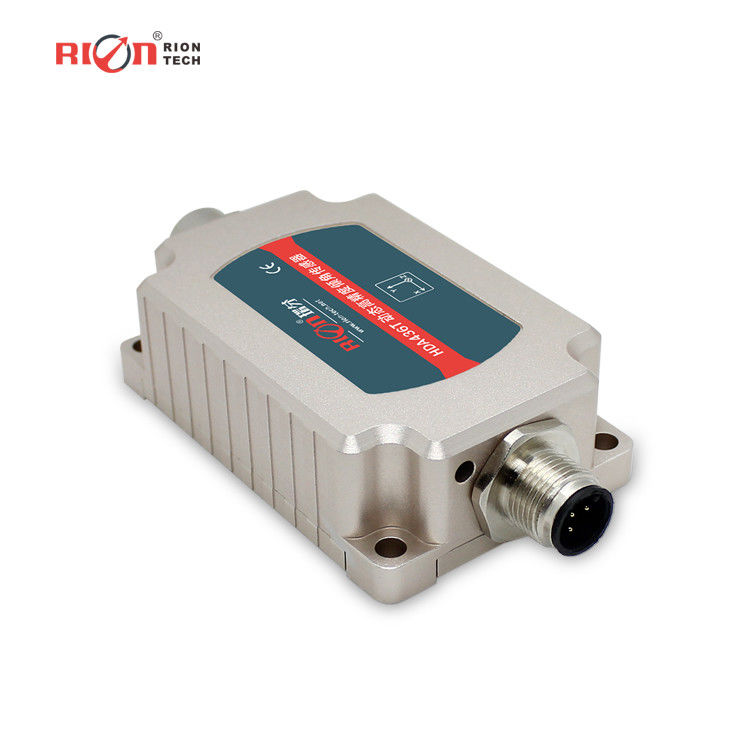

Vertical Mounting Dynamic Inclinometer 10 Axis CAN2.0 MEMS IMU Sensor

1
MOQ
$161.00/Pieces
Price
Vertical Mounting Dynamic Inclinometer 10 Axis CAN2.0 MEMS IMU Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Level Sensor
Theory: MEMS
Output: Digital Sensor
Brand: Dual Axis Inclinometer
Voltage - Supply: DC9-3V
Output Type: RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature: -40C° ~ +85C °
Mounting Type: Horizontal /vertical
Resolution (Bits): 0.01
Size / Dimension: L72*47* H22.5mm
Interface: Serial
Technology: MEMS
Voltage - Input: DC9-36V
Application: Industrial Automation
Dynamic Sensor Wide Voltage Input: DC9~36V
Protection Class: IP67
High Resolution: 0.01°
Highly Anti-vibration Performance: >2000g
Zero Temperature Coefficient: ±0.01 °/℃
Sensitivity Temperature Coefficient: ≤100ppm/℃
Power On Time: 1s
Response Time: 0.01s
Static Accuracy: ± 0.05°
Dynamic Accuracy: ± 0.3°
High Light:

10 axis Dynamic Inclinometer

,

vertical mounting Dynamic Inclinometer

,

CAN2.0 mems IMU Sensor

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436T-CAN2.0B
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 5000/pcs
Product Description





HDA536T
Condition
                                                             Index


Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)


Measuring axis
/
    X axis / Y axis / Z axis


Resolution

0.01°


Static accuracy
@25℃
± 0.05°


Dynamic accuracy
@25℃
± 0.1°


Bias Instability (Allan)

8°/h


Zero point temp. coefficient
-40~85°
±0.01°/℃


Sensitivity temp. coefficient
-40~85°
≤100ppm/℃


Power-on startup time
                          1S



Response time
                          0.01S



Output signal
                          RS485/RS232/TTL



Electromagnetic compatibility
                           According to EN61000 and GBT17626



MTBF
                             ≥ 50000 hours / time



Insulation resistance
                             ≥100 Megohm



Impact resistance
                          100g @ 11ms, Triaxial and identical (half sine wave)



Anti- vibration
10grms,10~1000Hz



Protection grade
IP67



Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g



Weight
295g (excluding cable)








▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9 ~ 36V wide voltage input
★ Wide temperature operation -40 ~ + 85 ℃ ★ Resolution 0.01 °
★ IP67 protection level ★ High anti-vibration performance> 2000g
★ Size: L72XC47X H22.5mm


▶ APPLICATION

★ Satellite search satellites
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Radar vehicle platform detection
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Satellite communication vehicle attitude detection ★ Initial firing angle measurement of artillery barrel ★ Orientation measurement based on inclination angle ★ Various engineering machinery inclination measurement
Vertical Mounting Dynamic Inclinometer 10 Axis CAN2.0 MEMS IMU Sensor 0
Vertical Mounting Dynamic Inclinometer 10 Axis CAN2.0 MEMS IMU Sensor 1

FAQ

Q:  How to choose suitable products before ordering? A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price. Q:  What's kind of payment methods ? A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible. Q: How about lead time for order ? A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay. Q:  How about quality inspection before shipment ? We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment . Q: What's the transportation methods ? A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder . Q:  How about after-sale service ? A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible. Q: How about product warranty and repair service? A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a reasonable fee according to the actual situation.

Vertical Mounting Dynamic Inclinometer 10 Axis CAN2.0 MEMS IMU Sensor 2


Q:  Are the samples available free of charge? A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding . Wish a pleasant cooperation with you !
