Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: SDA126T-Modbus
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Price: $130.00/Pieces
Packaging Details: CARTON
Delivery Time: 7 days for sample order
Payment Terms: T/T, Paypal
Supply Ability: 10000 pcs/month
Usage: |
Magnetic Sensor |
Theory: |
Inductance Sensor |
Output: |
Digital Sensor |
Product Name: |
Dynamic-Static Dual Mode Inclinometer |
Measuring Axis: |
X/Y |
Power Supply: |
DC 9~36V |
Measuring Range: |
±1~±90° |
Output: |
MODBUS |
Static Accuracy: |
0.02 |
Dynamic Accuracy: |
0.3 |
Anti-vibration: |
>2000g |
Protection Class: |
IP67 |
Size: |
72.62*42*23.1mm |
Usage: |
Magnetic Sensor |
Theory: |
Inductance Sensor |
Output: |
Digital Sensor |
Product Name: |
Dynamic-Static Dual Mode Inclinometer |
Measuring Axis: |
X/Y |
Power Supply: |
DC 9~36V |
Measuring Range: |
±1~±90° |
Output: |
MODBUS |
Static Accuracy: |
0.02 |
Dynamic Accuracy: |
0.3 |
Anti-vibration: |
>2000g |
Protection Class: |
IP67 |
Size: |
72.62*42*23.1mm |
Technical Data:
| SDA116T/SDA126T | CONDITIONS | PARAMETERS | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measure axis | X/XY | X/XY | X/XY | X/XY | AXIS | |
| Resolution | 0.01 | 0.01 | 0.01 | 0.01 | ° | |
| Measure Accuracy | @25℃ | 0.05 | 0.05 | 0.05 | 0.05 | ° |
| Long term stability | 0.05 | 0.05 | 0.05 | 0.05 | ||
| Zero Temp coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 10Hz,25Hz,50Hz can be setting | |||||
| Output signal | MODBUS | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000hours/times | |||||
| Insulation Resistance | ≥100 mΩ | |||||
| Shockproof | 100g@11ms,3Times/Axis(half sinusoid)) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection glass | IP67, | |||||
| Cables | Standard 1M length,wearproof,grease proofing,wide temperature,Shielded cables 4*0.4mm2, weight ≈40g | |||||
| Weight | 125g(without cable) | |||||

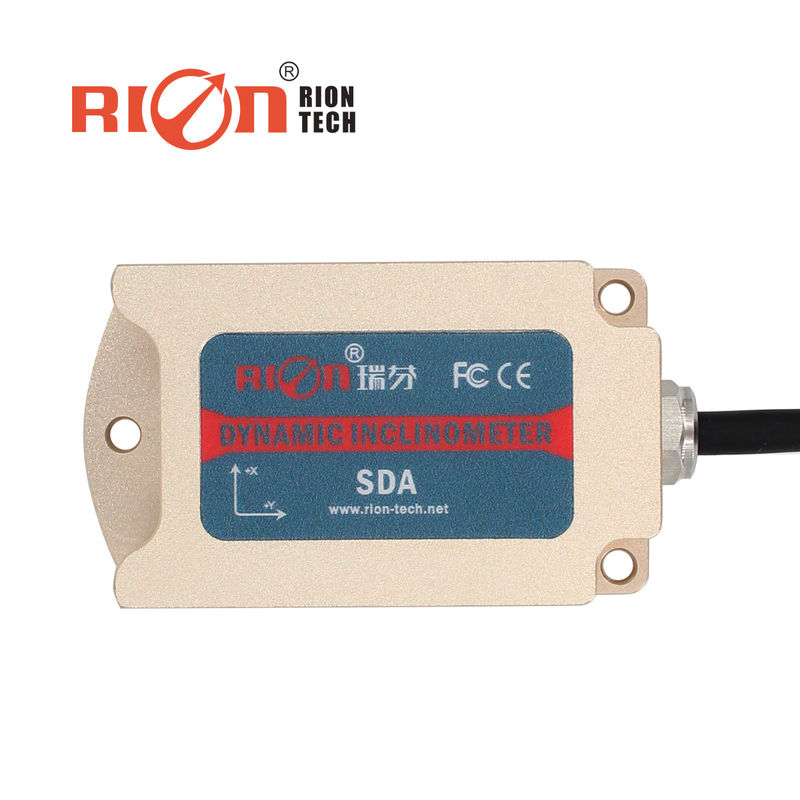

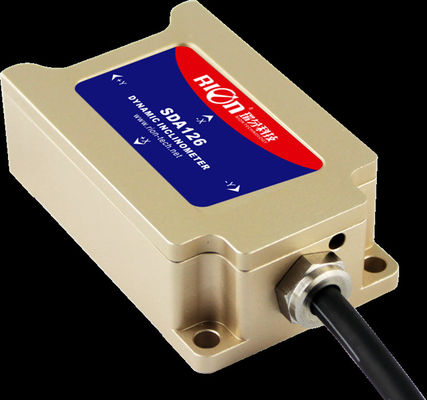

SDA116T/SDA126T is the MODBUS output type dynamic anti-vibration strong dynamic tilt sensor for industrial field control field. Ensure high-precision measurement of products in a variety of working environments. Use RS485 hardware differential bus to transmit data. Built-in high-precision 16bit A/D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane.
Due to the built-in high-precision digital temperature sensor of ADI, the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure the high repeatability of the product in low temperature and high temperature environments. The output response frequency standard can be up to 18Hz. If a higher response frequency is needed, our company can customize it according to the user. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. Suitable for various harsh industrial control environments.
Feature
★ Strong Anti-Vibration Inclinometer
★ Range: ±1～±90° optional
★ IP67
★ Dc 9~36V Power Supply
★ Working Temp: -40~+85℃
★ Resolution: 0.01°
★ Output:Modbus
★ Anti-Vibration: >2000g
★ Direct Lead Wire
Application
★ Leveling of construction vehicles
★ Monitoring of bridges and Dadian
★ Safety protection of high-altitude platforms
★ Medical equipment angle control
★ Underground drilling rig attitude navigation
★ Shield pipe jacking application
★ Based on inclination direction measurement
★ Geological equipment tilt monitoring
★ Mining machinery/oil drilling equipment
★ Equipment level control
★ Alignment control, bending control
