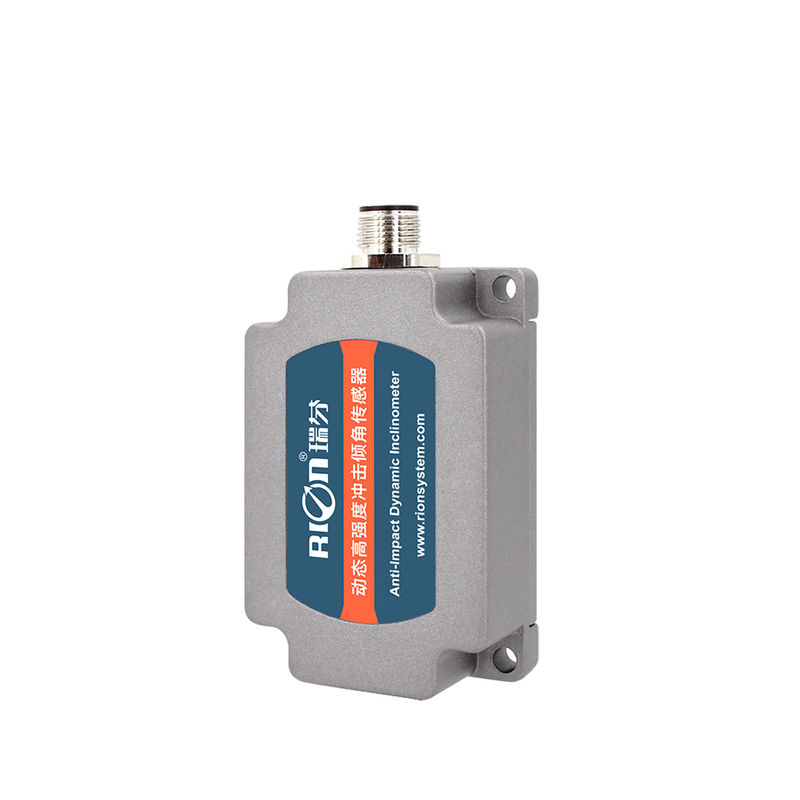

HDA446T DIGITAL OUTPUT DYNAMIC TILT SENSOR RS485/RS232/TTL Output signal

Name: HDA446T DIGITAL OUTPUT DYNAMIC TILT SENSOR RS485/RS232/TTL Output signal
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA436VL-232
Price: 70.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436VL-232

Document: HDA446T DIGITAL OUTPUT DYNA...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $70.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T,PayPal

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Measure Axis:	X Axis / Y Axis / Z Axis	Supply Voltage:	9~36V
Operating Temperature:	-40C° ~ +85C °	Output Signal:	RS485/RS232/TTL
Power-on Startup Time:	≤3.5S	Response Time:	0.01S
MTBF:	≥ 98000 Hours / Time	Insulation Resistance:	≥100 Megohm

Measure Axis:	X Axis / Y Axis / Z Axis
Supply Voltage:	9~36V
Operating Temperature:	-40C° ~ +85C °
Output Signal:	RS485/RS232/TTL
Power-on Startup Time:	≤3.5S
Response Time:	0.01S
MTBF:	≥ 98000 Hours / Time
Insulation Resistance:	≥100 Megohm

Description

HDA446T DIGITAL OUTPUT DYNAMIC TILT SENSOR RS485/RS232/TTL Output signal

Product Attributes

Attribute	Value
Measure axis	X axis / Y axis / Z axis
Supply voltage	9~36V
Operating Temperature	-40C° ~ +85C°
Output signal	RS485/RS232/TTL
Power-on startup time	≤3.5S
Response time	0.01S
MTBF	≥ 98000 hours / time
Insulation resistance	≥100 Megohm

Main Features

Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

Roll&Pitch Dynamic accuracy: ± 0.1°

Static accuracy: ± 0.05°

RS485/232/TTL output Optional

DC 9~36V wide voltage input

Wide temperature operation -40~+85℃

IP67/IP68 Protection level Optional

Application Fields

High vibration impact gravel equipment

Railway locomotive monitoring

Satellite communication vehicle attitude detection

Shield pipe jacking application

Geological equipment tilt monitoring

Underground drilling rig attitude navigation

Ship navigation attitude measurement

Orientation measurement based on inclination angle

Oil drilling equipment

Various engineering machinery inclination measurement

Product Description

HDA446T is a new generation of digital MEMS dynamic tilt sensor. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and is suitable for tilt angle measurement under motion or vibration.

HDA446T has a built-in high-precision acceleration and gyro sensor, and integrates the Kalman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / RS232 / TTL are optional, and the scalability is strong.

This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces.

Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements work in places and harsh environments.

The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference. It is suitable for all kinds of large-scale and high-strength shock and vibration industrial environments, and is an ideal choice for industrial automation control and measurement of attitude.

Technical Specifications

HDA446T
Measure range	-	Roll±180°, pitch±90°, azimuth±180° (initial value at power-down is 0°)
Measure axis	-	X axis / Y axis / Z axis
Roll&Pitch Static accuracy¹⁾	@25℃	± 0.05°
Roll&Pitch Dynamic accuracy (rms)	@25℃	± 0.1°
Gyro range	-	±300°/s
Zero bias stability (10s Smooth)	-	8.5°/h
Angle random walk coefficient (Allan)	-	0.25°/sqrt(h)
Acceleration range	-	±4g/±16g Can be set
Bias stability (10s mean)	-	0.02mg
Bias instability (Allan)	-	0.005mg
Speed random walk coefficient (Allan)	-	0.005m/s/sqrt(h)
Zero point temp. Coefficient²⁾	-40～85℃	±0.01°/℃
Sensitivity temp. Coefficient³⁾	-40～85℃	≤100ppm/℃
Power-on startup time	≤3.5S
Response time	0.01S
Output signal	RS485/RS232/TTL
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥98000 hours / time
Insulation resistance	≥100 Megohm
Impact resistance	100g @ 11ms, 3 axial direction (half sinusoid)
Anti-vibration	10grms/10～1000Hz
Waterproof level	Standard IP67, optional IP68 and corrosion-resistant IP68 protection level
Cable	Standard 2-meter M12 aviation plug with PVC shielded cable, wire weight ≤ 120g
Weight	≤165g (Without cable)

¹⁾Accuracy: refers to the root mean square difference between the measured and actual angle value by multiple measurements (>16 times) under normal temperature.
²⁾Zero temp.drift coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
³⁾Sensitivity temp.drift coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

Product Images
