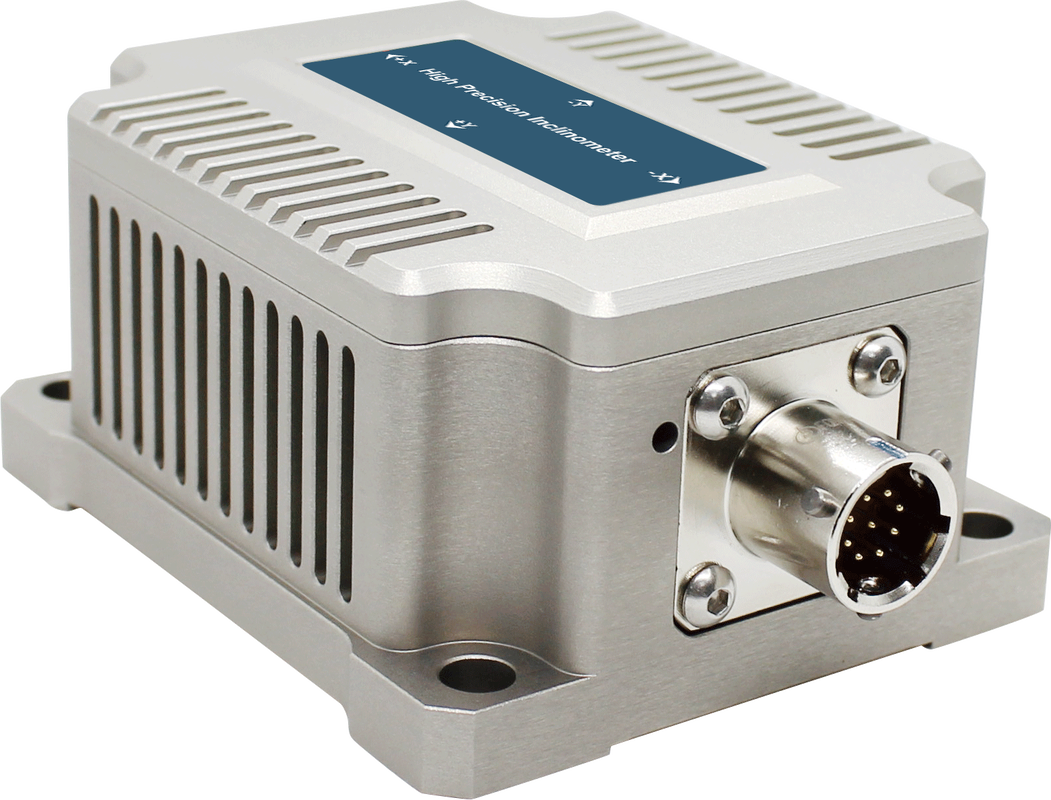

PDA826FL High-Precision Inclinometer for Wind Turbine Tilt Monitoring

PDA826FL Dual axis tilt angle sensor.pdf

APPLICATION FIELD

• Wind power monitoring
• Bridge and Dam monitoring
• Ancient building monitoring
• High-speed rail track monitoring
• Ground satellite communication vehicles
• Railway gauge ruler and gauge leveling
• Satellite communication vehicle
• Geological equipment tilt monitoring
• Engineering vehicle leveling

MAIN FEATURES

• Dual axis inclination measurement
• Range ±10°
• Horizontal Installation
• DC 9～36V wide voltage input
• Wide temperature operation -40～+85℃
• Resolution 0.0005°
• Wide temperature operation -40～+85℃
• Good low-frequency characteristics
• Output options: RS485, RS422, RS232 (optional)

SPECIFICATIONS

ELECTRICAL PARAMETERS

WORKING PRINCIPLE OF TILT ANGLE

Adopting imported core control unit and utilizing the principle of capacitive micro pendulum. Using the principle of Earth's gravity, when the tilt unit tilts, the Earth's gravity will produce a component of gravity on the corresponding pendulum, and the corresponding capacitance will change. By amplifying, filtering, and converting the capacitance, the tilt angle can be obtained.

INSTALLATION PRECAUTION

Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":

1. The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.
2. The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.

INSTALLATION

During installation, the sensor installation surface should be kept parallel to the measured target surface to reduce the impact of dynamics and acceleration on the sensor; Please refer to the following diagram for installation instructions:
