HDA436T 2 Axis CAN2.0 Dynamic Inclinometer For Satellite Search Satellites

1
MOQ
$161.00/Pieces
Price
HDA436T 2 Axis CAN2.0 Dynamic Inclinometer For Satellite Search Satellites
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: MEMS
Brand: Dual Axis Inclinometer
Voltage - Supply: DC9-3V
Output Type: RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature: -40C° ~ +85C °
Mounting Type: Horizontal /vertical
Resolution (Bits): 0.01
Size / Dimension: L72*47* H22.5mm
Technology: MEMS
Protection Class: IP67
High Resolution: 0.01°
Highly Anti-vibration Performance: >2000g
Zero Temperature Coefficient: ±0.01 °/℃
Sensitivity Temperature Coefficient: ≤100ppm/℃
Power On Time: 1s
Response Time: 0.01s
Static Accuracy: ± 0.05°
Dynamic Accuracy: ± 0.3°
High Light:

CAN2.0 Satellite Dynamic Inclinometer

,

2 Axis Dynamic Inclinometer

,

HDA436T Dual Axis Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436T-CAN2.0
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 5000/month
Product Description
HDA436T 2 axis Dynamic CAN2.0 Inclinometer for Satellite search satellites



▶ PRODUCT DESCRIPTION

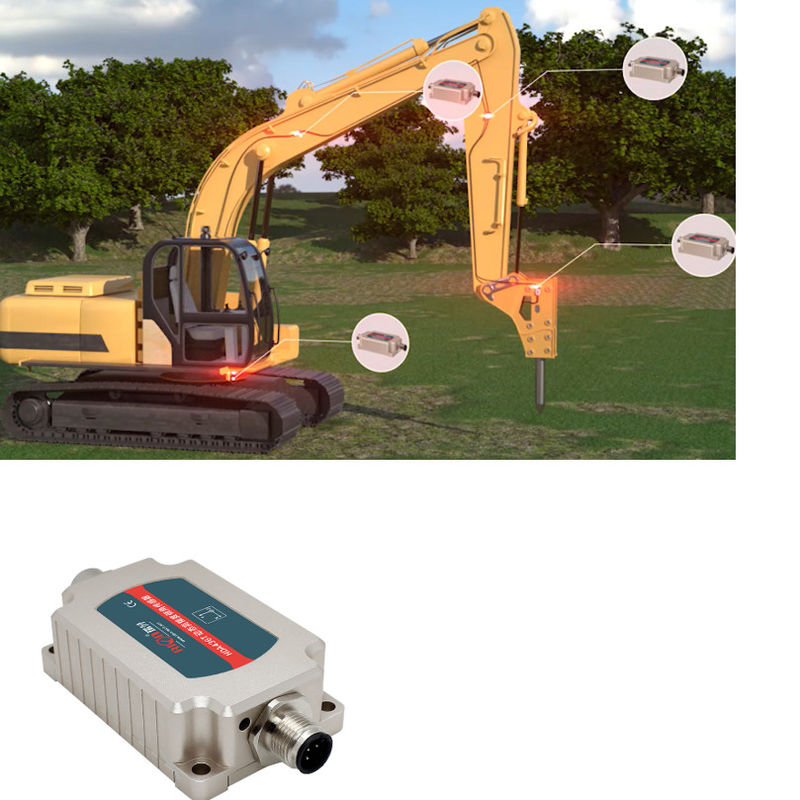

CAN2.0 Dynamic Sensor for Excavators Angle Measuring


It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.


▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9 ~ 36V wide voltage input
★ Wide temperature operation -40 ~ + 85 ℃
★ Resolution 0.01 °
★ IP67 protection level
★ High anti-vibration performance> 2000g



▶ APPLICATION

★ Satellite search satellites
★ Railway locomotive monitoring
★ Oil drilling equipment
★ Shield pipe jacking application
★ Radar vehicle platform detection


HDA436T 2 Axis CAN2.0 Dynamic Inclinometer For Satellite Search Satellites 0
HDA536T
Condition
                                                             Index


Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)


Measuring axis
/
    X axis / Y axis / Z axis


Resolution

0.01°


Static accuracy
@25℃
± 0.05°


Dynamic accuracy
@25℃
± 0.1°


Bias Instability (Allan)

8°/h


Zero point temp. coefficient
-40~85°
±0.01°/℃


Sensitivity temp. coefficient
-40~85°
≤100ppm/℃


Power-on startup time
                          1S



Response time
                          0.01S



Output signal
                          RS485/RS232/TTL



Electromagnetic compatibility
                           According to EN61000 and GBT17626



MTBF
                             ≥ 50000 hours / time



Insulation resistance
                             ≥100 Megohm



Impact resistance
                          100g @ 11ms, Triaxial and identical (half sine wave)



Anti- vibration
10grms,10~1000Hz



Protection grade
IP67



Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g



Weight
295g (excluding cable)






HDA436T 2 Axis CAN2.0 Dynamic Inclinometer For Satellite Search Satellites 2
HDA436T 2 Axis CAN2.0 Dynamic Inclinometer For Satellite Search Satellites 4


Q:  Are the samples available free of charge? A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding . Wish a pleasant cooperation with you !
