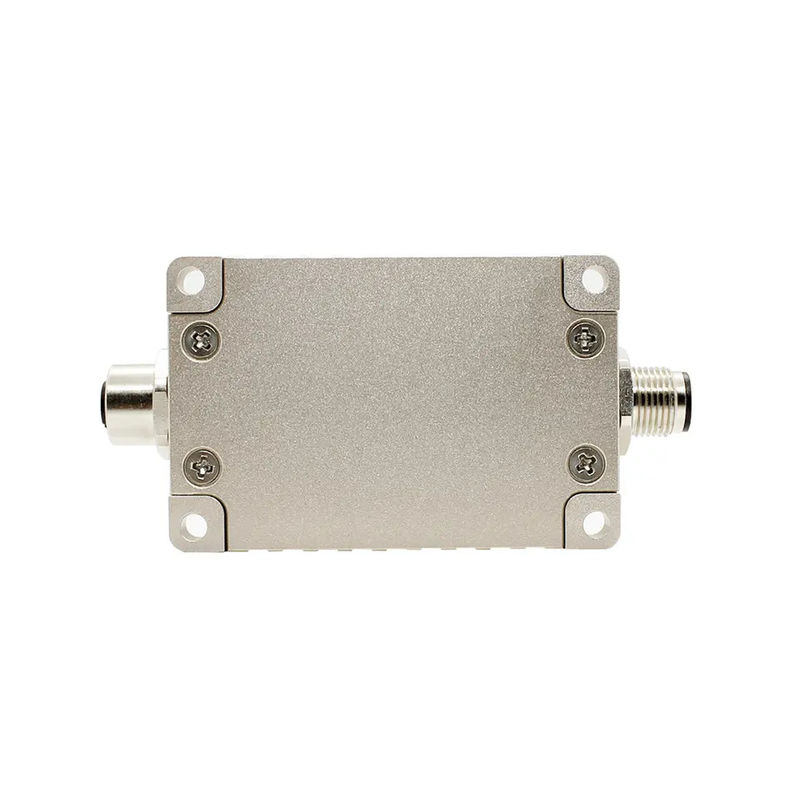

Anti Impact Dynamic Inclinometer High Accuracy Canbus Tilt Sensor

1
MOQ
$128/Pieces
Price
Anti Impact Dynamic Inclinometer High Accuracy Canbus Tilt Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Measure Range: Roll ± 180 °, Pitch ± 90 °, Azimuth ± 180 ° (initial Value At Power-down Is 0 °)
Power Supply: 9~36v
Dynamic Accuracy: 0.1deg
Resolution: 0.01deg
Static Accuracy: 0.05deg
Acceleration Range: ±8g
Gyro Range: ±250°/s
Output Signal: CAN2.0A/CAN2.0B
High Light:

anti impact dynamic inclinometer

,

high accuracy dynamic inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE, FCC,ROHS , ISO
Model Number: HDA437T-CANbus
Payment & Shipping Terms
Packaging Details: box
Delivery Time: 5-7 days
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Product Description

HDA437T Anti-Impact Dynamic Inclinometer High Accuracy CANbus Tilt Sensor China Manufacturer



Datasheet download through click here ...

HDA436T HIGH-PRECISION DYNAMIC TILT SENSOR FOR CRA...




▶ KEY FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9~36V wide voltage input
★ Wide temperature operation -40~+ 85 ℃
★ Resolution 0.01 °
★ CAN2.0A/CAN2.0B output Optional
★ High anti-vibration performance> 2000g
★ IP67/IP67 Protection level Optional

PRODUCT APPLICATION

★ High vibration impact crushing equipment
★ Satellite antenna star search
★ Underground drilling rig attitude navigation
★ Railway locomotive monitoring
★ Geological equipment tilt monitoring
★ Oil drilling equipment
★ Ship navigation attitude measurement
★ Shield pipe jacking application
★ Satellite communication vehicle attitude detection
★ Various engineering machinery inclination measurement




▶ PRODUCT DESCRIPTION

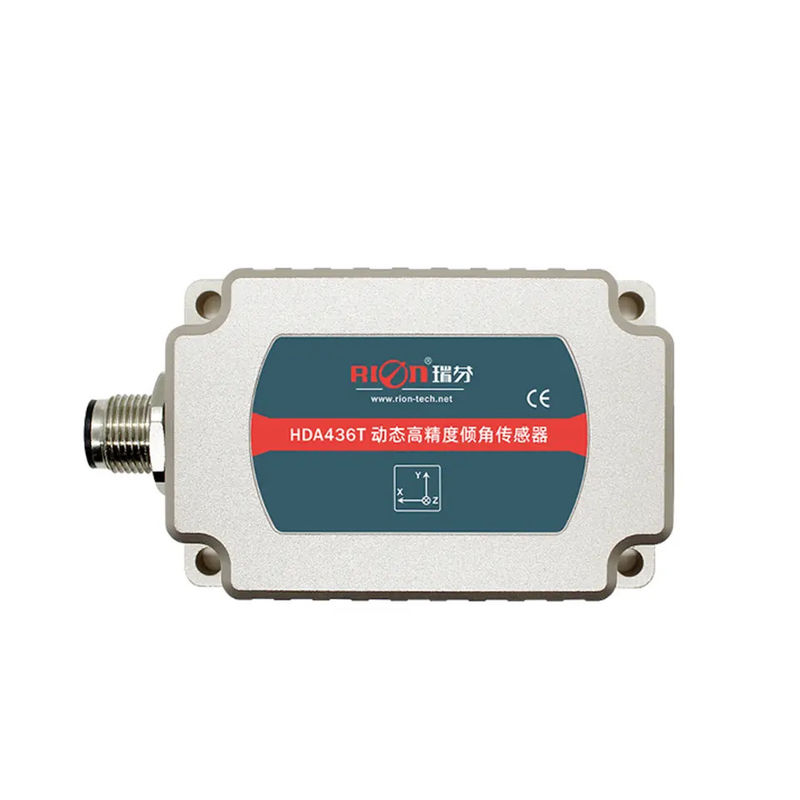

HDA436T/HDA437T A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.
HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The product has dual CAN (CAN2.0A / CAN2.0B) mode, which is highly scalable.


▶ SPECIFICATIONS


Anti Impact Dynamic Inclinometer High Accuracy Canbus Tilt Sensor 0HDA436T/HDA437T-C2/C3 Condition Index
Measure range

Roll ± 180 °, pitch ± 90 °, azimuth ± 180 °

(initial value at power-down is 0 °)

Measure axis   X axis / Y axis / Z axis
Resolution   0.01°
Static accuracy @25℃ ± 0.05°
Dynamic accuracy @25℃ ± 0.1°

Gyro



range - ±250°/s
Zero bias stability (10s mean) - 8.5°/h
Zero Bias Instability(allan) - 4.5°/h
Angle random walk coefficient(allan) - 0.25°/sqrt(h)

Acceleration



range - ±8g
Bias stability(10s mean) - 0.02mg
Bias instability(allan) - 0.005mg
Speed random walk coefficient(allan) - 0.005m/s/sqrt(h)
Zero point temp. coefficient -40~85℃ ±0.01°/℃
Sensitivity temp. coefficient -40~85℃ ≤100ppm/℃
Power-on startup time 1S
Response time 0.01S
Output signal CAN2.0A/CAN2.0B
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms, 3 axial direction (half sinusoid)
Anti-vibration 10grms,10~1000Hz
Waterproof level

standard configuration: IP67

optional configuration: IP68 or IP68 with anti-corrosion cable

Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight Single connector ≤165g / double connector ≤180g (Without cable)










INSTALLATION METHOD

Anti Impact Dynamic Inclinometer High Accuracy Canbus Tilt Sensor 1
