High-Precision 0.01° Dynamic Inclinometer for Accurate Measuring and Analysis



High Precision 0.01 Degree Dynamic Inclinometer For Accurate Measuring And Analysis 0


PRODUCT DESCRIPTION

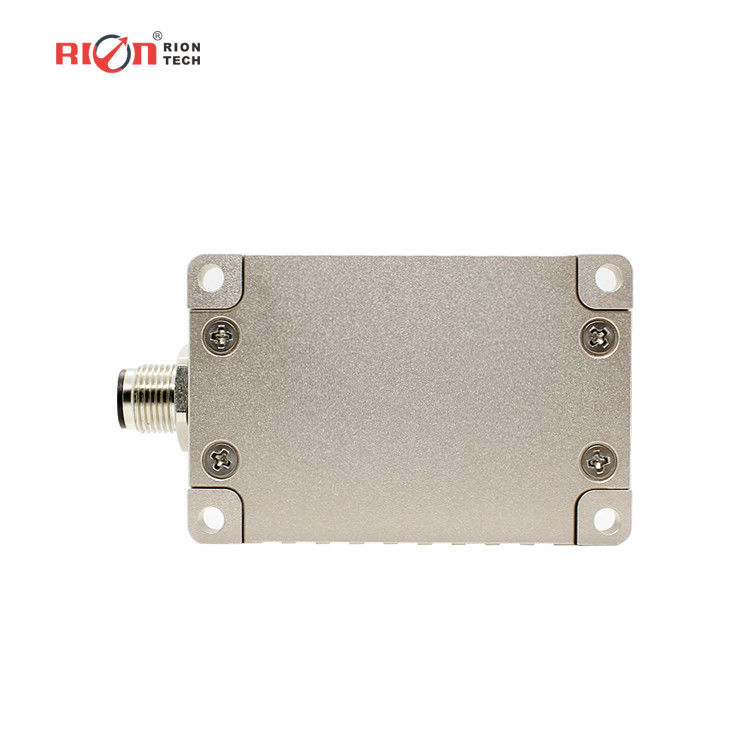

HDA436T/HDA437T A new generation of digital MEMS dynamic tilt sensor launched by RION
Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and
suitable for tilt angle measurement under motion or vibration.HDA436T has a built-in high-precision
acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the
real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 /
RS232 / TTL are optional, and the scalability is strong.
This product adopts non-contact measuring principle, which can output the current attitude and
inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two
surfaces.Internally integrated high-precision AD and high-precision gyro units to compensate for
non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly
eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic
measurement accuracy; adapt to long-term complex movements Work in places and harsh
environments.The product is a dynamic and static dual-mode measurement sensor with strong
resistance to external electromagnetic interference.It is suitable for all kinds of large-scale and
high-strength shock and vibration industrial environments, and is an ideal choice for industrial automation
control and measurement of attitude.

KEY FEATURES

★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
★ Dynamic accuracy: ± 0.1°
★ Static accuracy: ± 0.05°
★ RS485/232/TTL output Optional
★ Wide temperature operation -40~+ 85℃
★ DC 9~6V wide voltage input
★ Resolution 0.01°
★ IP67/IP68 Protection level Optional

PRODUCT APPLICATION

★ High vibration impact gravel equipment
★ Railway locomotive monitoring
★ Oil drilling equipment
★ Shield pipe jacking application
★ Shield pipe jacking application
★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation
★ Ship navigation attitude measurement


High Precision 0.01 Degree Dynamic Inclinometer For Accurate Measuring And Analysis 1


▶ SPECIFICATIONS


High Precision 0.01 Degree Dynamic Inclinometer For Accurate Measuring And Analysis 2HDA436TCONDITIONINDEX
Measure range-

Roll ±180°, pitch ±90°, azimuth ±180°

(initial value at power-down is 0°)

Measure axis-X axis / Y axis / Z axis
Resolution-0.01°
Static accuracy@25℃± 0.05°
Dynamic accuracy(RMS)@25℃± 0.1°
Gyrorange-±250°/s
Zero bias stability (10s mean)-8.5°/h
Zero Bias Instability(allan)-4.5°/h
Angle random walk coefficient(allan)-0.25°/sqrt(h)
Accelerationrange-±8g
Bias stability(10s mean)-0.02mg
Bias instability(allan)-0.005mg
Speed random walk coefficient(allan)-0.005m/s/sqrt(h)
Zero point temp. coefficient-40~85℃±0.01°/℃
Sensitivity temp. coefficient-40~85℃≤100ppm/℃
Power-on startup time1S
Response time0.01S
Output signalRS485/RS232/TTL
Electromagnetic compatibilityAccording to EN61000 and GBT17626
MTBF≥ 98000 hours / time
Insulation resistance≥100 Megohm
Impact resistance100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration10grms,10~1000Hz
Waterproof level

standard configuration: IP67

optional configuration: IP68 or IP68 with anti-corrosion cable

CableStandard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight≤165g (excluding cables)
