Product Description

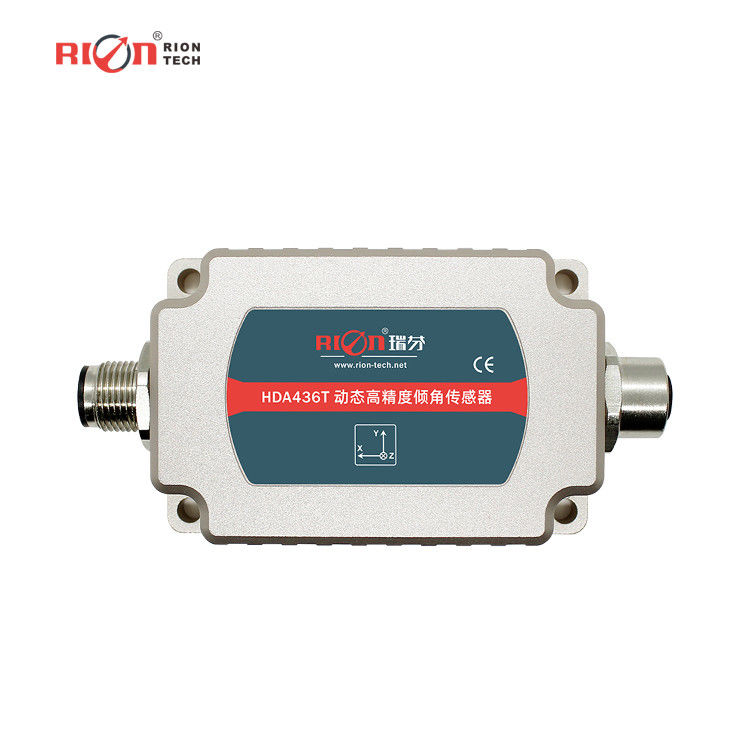

High Accuracy 0.1° Dynamic CANBUS Inclinometer for -40℃~+85℃ Storage with TXT Data Format





Click here below for download the datasheet of HDA436T-CAN2.0



HDA436T-CANBUS HIGH-PRECISION DYNAMIC TILT SENSOR...

0.1 Degree Dynamic CANBUS High Accuracy Inclinometer -40C-+85C Storage 0



0.1 Degree Dynamic CANBUS High Accuracy Inclinometer -40C-+85C Storage 1



▶ PRODUCT DESCRIPTION
HDA436T/HDA437T A new generation of digital MEMS dynamic tilt sensor launched by RION
Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and
suitable for tilt angle measurement under motion or vibration.
HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter
algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The
product has dual CAN (CAN2.0A / CAN2.0B) mode, which is highly scalable.
This product adopts non-contact measuring principle, which can output the current attitude and
inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two
surfaces.
Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear,
orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate
centrifugal errors caused by motion acceleration interference, improve product dynamic measurement
accuracy; adapt to long-term complex movements Work in places and harsh environments.
The product is a dynamic and static dual-mode measurement sensor with strong resistance to external
electromagnetic interference.It is suitable for all kinds of large-scale and high-strength shock and
vibration industrial environments, and is an ideal choice for industrial automation control and
measurement of attitude.

▶ KEY FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9~36V wide voltage input
★ Wide temperature operation -40~+ 85 ℃
★ Resolution 0.01 °
★ CAN2.0A/CAN2.0B output Optional
★ High anti-vibration performance> 2000g
★ IP67/IP67 Protection level Optional

▶ PRODUCT APPLICATION

★ High vibration impact gravel equipment
★ Railway locomotive monitoring
★ Oil drilling equipment
★ Shield pipe jacking application
★ Shield pipe jacking application
★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation
★ Ship navigation attitude measurement
★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement


0.1 Degree Dynamic CANBUS High Accuracy Inclinometer -40C-+85C Storage 2



SPECIFICATIONS


0.1 Degree Dynamic CANBUS High Accuracy Inclinometer -40C-+85C Storage 3HDA436T Condition Index
Measure range

Roll ± 180 °, pitch ± 90 °, azimuth ± 180 °

(initial value at power-down is 0 °)

Measure axis   X axis / Y axis / Z axis
Resolution   0.01°
Static accuracy @25℃ ± 0.05°
Dynamic accuracy @25℃ ± 0.1°

Gyro



range - ±250°/s
Zero bias stability (10s mean) - 8.5°/h
Zero Bias Instability(allan) - 4.5°/h
Angle random walk coefficient(allan) - 0.25°/sqrt(h)

Acceleration



range - ±8g
Bias stability(10s mean) - 0.02mg
Bias instability(allan) - 0.005mg
Speed random walk coefficient(allan) - 0.005m/s/sqrt(h)
Zero point temp. coefficient -40~85℃ ±0.01°/℃
Sensitivity temp. coefficient -40~85℃ ≤100ppm/℃
Power-on startup time 1S
Response time 0.01S
Output signal CAN2.0A/CAN2.0B
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms, 3 axial direction (half sinusoid)
Anti-vibration 10grms,10~1000Hz
Waterproof level

standard configuration: IP67

optional configuration: IP68 or IP68 with anti-corrosion cable

Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight Single connector ≤165g / double connector ≤180g (Without cable)







▶ ELECTRICAL PARAMETERS



0.1 Degree Dynamic CANBUS High Accuracy Inclinometer -40C-+85C Storage 4PARAMETER CONDITION MIN TYP MAX UNIT
Supply voltage standard 9 12 24 36 V
Working current without load   60mA(12V)   mA
Operating temp   -40   +85
storage temp   -40   +85
