Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436T-CAN2.0
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $141.00/Pieces
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Usage: |
Crane Tilt Sensor |
Theory: |
Dynamic Angle Tilt Sensor |
Output: |
CAN2.0 |
Voltage - Supply: |
9~36v |
Operating Temperature: |
-40C° ~ +85C ° |
Protection Class: |
IP67 |
Highly Anti-vibration Performance: |
>2000g |
Sensitivity Temperature Coefficient: |
≤100ppm/℃ |
Response Time: |
0.01s |
Static Accuracy: |
± 0.05° |
Usage: |
Crane Tilt Sensor |
Theory: |
Dynamic Angle Tilt Sensor |
Output: |
CAN2.0 |
Voltage - Supply: |
9~36v |
Operating Temperature: |
-40C° ~ +85C ° |
Protection Class: |
IP67 |
Highly Anti-vibration Performance: |
>2000g |
Sensitivity Temperature Coefficient: |
≤100ppm/℃ |
Response Time: |
0.01s |
Static Accuracy: |
± 0.05° |
anti-vibraiton angle tilt sensor from crane can2.0 output
| HDA436T | CONDITION | INDEX |
| Measure range | Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°) | |
| Measure axis | X axis / Y axis / Z axis | |
| Resolution | 0.01° | |
| Static accuracy | @25℃ | ± 0.05° |
| Dynamic accuracy | @25℃ | ± 0.1° |
| Bias Instability (Allan) | 8°/h | |
| Zero point temp. coefficient | -40～85℃ | ±0.01°/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100ppm/℃ |
| Power-on startup time | 1S | |
| Response time | 0.01S | |
| Output signal | RS485/RS232/TTL | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥ 50000 hours / time | |
| Insulation resistance | ≥100 Megohm | |
| Impact resistance | 100g @ 11ms,3 axial direction (half sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Waterproof level | IP67 | |
| Cable | Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable | |
| Weight | ≤165g (excluding cables) | |
▶ PRODUCT DESCRIPTION

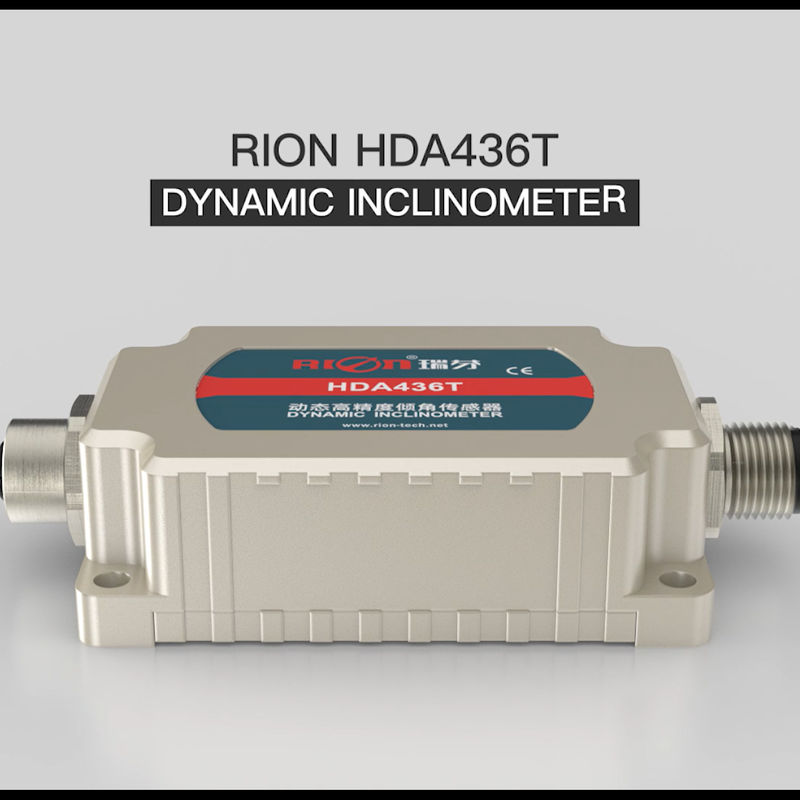

HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology.
It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for
tilt angle measurement under motion or vibration.
HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter
algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The
signal output modes such as RS485 / RS232 / TTL are optional, and the scalability is strong.
This product adopts non-contact measuring principle, which can output the current attitude and
inclination in real time. It is simple to use and does not need to retrieve the relative changes of the
two surfaces.
Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear,
orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate
centrifugal errors caused by motion acceleration interference, improve product dynamic
measurement accuracy; adapt to long-term complex movements Work in places and harsh
environments.
The product is a dynamic and static dual-mode measurement sensor with strong resistance to
external electromagnetic interference. It is an ideal choice for industrial automation control measurement posture.
▶ KEY FEATURES
★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°) ★ Dynamic accuracy: ± 0.1°
★ DC 9~6V wide voltage input ★ Wide temperature operation -40~+ 85℃
★ Resolution 0.01° ★ IP67 protection level
★ High anti-vibration performance>2000g ★ Size: L72×W47×H22.5mm
▶ PRODUCT APPLICATION
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement
★ Shield pipe jacking application ★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement
▶ ELECTRICAL PARAMETERS
| PARAMETER | CONDITION | MIN | TYP | MAX | UNIT |
| Supply voltage | standard | 9 | 12,24 | 36 | V |
| Working current | without load | 60mA(12V) | mA | ||
| Operating temp | -40 | +85 | ℃ | ||
| storage temp | -40 | +85 | ℃ |
