Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436T-CAN2.0B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $141.00/Pieces
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Usage: |
Excavator Tilt Sensor |
Theory: |
Dynamic Tilt Sensor |
Output: |
CAN2.0B |
Voltage - Supply: |
9~36v |
Operating Temperature: |
-40C° ~ +85C ° |
Protection Class: |
IP67 |
Highly Anti-vibration Performance: |
>2000g |
Sensitivity Temperature Coefficient: |
≤100ppm/℃ |
Response Time: |
0.01s |
Static Accuracy: |
± 0.05° |
Usage: |
Excavator Tilt Sensor |
Theory: |
Dynamic Tilt Sensor |
Output: |
CAN2.0B |
Voltage - Supply: |
9~36v |
Operating Temperature: |
-40C° ~ +85C ° |
Protection Class: |
IP67 |
Highly Anti-vibration Performance: |
>2000g |
Sensitivity Temperature Coefficient: |
≤100ppm/℃ |
Response Time: |
0.01s |
Static Accuracy: |
± 0.05° |

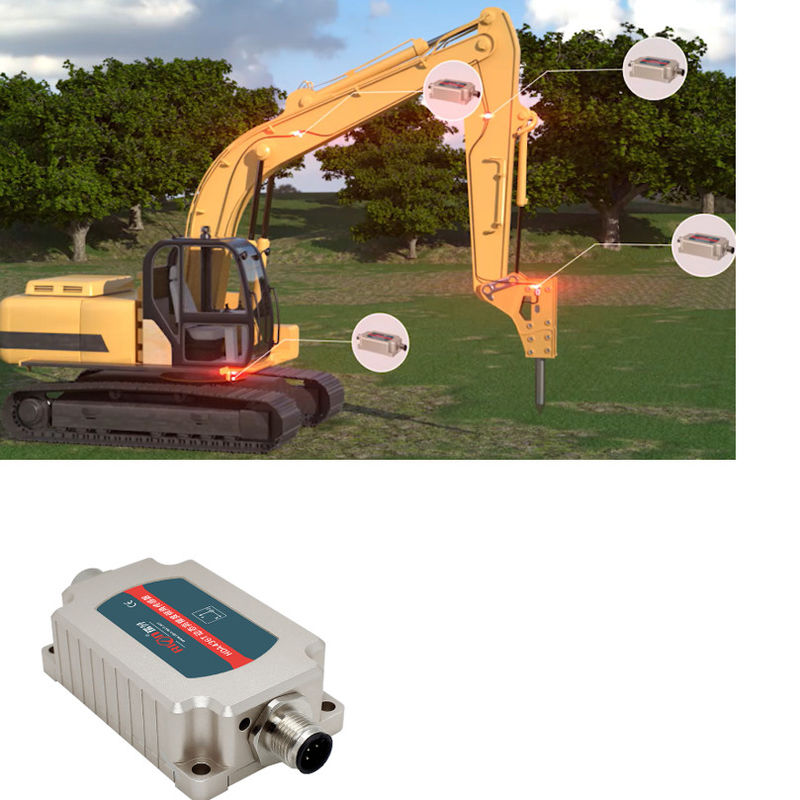

excavator tilt sensor
RION QUALIFICATION CERTIFICATION
○ Enterprise quality system standard: ISO9001: 2015 standard (certification No.: 128101)
○ High-tech enterprise (Certificate No.: GR201844204379)
○ CE certification: registration No.:AT18250EC001210
○ Revision date: 2022-3-30
Note: Product functions, parameters, appearance, etc. will be adjusted as the technology upgrades. Please contact our pre-sales business to confirm when purchasing.
| HDA436T | CONDITION | INDEX |
| Measure range | Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°) | |
| Measure axis | X axis / Y axis / Z axis | |
| Resolution | 0.01° | |
| Static accuracy | @25℃ | ± 0.05° |
| Dynamic accuracy | @25℃ | ± 0.1° |
| Bias Instability (Allan) | 8°/h | |
| Zero point temp. coefficient | -40～85℃ | ±0.01°/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100ppm/℃ |
| Power-on startup time | 1S | |
| Response time | 0.01S | |
| Output signal | RS485/RS232/TTL | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥ 50000 hours / time | |
| Insulation resistance | ≥100 Megohm | |
| Impact resistance | 100g @ 11ms,3 axial direction (half sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Waterproof level | IP67 | |
| Cable | Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable | |
| Weight | ≤165g (excluding cables) | |
▶ KEY FEATURES
★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
★ Dynamic accuracy: ± 0.1°
★ DC 9~6V wide voltage input
★ Wide temperature operation -40~+ 85℃
★ Resolution 0.01°
★ IP67 protection level
★ High anti-vibration performance>2000g
★ Size: L72×W47×H22.5mm
▶ ELECTRICAL PARAMETERS
| PARAMETER | CONDITION | MIN | TYP | MAX | UNIT |
| Supply voltage | standard | 9 | 12,24 | 36 | V |
| Working current | without load | 60mA(12V) | mA | ||
| Operating temp | -40 | +85 | ℃ | ||
| storage temp | -40 | +85 | ℃ |
▶ MECHANICAL PARAMETERS
○ Connector: M12 aviation plug 5P connector
○ Protection level: IP67
○ Shell material: frosted aluminum alloy
○ Installation: Four M4 screws
PRODUCT SIZE
