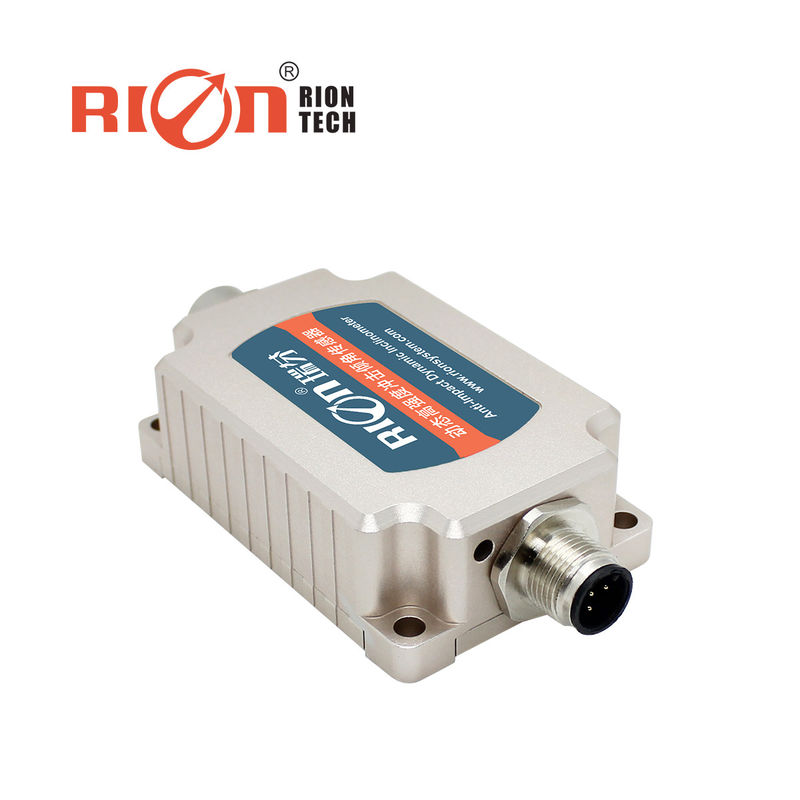

Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

Name: Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA436T-CAN2.0A
Price: 141.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436T-CAN2.0A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $141.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T, PayPal

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  100ppm/Deg Tilt Angle Sensor, IP67 Tilt Angle Sensor, CAN2.0A Dynamic Inclinometer


Usage:	Crane Angle Sensor	Theory:	Dynamic Angle Finder
Output:	CAN2.0A	Voltage - Supply:	9~36v
Output Type:	CAN2.0A, CAN2.0B	Operating Temperature:	-40C° ~ +85C °
Protection Class:	IP67	High Resolution:	0.01°
Highly Anti-vibration Performance:	>2000g	Zero Temperature Coefficient:	±0.01 °/℃
Sensitivity Temperature Coefficient:	≤100ppm/℃	Response Time:	0.01s
Static Accuracy:	± 0.05°

Usage:	Crane Angle Sensor
Theory:	Dynamic Angle Finder
Output:	CAN2.0A
Voltage - Supply:	9~36v
Output Type:	CAN2.0A, CAN2.0B
Operating Temperature:	-40C° ~ +85C °
Protection Class:	IP67
High Resolution:	0.01°
Highly Anti-vibration Performance:	>2000g
Zero Temperature Coefficient:	±0.01 °/℃
Sensitivity Temperature Coefficient:	≤100ppm/℃
Response Time:	0.01s
Static Accuracy:	± 0.05°

Description

Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

crane angle control sensor

▶ ELECTRICAL CONNECTIONS

RS485 WIRING DEFINITION

PIN FUNCTION

1 PIN(BROWN)

2 PIN(WHITE)

3 PIN(BLUE)

4 PIN(BLACK)

5 PIN(GRAY)

9~36V

POSITIVE POWER SUPPLY

485 D+

485 D-

GND

POWER NEGATIVE

Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection 0

RS232/TTLWIRING DEFINITION

PIN FUNCTION

1 PIN(BROWN)

2 PIN(WHITE)

3 PIN(BLUE)

4 PIN(BLACK)

5 PIN(GRAY)

9~36V

POSITIVE POWER SUPPLY

RS232_RX/

TTL_RX

RS232_TX/

TTL_TX

GND

POWER NEGATIVE

Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection 1

HDA436T	CONDITION	INDEX
Measure range		Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°)
Measure axis		X axis / Y axis / Z axis
Resolution		0.01°
Static accuracy	@25℃	± 0.05°
Dynamic accuracy	@25℃	± 0.1°
Bias Instability (Allan)		8°/h
Zero point temp. coefficient	-40～85℃	±0.01°/℃
Sensitivity temp. coefficient	-40～85℃	≤100ppm/℃
Power-on startup time	1S
Response time	0.01S
Output signal	RS485/RS232/TTL
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥ 50000 hours / time
Insulation resistance	≥100 Megohm
Impact resistance	100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration	10grms,10～1000Hz
Waterproof level	IP67
Cable	Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight	≤165g (excluding cables)
