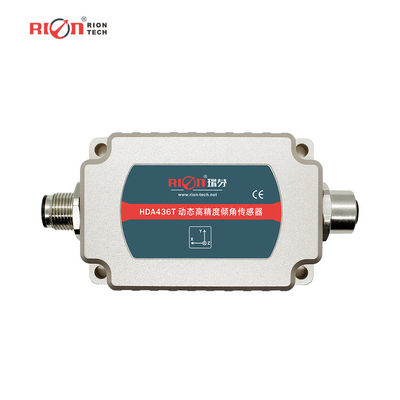

DC24V Dynamic Tilt Sensor Inclinometer With RS232 Output

1
MOQ
$161.00/Pieces
Price
DC24V Dynamic Tilt Sensor Inclinometer With RS232 Output
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Angle Sensor
Theory: Acceleration
Output: RS232
Brand: RION
Voltage - Supply: DC24V
Output Type: RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature: -40C° ~ +85C °
Mounting Type: Screw
Resolution (Bits): 0.01
Protection Class: IP67
High Resolution: 0.01°
Highly Anti-vibration Performance: >2000g
Zero Temperature Coefficient: ±0.01 °/℃
Sensitivity Temperature Coefficient: ≤100ppm/℃
Response Time: 0.01s
Static Accuracy: ± 0.05°
High Light:

Dynamic Tilt Sensor Inclinometer

,

DC24V Tilt Sensor Inclinometer

,

RS232 Output Dynamic Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436T-232-68
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Product Description

sensor inclinometer dynamic measure tilt inclination





▶ APPLICATION

★ Satellite search satellites
★ Shield pipe jacking application
★ Satellite communication vehicle attitude detection
★ Initial firing angle measurement of artillery barrel
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement
★ Geological equipment tilt monitoring







HDA536T
Condition
Index
Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
Measuring axis
/
X axis / Y axis / Z axis
Resolution


0.01°
Static accuracy
@25℃
± 0.05°
Dynamic accuracy
@25℃
± 0.3°
Bias Instability (Allan)


8°/h
Zero point temp. coefficient
-40~85°
±0.01°/℃
Sensitivity temp. coefficient
-40~85°
≤100ppm/℃
Power-on startup time
1S
Response time
0.01S
Output signal
RS485/RS232/TTL
Electromagnetic compatibility
According to EN61000 and GBT17626
MTBF
≥ 50000 hours / time
Insulation resistance
≥100 Megohm
Impact resistance
100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration
10grms,10~1000Hz
Protection grade
IP67
Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
Weight
295g (excluding cable)


DC24V Dynamic Tilt Sensor Inclinometer With RS232 Output 1
DC24V Dynamic Tilt Sensor Inclinometer With RS232 Output 3
Company Introduction
RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is a high technology company that integrates research, development, production and sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses, accelerometer /vibration sensor , Gyro sensor , AHRS, IMU ...etc . These products are widely used in many industrial control fields, such as automobiles, ships, airplanes, railways, medical facilities, dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has established good business relationships with many international famous companies.We adhere to the service guideline of "Client-centered". "Client uppermost, credit first,service best" is our business philosophy. Our company provides accurate, efficient, civilized and complete services for clients.Let us provide you with the best products. To save purchasing cost and time, contact us now.




DC24V Dynamic Tilt Sensor Inclinometer With RS232 Output 5

DC24V Dynamic Tilt Sensor Inclinometer With RS232 Output 6


Q:  Are the samples available free of charge? A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding . Wish a pleasant cooperation with you !
