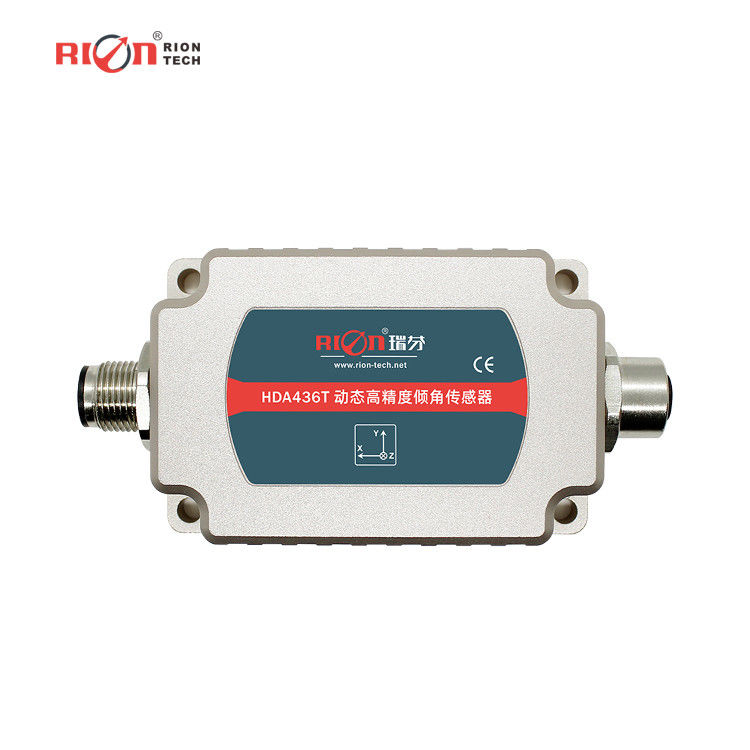

HDA436T DC24V dynamic tilt sensor inclinometer for equipment tilt monitoring

Name: HDA436T DC24V dynamic tilt sensor inclinometer for equipment tilt monitoring
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA436T-232-68
Price: 161.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436T-232-68

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $161.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T, PayPal

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Dynamic Tilt Sensor Inclinometer, DC24V Tilt Sensor Inclinometer, RS232 Output Dynamic Inclinometer


Usage:	Angle Sensor	Voltage - Supply:	DC24V
Resolution (Bits):	0.01	Protection Class:	IP67
High Resolution:	0.01°	Highly Anti-vibration Performance:	>2000g
Zero Temperature Coefficient:	±0.01 °/℃	Sensitivity Temperature Coefficient:	≤100ppm/℃
Response Time:	0.01s	Static Accuracy:	± 0.05°

Usage:	Angle Sensor
Voltage - Supply:	DC24V
Resolution (Bits):	0.01
Protection Class:	IP67
High Resolution:	0.01°
Highly Anti-vibration Performance:	>2000g
Zero Temperature Coefficient:	±0.01 °/℃
Sensitivity Temperature Coefficient:	≤100ppm/℃
Response Time:	0.01s
Static Accuracy:	± 0.05°

Description

HDA436T DC24V dynamic tilt sensor inclinometer for equipment tilt monitoring

HDA436T DC24V dynamic tilt sensor inclinometer for equipment tilt monitoring

▶ APPLICATION

★ Satellite search satellites

★ Shield pipe jacking application

★ Satellite communication vehicle attitude detection

★ Orientation measurement based on inclination angle

★ Various engineering machinery inclination measurement

★ Geological equipment tilt monitoring

HDA536T	Condition	Index
Measuring	/	Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
Measuring axis	/	X axis / Y axis / Z axis
Resolution		0.01°

Static accuracy	@25℃	± 0.05°
Dynamic accuracy	@25℃	± 0.3°
Bias Instability (Allan)		8°/h

Zero point temp. coefficient	-40～85°	±0.01°/℃
Sensitivity temp. coefficient	-40～85°	≤100ppm/℃
Power-on startup time	1S
Response time	0.01S
Output signal	RS485/RS232/TTL
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥ 50000 hours / time
Insulation resistance	≥100 Megohm
Impact resistance	100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration	10grms,10～1000Hz
Protection grade	IP67
Cable	2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
Weight	295g (excluding cable)
