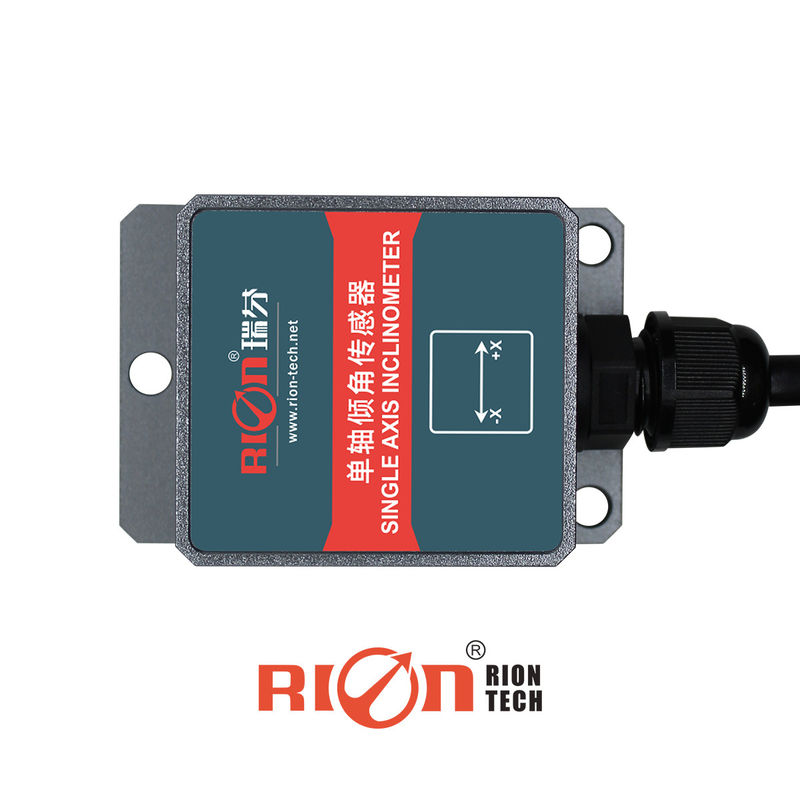

LCA318T 4mA Single Axis Rion Inclinometer sensor Slope Indicator Transducers
LCA318T 4mA Single Axis Rion Inclinometer sensor Slope Indicator Transducers
General Description :
The LCA318T series inclinometer which developed by Rion Company is a small volume MEMSsingle-axis tilt sensor, the output current through an internal secondary linearity correction, is a linearity current output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, long distance transmission can up to over 2000 Meters, strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment.
This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude !
Features
1.Single-Axis Inclinometer
2.Full measuring range anyone within 360° optional
3.Accuracy: refer to the technical data
4.Wide voltage input: 9~36V
5.Output mode: 4~20mA
6.Wide temperature working: -40~+85°C
7.IP67 protection class
8.Highly anti-vibration performance >3500g
9.Resolution: 0.05°
10.Small Volume : 55×37×24mm(customized)
Application:
1.Electric blind man chair leveling
2.Cloud deck operating monitor
3.Satellite antenna positioning
4.Medical equipment leveling
5.Car Chassis Measurement
6.Four - wheeled positioning system
7.engineering mechanical measurement of dip angle
Technial Specification
| LCA318T/328T |
CONDITION |
PARAMETER |
UNIT |
| Measure range |
|
±30 |
±60 |
±90 |
±180 |
0~360 |
° |
| Measure axis |
|
X Y |
X Y |
X Y |
X |
X |
Axis |
| Zero output |
0° output |
12 |
12 |
12 |
12 |
12 |
mA |
| Resolution |
|
0.02 |
0.03 |
0.05 |
0.08 |
0.08 |
° |
| Measure accuracy |
@25℃ |
0.1 |
0.1 |
0.15 |
0.2 |
0.2 |
° |
| Long term. stability |
|
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
|
| Zero Temp.coefficient |
-40～85℃ |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
°/℃ |
| Sensitivity temp-coeffi |
-40～85℃ |
≤150 |
≤150 |
≤150 |
≤150 |
≤150 |
ppm/℃ |
| Power-on start time |
|
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
S |
| Response frequency |
|
20 |
20 |
20 |
20 |
20 |
Hz |
| EMC |
According to EN61000 and GBT17626 |
| MTBF |
≥98000 hours/times |
| Insulation Resistance |
≥100 MΩ |
| Impact resistance |
100g@11ms, 3 Axial Direction (Half Sinusoid) |
| Anti-vibration |
10grms,10～1000Hz |
| Protection grade |
IP67 |
| Cables |
standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2 |
| Weight |
≤135g (including 1 meter cable) |
INSTALLATION DIRECTION
During installation, keep the sensor mounting surface parallel to the target surface to be measured, and reduce the impact of dynamics and acceleration on the sensor. This product can be installed horizontally or vertically, please refer to the following diagram for the installation method:
