Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HDA436VL-232
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Price: $161.00/Pieces
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, PayPal
Supply Ability: 5000/month
Usage: |
Level Sensor |
Theory: |
MEMS |
Output: |
Digital Sensor |
Brand: |
Dual Axis Inclinometer |
Voltage - Supply: |
DC9-3V |
Output Type: |
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional |
Operating Temperature: |
-40C° ~ +85C ° |
Mounting Type: |
Horizontal , Magnetic Based (optional) |
Resolution (Bits): |
0.01 |
Size / Dimension: |
L107*W54*H31mm |
Interface: |
Serial |
Technology: |
MEMS |
Application: |
Industrial Automation |
Inclinometer Wide Voltage Input: |
DC9~36V |
Protection Class: |
IP67 |
High Resolution: |
0.01° |
Highly Anti-vibration Performance: |
>2000g |
Zero Temperature Coefficient: |
±0.01 °/℃ |
Sensitivity Temperature Coefficient: |
≤100ppm/℃ |
Power On Time: |
1s |
Response Time: |
0.01s |
Static Accuracy: |
± 0.05° |
Dynamic Accuracy: |
± 0.3° |
Usage: |
Level Sensor |
Theory: |
MEMS |
Output: |
Digital Sensor |
Brand: |
Dual Axis Inclinometer |
Voltage - Supply: |
DC9-3V |
Output Type: |
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional |
Operating Temperature: |
-40C° ~ +85C ° |
Mounting Type: |
Horizontal , Magnetic Based (optional) |
Resolution (Bits): |
0.01 |
Size / Dimension: |
L107*W54*H31mm |
Interface: |
Serial |
Technology: |
MEMS |
Application: |
Industrial Automation |
Inclinometer Wide Voltage Input: |
DC9~36V |
Protection Class: |
IP67 |
High Resolution: |
0.01° |
Highly Anti-vibration Performance: |
>2000g |
Zero Temperature Coefficient: |
±0.01 °/℃ |
Sensitivity Temperature Coefficient: |
≤100ppm/℃ |
Power On Time: |
1s |
Response Time: |
0.01s |
Static Accuracy: |
± 0.05° |
Dynamic Accuracy: |
± 0.3° |
Three Axis High Accuracy Inclinometer Heading Angle Insulation Resistance Dynamic Inclinometer
▶ PRODUCT DESCRIPTION

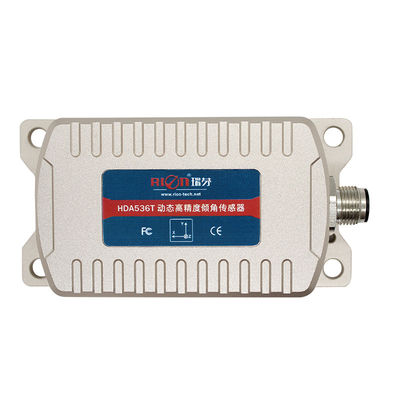

HDA536T
|
Condition
|
Index
|
|
|
|||
Measuring
|
/
|
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
|
|
|
|||
Measuring axis
|
/
|
X axis / Y axis / Z axis
|
|
|
|||
Resolution
|
|
0.01°
|
|
|
|||
Static accuracy
|
@25℃
|
± 0.05°
|
|
|
|||
Dynamic accuracy
|
@25℃
|
± 0.3°
|
|
|
|||
Bias Instability (Allan)
|
|
8°/h
|
|
|
|||
Zero point temp. coefficient
|
-40~85°
|
±0.01°/℃
|
|
|
|||
Sensitivity temp. coefficient
|
-40~85°
|
≤100ppm/℃
|
|
|
|||
Power-on startup time
|
1S
|
|
|
|
|||
Response time
|
0.01S
|
|
|
|
|||
Output signal
|
RS485/RS232/TTL
|
|
|
|
|||
Electromagnetic compatibility
|
According to EN61000 and GBT17626
|
|
|
|
|||
MTBF
|
≥ 50000 hours / time
|
|
|
|
|||
Insulation resistance
|
≥100 Megohm
|
|
|
|
|||
Impact resistance
|
100g @ 11ms, Triaxial and identical (half sine wave)
|
|
|
|
|||
Anti- vibration
|
10grms,10~1000Hz
|
|
|
|
|||
Protection grade
|
IP67
|
|
|
|
|||
Cable
|
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
|
|
|
|
|||
Weight
|
295g (excluding cable)
|
|
|
|
