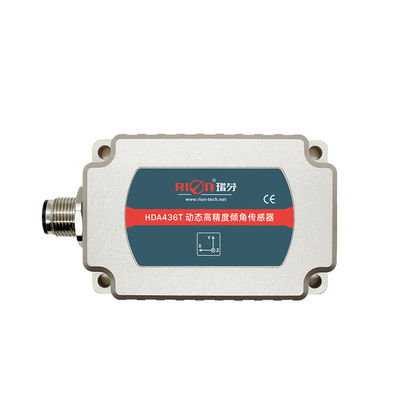

RS422 Anti Vibration Tilt Angle Meter TTL Measurement Sensor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436VL-232-MB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $270.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days

Payment Terms: T/T, Paypal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

RS422 tilt angle meter

,

Anti Vibration tilt angle meter

,

TTL angle measurement sensor

Usage:
Level Sensor
Theory:
MEMS
Output:
Digital Sensor
Brand:
Dual Axis Inclinometer
Voltage - Supply:
DC9-3V
Output Type:
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature:
-40C° ~ +85C °
Mounting Type:
Horizontal , Magnetic Based (optional)
Resolution (Bits):
0.01
Size / Dimension:
L107*W54*H31mm
Interface:
Serial
Technology:
MEMS
Application:
Industrial Automation
Inclinometer Wide Voltage Input:
DC9~36V
Protection Class:
IP67
High Resolution:
0.01°
Highly Anti-vibration Performance:
>2000g
Zero Temperature Coefficient:
±0.01 °/℃
Sensitivity Temperature Coefficient:
≤100ppm/℃
Power On Time:
1s
Response Time:
0.01s
Static Accuracy:
± 0.05°
Dynamic Accuracy:
± 0.3°
Usage:
Level Sensor
Theory:
MEMS
Output:
Digital Sensor
Brand:
Dual Axis Inclinometer
Voltage - Supply:
DC9-3V
Output Type:
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature:
-40C° ~ +85C °
Mounting Type:
Horizontal , Magnetic Based (optional)
Resolution (Bits):
0.01
Size / Dimension:
L107*W54*H31mm
Interface:
Serial
Technology:
MEMS
Application:
Industrial Automation
Inclinometer Wide Voltage Input:
DC9~36V
Protection Class:
IP67
High Resolution:
0.01°
Highly Anti-vibration Performance:
>2000g
Zero Temperature Coefficient:
±0.01 °/℃
Sensitivity Temperature Coefficient:
≤100ppm/℃
Power On Time:
1s
Response Time:
0.01s
Static Accuracy:
± 0.05°
Dynamic Accuracy:
± 0.3°
Description
RS422 Anti Vibration Tilt Angle Meter TTL Measurement Sensor



▶ APPLICATION

★ Satellite search satellites

★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Radar vehicle platform detection
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Satellite communication vehicle attitude detection ★ Initial firing angle measurement of artillery barrel ★ Orientation measurement based on inclination angle ★ Various engineering machinery inclination measurement
HDA536T
Condition
Measuring
/
Measuring axis
/
Resolution

Static accuracy
@25℃
Dynamic accuracy
@25℃
Bias Instability (Allan)

Zero point temp. coefficient
-40~85°
Sensitivity temp. coefficient
-40~85°
Power-on startup time
1S
Response time
0.01S
Output signal
RS485/RS232/TTL
Electromagnetic compatibility
According to EN61000 and GBT17626
MTBF
≥ 50000 hours / time
Insulation resistance
≥100 Megohm
Impact resistance
100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration
10grms,10~1000Hz
Protection grade
IP67
Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
Weight
295g (excluding cable)


RS422 Anti Vibration Tilt Angle Meter TTL Measurement Sensor 1
RS422 Anti Vibration Tilt Angle Meter TTL Measurement Sensor 3
RS422 Anti Vibration Tilt Angle Meter TTL Measurement Sensor 5
RS422 Anti Vibration Tilt Angle Meter TTL Measurement Sensor 7
Company Introduction
RION Technology Co., Ltd. is located in a fantastic city - Shenzhen. Our company is a high technology company that integrates research, development, production and sale, and is mainly engaged in the sale of inclinometer sensors, digital compasses, accelerometer /vibration sensor , Gyro sensor , AHRS, IMU ...etc . These products are widely used in many industrial control fields, such as automobiles, ships, airplanes, railways, medical facilities, dam safety monitoring, oil drilling, coal mining and ocean surveying. Our company has established good business relationships with many international famous companies.We adhere to the service guideline of "Client-centered". "Client uppermost, credit first,service best" is our business philosophy. Our company provides accurate, efficient, civilized and complete services for clients.Let us provide you with the best products. To save purchasing cost and time, contact us now

FAQ
Q:  How to choose suitable products before ordering? A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price. Q:  What's kind of payment methods ? A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible. Q: How about lead time for order ? A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay. Q:  How about quality inspection before shipment ? We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment . Q: What's the transportation methods ? A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder . Q:  How about after-sale service ? A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible. Q: How about product warranty and repair service? A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a reasonable fee according to the actual situation.

Q:  Are the samples available free of charge? A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding . Wish a pleasant cooperation with you !
