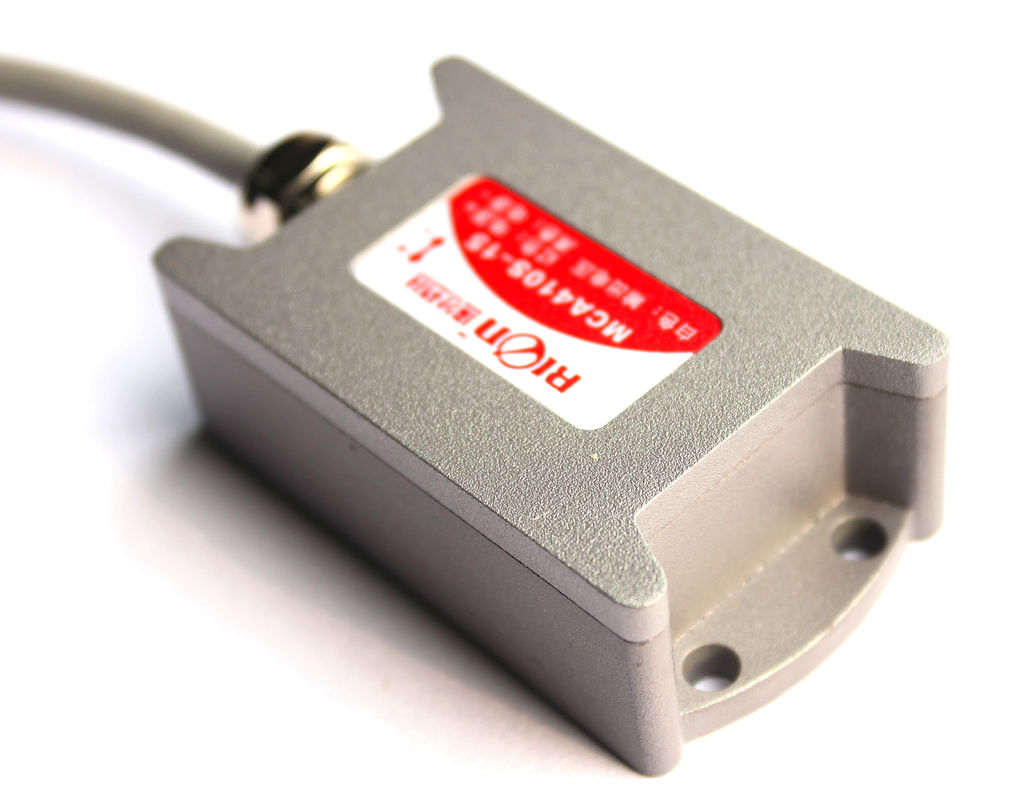

DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: MDA426T-CAN2.0B

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $30.00 - $35.00/Pieces

Packaging Details: CARTON

Delivery Time: 7 days for samples order

Payment Terms: T/T, PayPal

Supply Ability: 50000 pcs per Month

Get Best Price
Contact Now
Specifications
Highlight:

DC 9V Tilt Angle Sensor

,

Tilt Angle Sensor Shockproof

,

RION Solar Tracking SENSOR

Usage:
Magnetic Sensor
Theory:
Inductance Sensor
Output:
Digital Sensor
Product Name:
Dynamic-Static Dual Mode Inclinometer
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
±1~±90°
Output:
CAN2.0B
Static Accuracy:
0.02
Dynamic Accuracy:
0.3
Anti-vibration:
>2000g
Protection Class:
IP67
Size:
72.62*42*23.1mm
Port:
SHENZHEN
Usage:
Magnetic Sensor
Theory:
Inductance Sensor
Output:
Digital Sensor
Product Name:
Dynamic-Static Dual Mode Inclinometer
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
±1~±90°
Output:
CAN2.0B
Static Accuracy:
0.02
Dynamic Accuracy:
0.3
Anti-vibration:
>2000g
Protection Class:
IP67
Size:
72.62*42*23.1mm
Port:
SHENZHEN
Description
DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking
Product Description



DC 9-36V Tilt Angle Sensor Shockproof RION Dynamic Inclinometer



Description
The MDA416T-MDA426T series is a new dynamic measuring small-volume MEMS tilt sensor from RION that accurately measures the attitude of the motion carrier. The built-in dual-channel Earth Gravity Inclination Unit converts into a tilt angle change by measuring static gravitational acceleration. Thereby the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured. Output mode CAN2.0B level interface standard is optional. Due to the built-in MCU control system, the linearity of the sensor output is quadraticized, which compensates for the accuracy of the analog type due to insufficient correction.

This product adopts non-contact measurement original quantity, which can output the current attitude inclination angle in real time. It is easy to use and does not need to retrieve the two surfaces of relative change. This product is suitable for static and dynamic measurement. It is an ideal choice for industrial automation control and platform measurement attitude. It has strong resistance to external electromagnetic interference and can adapt to long-term work in industrial harsh environment.





Technical Data:

Parameters
Conditions
MDA426T-30
Unit
Measuring range

±30
°
Measuring axis

X/Y

Resolution

0.1
°
Static accuracy
@25℃
± 0.3
°
Dynamic accuracy
@25℃
± 0.8
°
Zero temperature coefficient
-40~85°
±0.01
°/℃
Sensitivity temperature coefficient
-40~85°
≤100
ppm/℃
Power on time

1
S
Response time

0.05
s
Output signal
Can 2.0B

EMC
According to EN61000 and GBT17626

MTBF
≥50000hours/times

Insulation Resistance
≥100M

Shockproof
100g@11ms,3Times/Axis(half sinusoid))

Anti-vibration
10grms,10~1000Hz

Protection glass
IP67

Cables
Standard 1M length,wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2

Weight
120g(without cable)




*This Technical data only list  ± 30 °, series for reference, other measuring range please refer to the adjacent parameters.





Feature


●Dynamic biaxial tilt measurement
●range:±30°
●Static accuracy:±0.3°
●DC 9~36V power supply
●working temp. -40~+85℃
●resolution0.01°
●IP67
●anti-vibration >2000g
●direct lead wire

●size:L61×W35×H21mm

Application
● Satellite antenna search star

● Rail-mobile monitoring
●Tilt angle measurement of High-altitude construction machinery

●oil-well drilling equipment
●Radar detection of vehicle platform

●Underground drill posture navigation

●Based on the angle direction measurement

●Satellite communications vehicle posture detection

●Shield pipe jacking application
●Ship's navigation posture measurement

●Geological equipment inclined monitoring

Ordering Information:

DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking 0
Detailed Images
DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking 2
DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking 4

Mechanical Parameters

○ Connectors:1m lead cable (customized)

○ Protection glass:IP67

○ Enclosure material :Aluminum alloy sanding            oxidation

○ Installation : 3*M4 screws



SIZE:


DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking 6



installation.

Horizontal installation: be parallel between two surfaces:

Note: horizontal installation is factory default, if need vertical installation, please confirm
with sales.

DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking 8
DC 9V Tilt Angle Sensor Shockproof RION Solar Tracking 10
