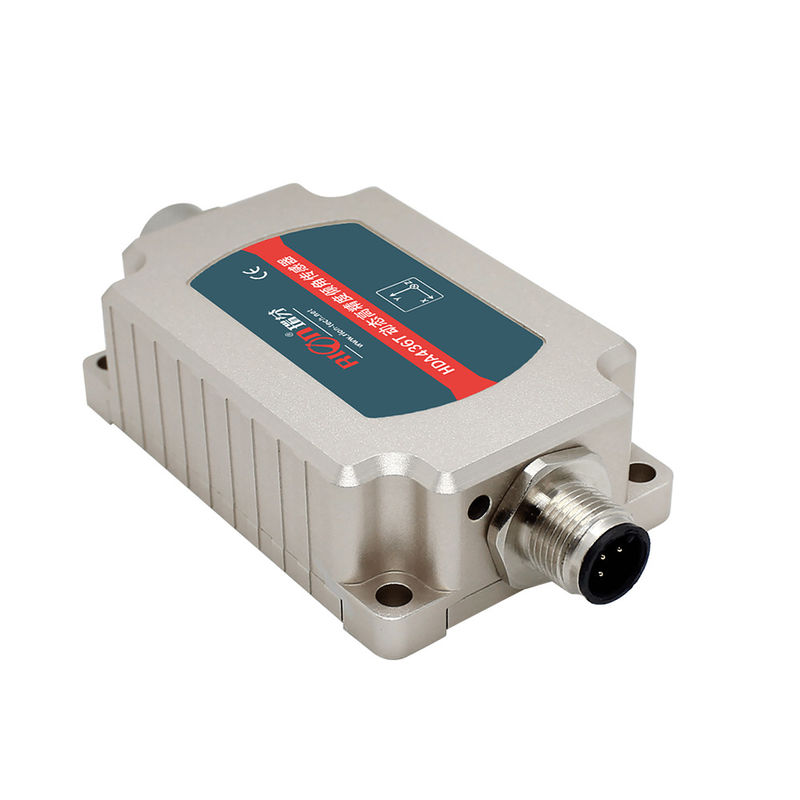

100g Impact Resistance 3 Axis Tilt Sensor HDA436T Voltage Input

Name: 100g Impact Resistance 3 Axis Tilt Sensor HDA436T Voltage Input
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA436T-485
Price: 161 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: RION

Certification: CE

Model Number: HDA436T-485

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 161/PCS

Packaging Details: Carton box 23 x 23 x 8cm

Delivery Time: 7 days

Payment Terms: T/T, PAYPAL

Supply Ability: 1000 PCS/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      100g 3 Axis Tilt Sensor, impact resistance 3 Axis Tilt Sensor, voltage input tilt angle sensor


Power Supply:	DC9~36V	Protection:	IP67
Resolution:	0.01°	Anti-vibration:	>2000g
Zero Temperature Coefficient:	±0.01 °/℃	Sensitivity Temperature Coefficient:	≤100ppm/℃
Power On Time:	1s	Response Time:	0.01s
Static Accuracy:	± 0.05°	Dynamic Accuracy:	± 0.3°

Power Supply:	DC9~36V
Protection:	IP67
Resolution:	0.01°
Anti-vibration:	>2000g
Zero Temperature Coefficient:	±0.01 °/℃
Sensitivity Temperature Coefficient:	≤100ppm/℃
Power On Time:	1s
Response Time:	0.01s
Static Accuracy:	± 0.05°
Dynamic Accuracy:	± 0.3°

Description

100g Impact Resistance 3 Axis Tilt Sensor HDA436T Voltage Input

Good Performance 3 Axis Tilt Sensors Dynamic Tilt Angle Inclinometers CAN Output Dynamic Angle Sensor Price

HDA436T-485,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.

HDA536T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / 232 / TTL are optional, and the scalability is strong. This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces. Internally integrated high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments. The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference. It is an ideal choice for industrial automation control measurement posture.

▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °) ★ Dynamic accuracy: ± 0.1 ° ★ DC 9 ～ 36V wide voltage input
★ Wide temperature operation -40 ～ + 85 ℃ ★ Resolution 0.01 °
★ IP67 protection level ★ High anti-vibration performance> 2000g
★ Size: L107 × W54 × H31mm

▶ APPLICATION
★ Satellite search satellites ★ Railway locomotive monitoring
★ Oil drilling equipment
★ Shield pipe jacking application
★ Radar vehicle platform detection
★ Underground drilling rig attitude navigation
★ Ship navigation attitude measurement
★ Shield pipe jacking application
★ Geological equipment tilt monitoring
★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement

▶ TECHNICAL PARAMETERS

			HDA436T
			CONDITION
			INDEX

			Measure range

			Roll ± 180 °, pitch ± 90 °, azimuth ± 180 °
(initial value at power-down is 0 °)

			Measure axis

			X axis / Y axis / Z axis

			Resolution

			0.01°

			Static accuracy (RMS)
			@25℃
			± 0.05°

			Dynamic accuracy (RMS)
			@25℃
			± 0.1°

			Bias Instability (Allan)

			8°/h

			Zero point temp. coefficient
			-40～85℃
			±0.01°/℃

			Sensitivity temp. coefficient
			-40～85℃
			≤100ppm/℃

			Power-on startup time
			1S

			Response time
			0.01S

			Output signal
			CAN2.0A/CAN2.0B

			Electromagnetic compatibility
			According to EN61000 and GBT17626

			MTBF
			≥ 50000 hours / time

			Insulation resistance
			≥100 Megohm

			Impact resistance
			100g @ 11ms, 3 axial direction (half sinusoid)

			Anti-vibration
			10grms,10～1000Hz

			Waterproof level
			IP67

			Cable
			Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable

			Weight
			Single connector 152g / double connector 166g (Without cable)

▶ ELECTRICAL PARAMETERS

			PARAMETER
			CONDITION
			MIN
			TYP
			MAX
			UNIT

			Supply voltage
			standard
			9
			12,24
			36
			V

			Working current
			without load

			60mA(12V)

			mA

			Operating temp

			-40

			+85
			℃

			storage temp

			-40

			+85
			℃
