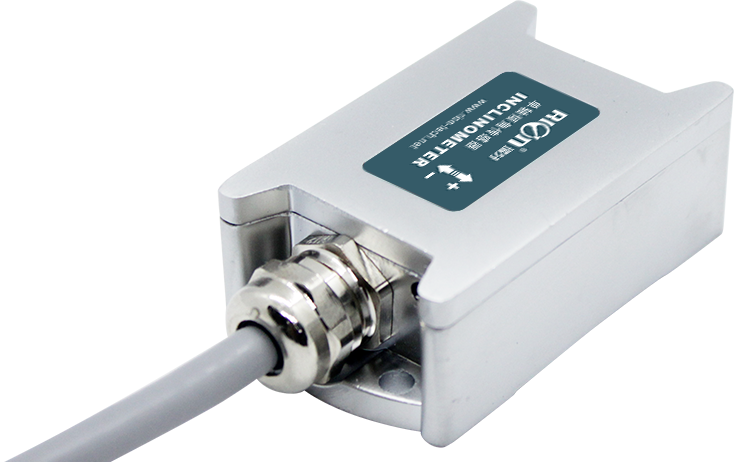

MCA416/426T Tilt Sensor for Neonate Incubator Application

Product User Manual

1. The tit sensor measures the inclination angle of the obiect by sensing the principle of gravity of the earth, and try to ensure thatthe direction of the induction axis of the sensor is parallel to the direction of the inclination axis of the measured object duringinstallation, so as to achieve the best measurement accuracy. The sensor and the measured surface must be tight, flat and stable
If the installation surface is uneven, it is easy to cause the sensor measure with angle error

2. The tilt sensor can be installed and measured arbitrarily on six surfaces. After installation, to set ZERO through the relative
ZERO command. (Atthe same time, set the currentinstallation mode. The set value is stored in the internal memory of the product
After zero setting, the product will work with the current position as zero.)

3. The tilt sensor has IP67 protection, rain or strong spray water will not affect the work of the internal devices. Please do not use itinwaterfora long time,so asto avoid damage to the internal circutof the product. The manufacturer willprovide paid maintenanceservices for the damage caused by this.

4. After the tit sensor installation, please pay attention notto short circuit the signal line and the positive pole of the power linewhen wiring, so as not to burn out the output circuit. Because the negative pole of the signal of this product is shared with thenegative pole of the power supply. please connect the negative pole of the signal of the acquisition end with the negative pole of the
power supply of this product

APPLICATION

• Agricultural machinery
• Lifting machinery
• Crane
• Aerial platform
• Solar tracking system
• Medical equipment
• Electric vehicle control

FEATURES

• Resolution:0.1°
• Six installation methods
• Zero set function
• IP67
• Output: RS232/RS485/TTL
• Power supply: 9~36V
• Work temperature:-40~+85°C
• High anti-0shock>3500g
