Product Details
Place of Origin: China
Brand Name: RION
Certification: CE, FCC,ROHS , ISO
Model Number: ACA2200T-C2
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: US$650.00
Packaging Details: carton with safety sponge
Delivery Time: 5-10 days
Supply Ability: 300pcs per week
Range: |
±1～±60° Optional |
Voltage Power: |
9～36V |
Resolution: |
0.0005° |
Output: |
CAN2.0A |
Protection: |
IP67 |
Zero Temp. Coefficient: |
±0.0002 |
Respnose Time: |
0.02 |
MTBF: |
≥50000 Hours/times |
Weight: |
385g( Without Cable ) |
Power On Time: |
0.5s |
Range: |
±1～±60° Optional |
Voltage Power: |
9～36V |
Resolution: |
0.0005° |
Output: |
CAN2.0A |
Protection: |
IP67 |
Zero Temp. Coefficient: |
±0.0002 |
Respnose Time: |
0.02 |
MTBF: |
≥50000 Hours/times |
Weight: |
385g( Without Cable ) |
Power On Time: |
0.5s |

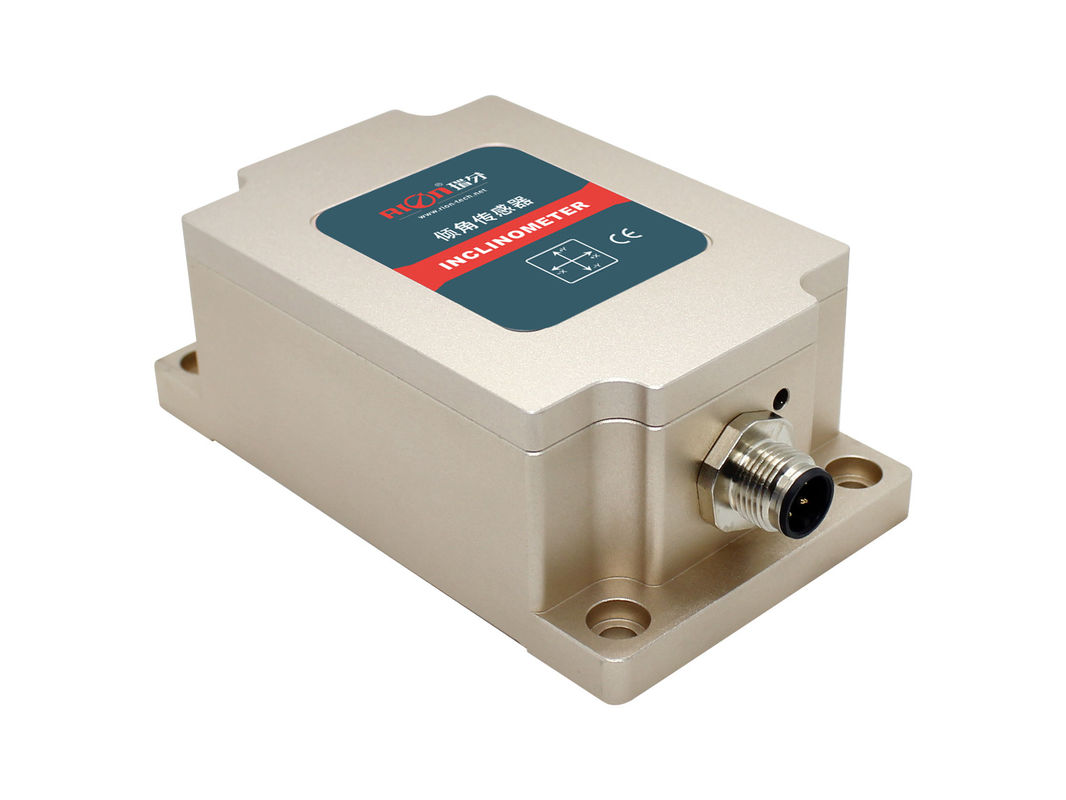

ACA2200T High Accuracy Inclinometer CAN2.0 With Full Temperature Compensation
▶ FEATURES
★ Dual-Axis Inclinometer
★ Measuring Range :±1～±60° optional
★ Wide voltage input: 9～36V
★ Waterproof aviation plug
★ Wide temperature working: -40～+85℃
★ Resolution: 0.0005°
★ Size:L110×W65×H40mm
★ IP67
★ Output mode CAN2.0A
▶ APPLICATION
★ Engineering vehicles automatic leveling
★ Bridge & dam detection
★ Precise equipment level control
★ Medical facilities angle control
★ Underground drill posture navigation
★ Railway gauging rule , gauge equipment leveling
★ Based on the angle direction measurement
★ Geological equipment inclined monitoring
GENERAL DESCRIPTION
ACA2200T-CAN2.0A is a full-temperature compensation high-precision dual-axis inclinometer developed by RION Technology on the basis of a high-precision inclination platform. Its good temperature stability enables it to be used in a wide temperature environment of -40-85 degrees Maintain high measurement accuracy, more suitable for long-term field equipment monitoring and leveling. In addition, the system has a built-in high-precision 24it A / D differential converter, and through the fifth-order filtering algorithm, it can measure the tilt and pitch angle of the sensor output relative to the horizontal plane.
Output protocol CAN OPEN. The characteristics of non-contact installation make ACA2200T-CAN2.0A have strong system integration, only need to fix the sensor on the surface of the measured object with screws, the attitude and inclination of the object can be automatically calculated, simple to use, no need to retrieve Relatively change the two sides of the installation. It has strong resistance to external electromagnetic interference and strong ability to withstand shock and vibration. It has a great competitive advantage among domestic counterparts. It is professionally used in the industrial fields required by high-end users.
| ACA2200T-CAN2.0A | CONDITIONS | PARAMETERS | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ° | ||
| Measure axis | X Y | X Y | X Y | |||
| Resolution | 0.0005 | 0.0005 | 0.0005 | ° | ||
| Measure accuracy | @25℃ | 0.003 | 0.01 | 0.02 | ° | |
| Long term stability | 0.01 | 0.02 | 0.03 | ° | ||
| Zero Temp. coefficient | -40～85℃ | ±0.0002 | ±0.0002 | ±0.0002 | °/℃ | |
| Sensitivity temp coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ppm/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | S | ||
| Response time | 0.02 | 0.02 | 0.02 | S | ||
| Interface type | CAN2.0A | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,Triaxial (half sine wave) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector | |||||
| Weight | 385g( without cable ) | |||||
