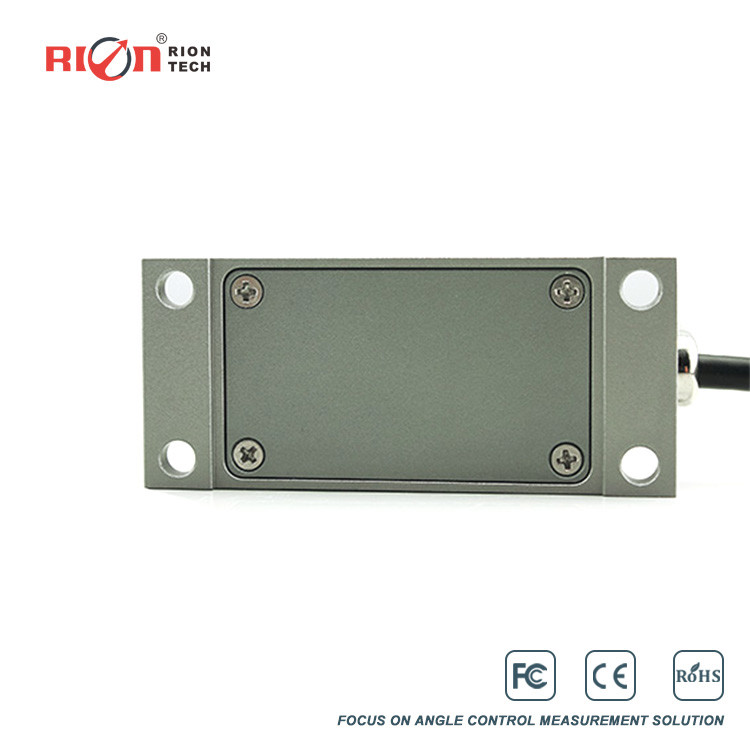

Mems Posital 2 Axis Tilt Sensor Inclinometer RS485/TTL Interface
▶ PERFORMANCE PARAMETERS
| SCA116T/126T | CONDITION | PARAMETER | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measure axis | X Y | X Y | X Y | X Y | axis | |
| Resolution | 0.01 | 0.01 | 0.01 | 0.01 | ° | |
| Measure accuracy | @25℃ | 0.02 | 0.03 | 0.05 | 0.06 | ° |
| Long term.stability | 0.05 | 0.05 | 0.05 | 0.05 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 5Hz,15Hz,35Hz,50Hz Optional | |||||
| communication protocol | MODBUS / ROIN 68 Optional | |||||
| EMC | According to EN61000 and GBT17626c | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2 | |||||
| Weight | 165g(exclude cable) | |||||
* This performance parameter only lists ± 10 °, ± 30 °, ± 60 °, ± 90 ° series as a reference, for other measurement ranges, please refer to the most adjacent parameters.
▶ INTRODUCTION

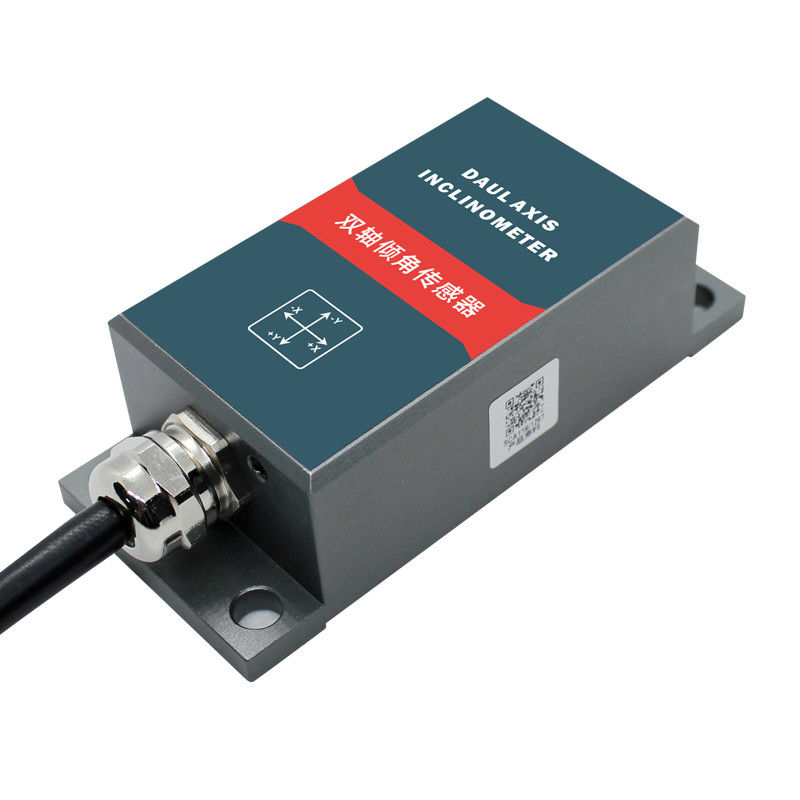

SCA116T & SCA126T is a CAN2.0A output single and dual axis tilt sensor for industrial field control. It adopts industry standard isolated CAN transceiver, built-in high-precision A / D differential converter, and can be measured through a 5th order filtering algorithm. The sensor outputs the tilt and pitch angle relative to the horizontal plane.
Due to the built-in high-precision digital temperature sensor of ADI, the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure the high repeatability of the product in low temperature and high temperature environments. The output response frequency standard can be up to 100Hz. If a higher response frequency is required, our company can customize it according to the user. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. Suitable for various harsh industrial control environments.
▶ FEATURES
★ Single and biaxial inclination measurement ★ Range ± 1 ～ ± 90 ° optional
★ DC 9～36V wide voltage input ★ Accuracy: 0.05 °
★ Wide temperature operation -40 ～ + 85 ℃ ★ Resolution 0.01 °
★ High anti-vibration performance> 2000g ★ Direct lead interface
★ Size: L90 × W40 × H26mm ★ Output method: CAN2.0A
▶ APPLICATION
★ Engineering vehicles automatic leveling ★ Bridge & dam detection
★ Aerial platform vehicle, lifter safety & protection ★ Medical facilities angle control ★ Underground drill posture navigation ★ Shield pipe jacking application ★ Based on the angle direction measurement ★ Geological equipment inclined monitoring
★ Mining machinery, oil-well drilling equipment ★ Equipment level control
★ Alignment control, curve control
★ Directional satellite communications antenna pitching angle measurement
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 2~4 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.
A: we accept 40% prepayment in advance, and the balance 60% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.
