MCA418T/428T Tilt Sensor 0.1° Resolution Agricultural Machinery

Name: MCA418T/428T Tilt Sensor 0.1° Resolution Agricultural Machinery
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: MCA418T/428T
Price: 29 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO,ROHS

Model Number: MCA418T/428T

Document: MCA418T MCA428T CURRENT OUT...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $29 pcs/Pieces

Packaging Details: packing carton

Delivery Time: 5~8 work days

Payment Terms: T/T

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Tilt Sensor 0.1° resolution, Agricultural Machinery tilt sensor, Tilt inclinometer with high precision


Protection Grade:	IP67	Wide Voltage Input:	9~36V
Response Time:	0.05	Resolution:	0.1°
Weight:	<200g	Shell Material:	Electroplated Metal Housing
Output Current:	4~20 MA	Operating Hours:	50000 Hours/time

Protection Grade:	IP67
Wide Voltage Input:	9~36V
Response Time:	0.05
Resolution:	0.1°
Weight:	<200g
Shell Material:	Electroplated Metal Housing
Output Current:	4~20 MA
Operating Hours:	50000 Hours/time

Description

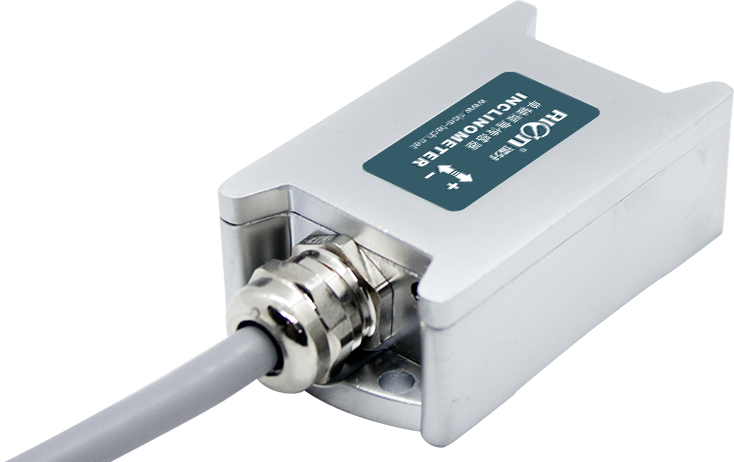

MCA418T/428T Tilt Sensor 0.1° Resolution Agricultural Machinery

MCA418T MCA428T CURRENT OUTPUT TYPE TILT SENSOR.pdf

PRODUCT DESCRIPTION

The MCA418T/428T Series Tilt Sensors are a new low-cost, full-attitude tilt angle measurement solution. Featuring a cutting-edgeanti-interference platform design, they incorporate a novel MEMS(Micro-Electro-Mechanical Systems) sensing unit, deliver robustperformance across a wide temperature range, and exhibitexceptional vibration resistance. With long-term stability andreliability, these sensors boast a service life of up to 10 years.This product measures tilt angles via a non-contact principle. Utilizingan internal capacitive MEMS unit, it detects gravitational forcecomponents to calculate real-time tilt angles. Installation is simpleand convenient-just secure the sensor to the target object withoutrequiring fixed or rotating shafts. Offering multiple mounting options,it adapts to diverse measurement needs, making it an idealcomponent for engineering machinery, agricultural equipment, andother industrial systems.

PRODUCT FEATURES

Resolution:0.1°
Six installation methods
IP67 protection grade
Wide voltage input:9~36V
Zero point can be set on site
High vibration resistance:> 3500g

APPLICATION RANGE

Agricultural machinery
Lifting machinery
Aerial platform
Solar tracking system
Crane
Medical equipment
Electric vehicle control

SPECIFICATIONS

SPECIFICATIONS
MCA418/428T	CONDITION	PARAMETER	UNIT
Output current		4~20	mA
Resolution		0.1	°
Measurement accuracy	25℃	±0.2	°
Response time		0.05	S
Temp. drift characteristics	-40℃ ~ 85℃	±0.5	°
Output load		>500 ohm
operating hours		50000 hours/time (no fault)
Insulation resistance		>100Megohm
Anti-vibration		10grms,10~1000Hz
Impact resistance		100g@11ms,3 Axial Direction (Half Sinusoid)
shell material		Electroplated metal housing
weight		≤200g(Including 1m line)
Quality system		IATF16949: 2016 (Certificate No.: T178487) GJB9001C-2017 (Registration No.: 02622J3179R0M)
