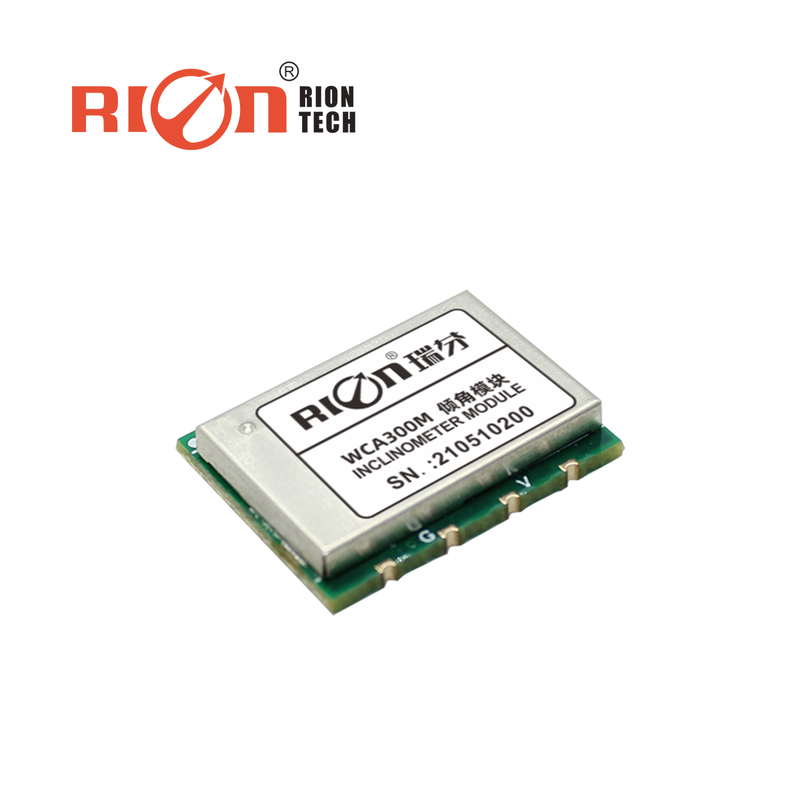

WCA 300M Single-Axis Inclination Module Output MEMS Tilt Sensor

Name: WCA 300M Single-Axis Inclination Module Output MEMS Tilt Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: WCA300M
Price: 7.5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE FCC ROHS

Model Number: WCA300M

Document: WCA300M SINGLE AXIS TILT SE...LE.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $7.5/Pieces

Packaging Details: carton packing

Delivery Time: 2 work days

Payment Terms: T/T,paypal

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              single-axis inclination module tilt sensor, MEMS tilt sensor with 300M range, inclinometer module for precise tilt measurement


Range:	0~360°	Resolution:	0.1°
Measure Accuracy(RMS):	±0.2°	Operating Temperature:	-40℃~85℃
Output Interface:	3.3V TTL	Output Load:	＞500 Ohm
Operating Hours:	50000 Hours / Time (no Failure)	Anti-vibration:	10grms、10~1000Hz

Range:	0~360°
Resolution:	0.1°
Measure Accuracy(RMS):	±0.2°
Operating Temperature:	-40℃~85℃
Output Interface:	3.3V TTL
Output Load:	＞500 Ohm
Operating Hours:	50000 Hours / Time (no Failure)
Anti-vibration:	10grms、10~1000Hz

Description

WCA 300M Single-Axis Inclination Module Output MEMS Tilt Sensor

WCA300M SINGLE AXIS TILT SENSOR MODULE.pdf

PRODUCT INTRODUCTION

WCA300M single-axis inclination module is a new low-cost inclination module independently developed. It adopts the latest anti-jamming platform design and integrates a new micro-mechanical sensing unit. It has wide temperature working performance, superior anti-vibration performance,stable and reliable long-term work, and effective work. The life span is up to 10 years. Each module goes through the factory'sstrict calibration procedure, which effectively eliminates the zero-bias error. Cross axial error, linearity error. Using tape packaging, it can be directly used for automatic placement with SMT placement machine, which is more efficient and lower-cost.

MAIN FEATURES

Resolution: 0.1°
Wide Measuring Range
Output Interface: TTL
Operating Voltage: DC 3.3-7V
Excellent Full-Temperature Performance
High Vibration Resistance: >100g
Operating Temperature Range: -40°C ~ +85°C

APPLICATIONS

Solar Photovoltaic Tracking Systems
Wind Deviation Monitoring
Hospital bed
Construction Tower Cranes
Vertical monitoring
Wind deviation monitoring
Building tower crane
Wood working machinery

SPECIFICATION PARAMETERS

WCA300M	CONDITION	PARAMETER	UNIT
Range	SINGLEAXIS	0~360	°
Resolution		0.1	°
Measure Accuracy(RMS)	25°	±0.2	°
Temp. Drift Characteristics	-40℃~85℃	±0.2	°/℃
Response Time	NO FILTERING	0.1	S
Zero deviation		±0.1	°
Static operating current	DC 5V	10	mA
Power on time	1s
Operating Voltage	DC 5V(Recommended value)
Operating temperature	-40~85℃
Output Interface	3.3V TTL
Output load	＞500 ohm
operating hours	50000 hours / time (no failure)
Anti-vibration	10grms,10~1000Hz
Impact resistance	100g @ 11ms, 3 Axial Direction (Half Sinusoid)
Weight	30g
