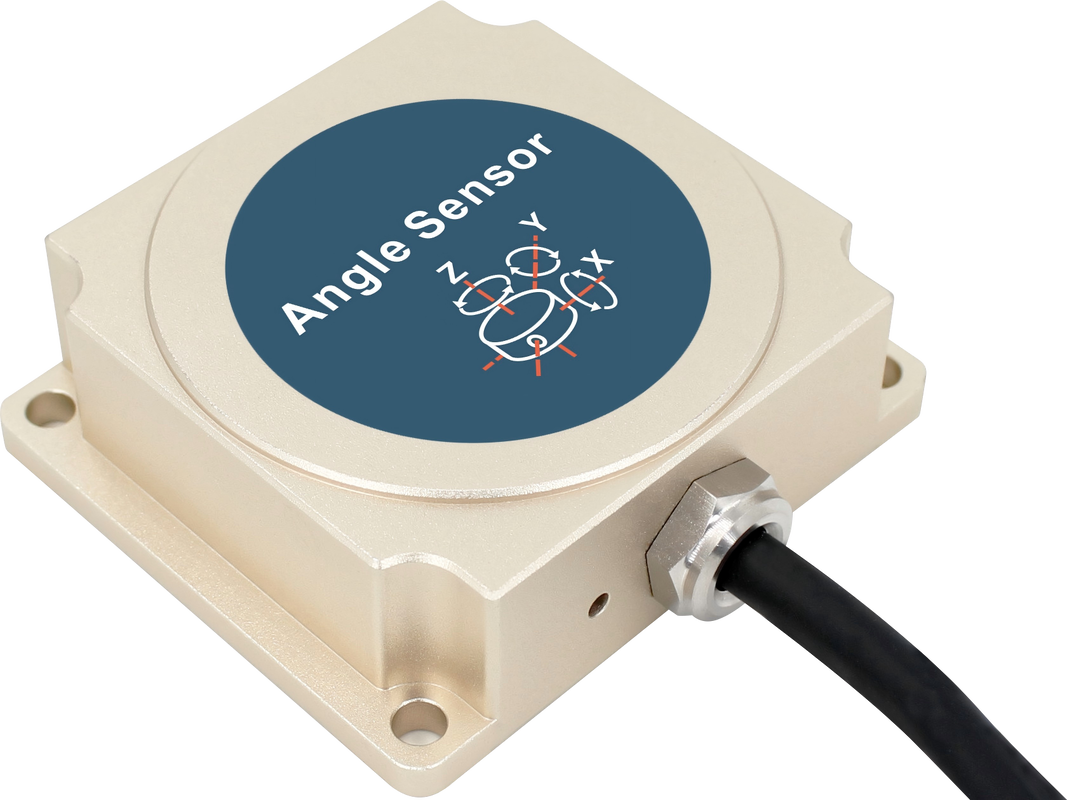

TL725D Dynamic Tilt Sensor for Precision Agriculture Automated Farming Machinery

Name: TL725D Dynamic Tilt Sensor for Precision Agriculture Automated Farming Machinery
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL725D
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO,ROHS

Model Number: TL725D

Document: TL725D-CANBUS Angle sensor.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $57.00/Pieces

Packaging Details: packing carton

Delivery Time: 5~8 work days

Payment Terms: T/T

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              TL725D Dynamic Tilt Sensor, TL725D Precision Agriculture Dynamic Tilt Sensor


Power Supply:	DC9~36V	Output Optional:	CAN2.0A/B
Protection Grade:	IP67	Weight:	≤160g

Power Supply:	DC9~36V
Output Optional:	CAN2.0A/B
Protection Grade:	IP67
Weight:	≤160g

Description

TL725D Dynamic Tilt Sensor for Precision Agriculture Automated Farming Machinery

TL725D-CANBUS Angle sensor.pdf

PRODUCT INTRODUCTION

TL725D is a professional angle sensor designed for navigation applications in agricultural machinery automatic lifting, with built-in industrial grade three-axis angular rate and three-axis linear velocity. This product can still output smooth posture data even under the high vibration characteristics of agricultural machinery. A dynamic attitude algorithm based on MEMS inertial measurement platform is developed to output real-time data on the dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis linear velocity, and forward axial body linear velocity of an object . This product is specifically designed for automated agricultural machinery, precise operations, and efficiency, and is an essential component for the new generation of automated precision agriculture control.

FEATURES

Horizontal relative heading and attitude angle output
Real-time angular rate output
Long life and strong stability
Forward axis linear velocity
Compact and lightweight design
CAN2.0A/B output optional
All solid state
Light weight
DC9~36V power supply

APPLICATION

Automated agricultural machinery
Precision agriculture
Combination Harvesters
Farming machine

TL725D Dynamic Tilt Sensor for Precision Agriculture Automated Farming Machinery

TL725D-C2/C3	PARAMETERS
Three-axis attitude	relative heading ±180°, Roll angle ±180°, Pitch angle ±90°
Bandwidth	>100Hz
Nonlinear	0.1% of FS
Startup time	250ms
Input voltage	+9~36V
Current	35mA(12V)
Working temp	-40 ~ +80℃
Storage temp	-40 ~ +85℃
Vibration	5g~10g
Impact	200g pk, 2ms, ½sine
Working life	10 years
Output frequency	1Hz~200Hz Settable
Output signal	CAN 2.0A / CAN2.0B(Optional)
MTBF	≥98000 Hours/times
Insulation resistance	≥100 MΩ
Shockproof	100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms/10~1000Hz
Protection grade	IP67
Cable	Standard 1 m 4 pin shield wire
Weight	≤160g (including 1 meter standard cable)

TL725D Dynamic Tilt Sensor for Precision Agriculture Automated Farming Machinery
