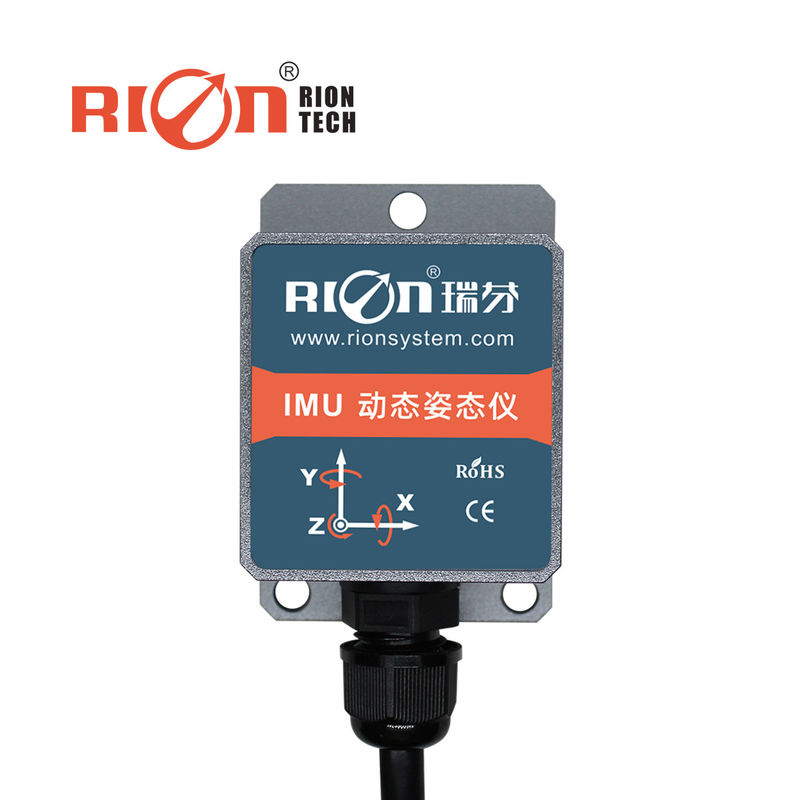

TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: TL720D-232

Document: TL720D DYNAMIC ATTITUDE SEN...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $60.00/Pieces >=1 Pieces

Packaging Details: Carton

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 5000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

TL720D MEMS Gyroscope Sensor

,

DC5V MEMS Gyroscope Sensor

,

​RION gyroscope sensor in mobile

Input Voltage:
9~36VDC / 5VDC (Optional)
Output Signal:
RS232/RS485
Mesuring Range:
Azimuth Angle (±180)
Current (mA):
30mA(12V)
Azimuth Accuracy (°/min):
<0.2
Vibration:
5g~10g
Impact:
200g Pk, 2ms, ½sine
Working Life:
10 Years
Input Voltage:
9~36VDC / 5VDC (Optional)
Output Signal:
RS232/RS485
Mesuring Range:
Azimuth Angle (±180)
Current (mA):
30mA(12V)
Azimuth Accuracy (°/min):
<0.2
Vibration:
5g~10g
Impact:
200g Pk, 2ms, ½sine
Working Life:
10 Years
Description
TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY

TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY


 GENERAL DESCRIPTION

TL720D is newly developed Small volume dynamic attitude sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product internal integrated Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

This product is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

 KEY FEATURES

 Azimuth angle output           Strong vibration resistance              Light weight

 Long life,strong stability        Cost-effective                                All solid state

 Compact & light design        RS232/RS485 output optional

 APPLICATION

 AGV truck                    Car Navigation                     3D virtual reality

 Platform stability             Auto safety system               Industrial control

Detailed Data

TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY 0TL720D

Parameters

Measure range

Azimuth Angle (±180)°

Acquisition bandwidth

>100Hz

Nonlinear

0.1% of FS

Accelerometer

Accelerometer range

±4g

Accelerometer resolution

0.001g

Accelerometer accuracy

5mg

Bias instability(allan)

0.05mg

Speed random walk coefficient(allan)

0.015m/s/sqrt(h)

Bias stability(10s average)

0.15mg

Gyro

Gyro Angular Velocity Range

±250°/s

Angle random walk coefficient(allan)

0.30°/sqrt(h)

Bias stability(10s smooth)

10°/h

Starting time

AGV application: 5~6s

AGM application: 1.5s

Input Voltage

9~36VDC / 5VDC (Optional)

Current

30mA(12V)

Working Temp.

-40 ~ +80

Storage Temp.

-40 ~ +85

Vibration

5g~10g

Impact

200g pk, 2ms, ½sine

Working life

10 years

Output rate

5Hz~200Hz can set

Output signal

RS232 or RS485

MTBF

98000 hours / times

Insulation resistance

≥100 Megohm

Impact resistance

100g@11ms / 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms / 10~1000Hz

Protecting

IP67

Weight

≤135g (including 1 meter standard cable)

Ordering information
TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY 1
TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY 2

 NOTICE

1. The angular gyro sensor should be mounted in the center position of the measured object , in order to reduce the influence of linear acceleration on the measurement accuracy. See below diagram as ref.

TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY 3

2. The installation of the instrument should be kept parallel to the surface of the measured object, and reduce the influence of the dynamic and acceleration on the angle meter. Incorrect installation will lead to measurement errors, with particular attention to "surface" and” line "

1)The mounting surface of the instrument fixing must be close, smooth and stable with the measured surface. If the mounting surface is not smooth, the angle error of angle measurement can be caused easily.

2)The axis of the instrument must be parallel to the axis of measurement, and the two axis should not be included angle as far as possible.

3. Do not shake violently during the use of the product, avoid violent vibration, away from the vibration source (if you can not avoid please install the shock absorber), so as not to affect the product measurement accuracy;

4. Try to avoid a sharp acceleration, arrest, sharp turn angular velocity greater than 300 DEG /s movement during use, so as not to affect the measurement precision of products.

TL720D DC5V MEMS GYROSCOPE SENSOR IN MOBILE STRONG STABILITY 4

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in brown cartons. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your terms of payment?

A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages

before you pay the balance.


Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity and stock of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and

the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;
