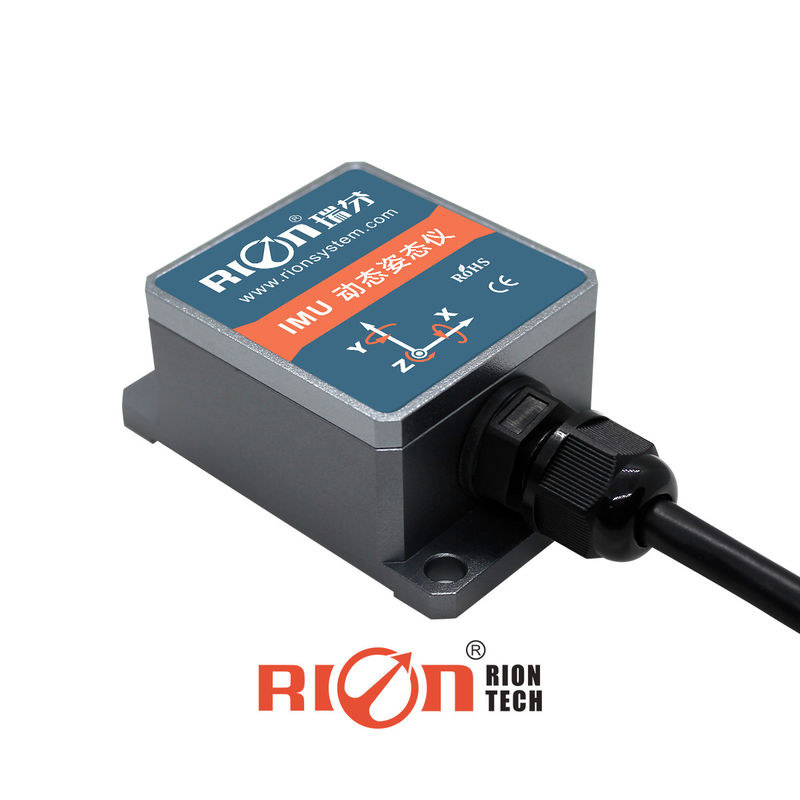

TL720D MEMS Gyroscope Sensor with Azimuth Angle (±180°), RS232/RS485 Output, and 10grms Anti-Vibration for AGV and Industrial Control

Name: TL720D MEMS Gyroscope Sensor with Azimuth Angle (±180°), RS232/RS485 Output, and 10grms Anti-Vibration for AGV and Industrial Control
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL720D
Price: 60 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: TL720D

Document: TL720D DYNAMIC ATTITUDE SEN...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 60 USD/Pieces

Packaging Details: Carton

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              TL720D angular gyro sensor, MODBUS angular gyro sensor, 152g 3 axis gyro


Gyro Sensor Power Supply:	DC5V	Output Signal:	RS232/RS485/TTL
Mesuring Range:	Azimuth Angle (±180)	Current (mA):	40(5V)
Anti-vibration:	10grms,10~1000Hz	Azimuth Accuracy (°/min):	<0.2
Weight:	152g(matched Standard Cable)	Working Temp.(℃):	-40 ~ +80

Gyro Sensor Power Supply:	DC5V
Output Signal:	RS232/RS485/TTL
Mesuring Range:	Azimuth Angle (±180)
Current (mA):	40(5V)
Anti-vibration:	10grms,10~1000Hz
Azimuth Accuracy (°/min):	<0.2
Weight:	152g(matched Standard Cable)
Working Temp.(℃):	-40 ~ +80

Description

TL720D MEMS Gyroscope Sensor with Azimuth Angle (±180°), RS232/RS485 Output, and 10grms Anti-Vibration for AGV and Industrial Control

TL720D 152G 3-Axis Angular Sensor with Azimuth MODBUS Attitude Algorithm

The TL720D is a newly developed small-volume dynamic attitude sensor based on the latest MEMS inertial measurement platform. Utilizing advanced dynamic attitude algorithms for gyroscope angular velocity processing, it simultaneously outputs the carrier's azimuth angle. The product integrates inertial navigation algorithms and employs attitude angle data fusion models to minimize gyro short-term drift issues.

Key Features

Azimuth angle output

Strong vibration resistance

Light weight design

Long life with strong stability

Cost-effective solution

All solid state construction

Compact & lightweight design

RS232/RS485 output optional

Applications

AGV truck navigation

Car navigation systems

3D virtual reality

Platform stability control

Automotive safety systems

Industrial control applications

Technical Specifications

Parameter	Specification
Measure range	Azimuth Angle (±180)°
Acquisition bandwidth	>100Hz
Nonlinear	0.1% of FS
Accelerometer
Accelerometer range	±4g
Accelerometer resolution	0.001g
Accelerometer accuracy	5mg
Bias instability (allan)	0.05mg
Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
Bias stability (10s average)	0.15mg
Gyro
Gyro Angular Velocity Range	±250°/s
Angle random walk coefficient (allan)	0.30°/sqrt(h)
Bias stability (10s smooth)	10°/h
Starting time	AGV application: 5~6s AGM application: 1.5s
Input Voltage	9~36VDC / 5VDC (Optional)
Current	30mA(12V)
Working Temperature	-40℃ ~ +80℃
Storage Temperature	-40℃ ~ +85℃
Vibration	5g~10g
Impact	200g pk, 2ms, ½sine
Working life	10 years
Output rate	5Hz~200Hz can set
Output signal	RS232 or RS485
MTBF	≥98000 hours / times
Insulation resistance	≥100 Megohm
Impact resistance	100g@11ms / 3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms / 10~1000Hz
Protection	IP67
Weight	≤135g (including 1 meter standard cable)
