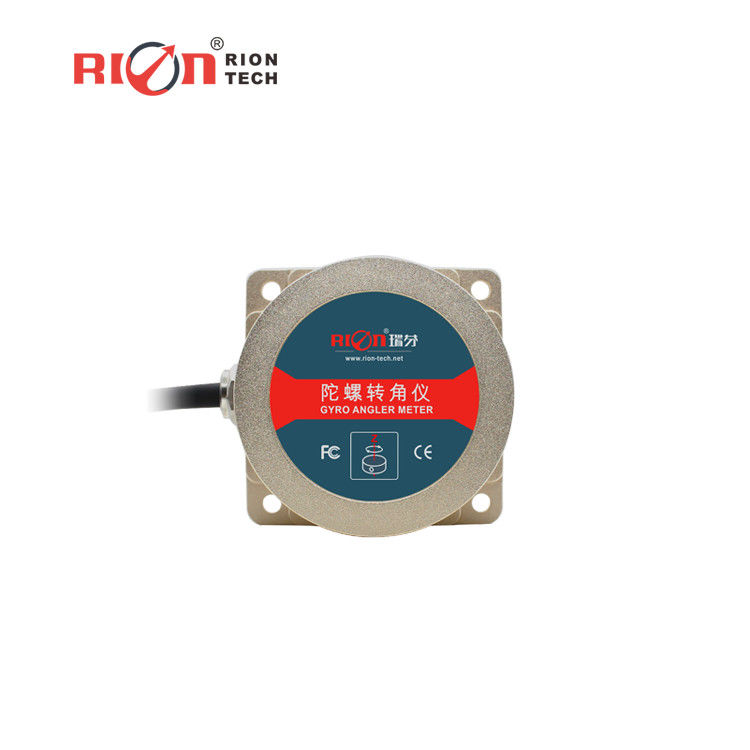

TL740D CAN2.0A 3D Digital Compass TL740D 3 Axis Accelerometer Gyroscope

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: TL740D-CAN

Document: TL740D CAN OUTPUT ANGULAR G...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $224/Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

CAN2.0A 3d digital compass

,

3 axis 3d digital compass

,

TL740D 3 axis accelerometer

Application:
Industrial Automation
Item:
Gyro Heading Sensor
Dimension:
60 X 59 X 25.5mm
Weight:
160g
Connector:
CAN2.0A/CAN2.0B
Power Supply:
9~36v
MTBF:
>50000 Hours/times
Azimuth Accuracy:
0.1deg
Resolution:
0.01deg
Water Proof:
IP67
Application:
Industrial Automation
Item:
Gyro Heading Sensor
Dimension:
60 X 59 X 25.5mm
Weight:
160g
Connector:
CAN2.0A/CAN2.0B
Power Supply:
9~36v
MTBF:
>50000 Hours/times
Azimuth Accuracy:
0.1deg
Resolution:
0.01deg
Water Proof:
IP67
Description
TL740D CAN2.0A 3D Digital Compass TL740D 3 Axis Accelerometer Gyroscope

TL740D CAN2.0A 3D Digital Compass TL740D 3 Axis Accelerometer Gyroscope

Product Overviews

▶ KEY FEATURES

★ Azimuth angle output ★ Strong vibration resistance ★ Light weight

★ Long life,strong stability ★ Cost-effective ★ All solid state

★ Compact & light design ★ CAN2.0A/CAN2.0B output optional ★ DC9~36V power supply





▶ APPLICATION

★ AGV truck ★ Car Navigation ★ 3D virtual reality

★ Platform stability ★ Auto safety system ★ Robot

★ Turck-mounted satellite antenna equipment ★ Industrial control



▶ GENERAL DESCRIPTION

TL740D is RION-TECH newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION-TECH Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

This product is specially used for robot car, AGV vehicle azimuth orientation, attitude control and other related applications , instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.



TL740D PARAMETERS
Mesure range Azimuth Angle (±180°)
Acquisition bandwidth >100Hz
Resolution 0.01°
Azimuth accuracy <0.1°/min
positional accuracy <2mm/m (converted from angle accuracy)
Nonlinear 0.1% of FS
Max angle rate 150°/s
Acceleration range ±4g
Acceleration resolution 0.001g
Acceleration accuracy 5mg
Starting time 5s(Static)
Input Voltage +9V~36V
Current 60mA(12V)
Working Temp. -40 ~ +85℃
Storage Temp. -40 ~ +85℃
Vibration 5g~10g
Impact 200g pk,2ms,½sine
Working life 10 years
Output rate 1Hz~100Hz can set
Output signal CAN2.0A / CAN2.0B
MTBF ≥98000 hours /times
Insulation resistance ≥100 Megohm
Impact resistance 100g@11ms / 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms / 10~1000Hz
Protecting IP67
Weight 130g(Without cable)
