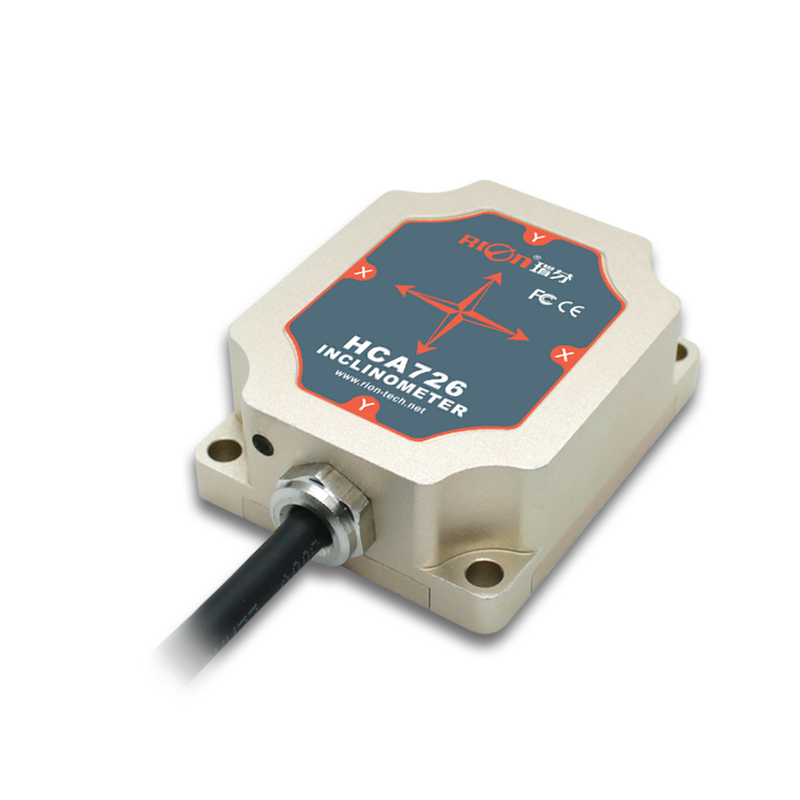

HCA716S/HCA726S High Accuracy CANopen Tilt Sensor for Industrial Inclination Measurement

Name: HCA716S/HCA726S High Accuracy CANopen Tilt Sensor for Industrial Inclination Measurement
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCA716S/HCA726S
Price: 225 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, FCC , ROHS

Model Number: HCA716S/HCA726S

Document: HCA716 HCA726 CANopen TILT ...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $225/Pieces

Packaging Details: carton packing

Delivery Time: 1~2 weeks

Payment Terms: T/T

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      High Accuracy CANopen Tilt Sensor, Industrial Inclination Measurement Sensor, Tilt Sensor with CANopen Interface


Accuracy:	Refer To The Technical Data	Protection Class:	IP67
Wide Voltage Input:	DC9~36V	Measuring Range:	±1~±180° Optional
Anti-vibration:	10grms / 10~1000Hz	Interface:	CANopen

Accuracy:	Refer To The Technical Data
Protection Class:	IP67
Wide Voltage Input:	DC9~36V
Measuring Range:	±1~±180° Optional
Anti-vibration:	10grms / 10~1000Hz
Interface:	CANopen

Description

HCA716S/HCA726S High Accuracy CANopen Tilt Sensor for Industrial Inclination Measurement

HCA716 HCA726 CANopen TILT SENSOR.pdf

PRODUCT DESCRIPTION

HCA716S/HCA726S is a small-sized single/dual axis tilt sensor designed for industrial field control, using CANopen communication interface. Built in high-precision 24 bit A/D differential converter, using a 5th order filtering algorithm, can measure the tilt and pitch angles of the sensor output relative to the horizontal plane. This product integrates high-tech MEMS tilt unit, with a measurement range of ± 180 degrees and a full range accuracy of 0.01 °, making it easy to achieve dual axis and single axis tilt measurement. The product is a truly industrial grade product with reliable and stable performance, good scalability, and a variety of outputs to choose from. Suitable for monitoring ancient buildings, dangerous buildings, ancient walls, and measuring industrial sites with high precision in large quantities.

PRODUCT FEATURES

Single/dual Axis Tilt sensor
Measuring Range :±1~±180° optional
Accuracy: refer to the technical data
Wide voltage input: DC9~36V
Wide temperature working: -40~+85℃
Resolution: 0.001°
IP67 protection class
Highly anti-vibration performance >100g
Direct lead cable interface
Small size : 54*46*20.5mm(customized)

APPLICATION

Monitoring of bridges and large lands
Leveling of construction vehicles
Mining machinery, oil drilling equipment
Medical equipment angle control
Railway gauge ruler and gauge leveling
Underground drilling rig attitude navigation
Geological equipment tilt monitoring
Monitoring of ancient buildings and dilapidated buildings
Elevation angle measurement of directional satellite communication antenna

SPECIFICATION

HCA716/726-C1		CONDITION	PARAMETER					UNIT
Measure range			±10	±30	±60	±90	±180	°
Measure axis			X Y	X Y	X Y	X Y	Vertical X axis	axis
Resolution			0.001	0.001	0.001	0.001	0.001	°
Measure accuracy	MAXE	Room temp.	0.008	0.01	0.01	0.02	0.02	°
Measure accuracy	RMSE	Room temp.	0.004	0.005	0.005	0.006	0.006	°
Long temp. stability			<0.02					°
Zero Temp.coefficient		-40~85℃	±0.0005					°/℃
Sensitivity temp-coeffi		-40~85℃	≤0.01					%/℃
Power on time			0.5					S
Response frequency			20					Hz
Interface		CANopen
EMC		According to EN61000 and GBT17626
MTBF		≥98000 Hours/times
Insulation Resistance		≥100M
Shockproof		100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms / 10~1000Hz
Protection grade		IP67
Cables		Standard 1M length / wear proof / grease proofing / wide temperature, Shielded cables 4*0.2mm2
Weight		≤150g (including 1 meter cable)

Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value.
MAXE: refers to the biggest error of the product within the range and at multiple angle points.
RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).
Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.
