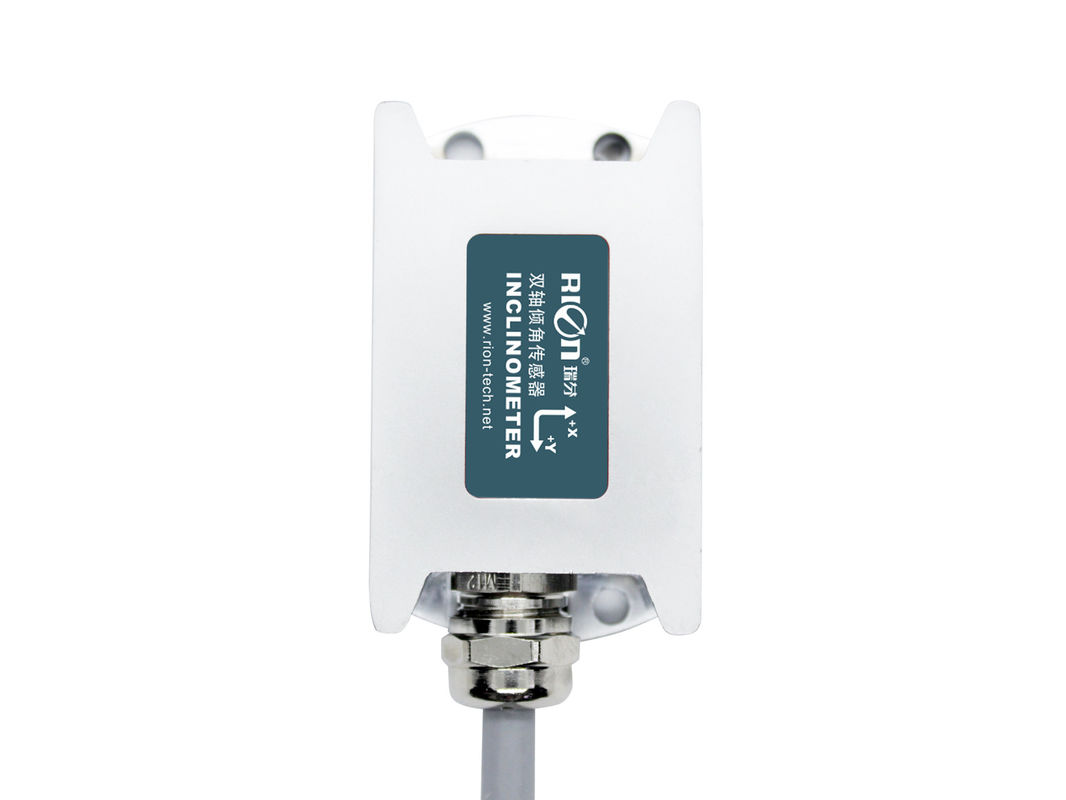

PV Tilt Sensor Inclinometer Anti-vibration For Solar Tracking

Excellent anti-vibration performance PV tilt sensor inclinometer for solar tracking

General Description

MCA416/426Tseriesinclinationsensorisanewlow-costfulattitude tiltangle measurement productindependentlydeveloped by RlON.Adopting the latest anti-interference platform design, integratingnewmicro-mechanicalsensingunit, wide temperature working performance, excelentanti-vibration performance, stable and reliablelong-termwork, and effective working life of up to 10 years.​ This product uses a non-contact principle to measure the tiltangle of an object, and calculates the real-time tilt angle by measuring the component produced by the earth's gravity through an internal capacitive micromechanical unit. The installation is simple and convenient, and it only needs to be fixed on the object to be tested, and does not need to fix the shaft and the rotating shaft. A variety of installation methods to meet customer measurement needs. lt is an ideal accessory for engineering machinery, agricultural machinery, and other industrial equipment.

Feature

●Resolution:0.1°

●Six installation methods

●Zero set function
●IP67

●Output:RS232/RS485/TTL

●Power supply: 9~36V
●Work temperature:-40~+85°

●High anti-0shock>3500g

APPLICATION

●Agricultural machinery

●Lifting machinery

●Crane

●Aerial platform

●Solar tracking system

●Medical equipment

●Electric vehicle control

▶ PARAMETERS
