HDA436T HIGH-IMPACT DYNAMIC INCLINOMETER, MODBUS, 9-AXIS OUTPUT

Name: HDA436T HIGH-IMPACT DYNAMIC INCLINOMETER, MODBUS, 9-AXIS OUTPUT
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HDA436T-232
Price: 150.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436T-232

Document: HDA436T DIGITAL OUTPUT DYNA...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $150.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T,PayPal

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              high intensity impact dynamic inclinometer, modbus dynamic inclinometer, 9 axis dynamic inclinometer


Output:	RS232	Output Type:	RS232,RS485,TTL,MODBUS , CAN2.0
Operating Temperature:	-40C° ~ +85C °	Measure Axis:	X Axis / Y Axis / Z Axis
Zero Temperature Coefficient:	±0.01 °/℃	Sensitivity Temperature Coefficient:	≤100ppm/℃
Response Time:	0.01s	Static Accuracy:	± 0.05°

Output:	RS232
Output Type:	RS232,RS485,TTL,MODBUS , CAN2.0
Operating Temperature:	-40C° ~ +85C °
Measure Axis:	X Axis / Y Axis / Z Axis
Zero Temperature Coefficient:	±0.01 °/℃
Sensitivity Temperature Coefficient:	≤100ppm/℃
Response Time:	0.01s
Static Accuracy:	± 0.05°

Description

HDA436T HIGH-IMPACT DYNAMIC INCLINOMETER, MODBUS, 9-AXIS OUTPUT

Product Attributes

Output	RS232
Output Type	RS232, RS485, TTL, MODBUS, CAN2.0
Operating Temperature	-40°C ~ +85°C
Measure axis	X axis / Y axis / Z axis
Zero temperature coefficient	±0.01 °/℃
Sensitivity temperature coefficient	≤100ppm/℃
Response time	0.01s
Static accuracy	± 0.05°

Key Features

Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
Roll & Pitch Dynamic accuracy: ± 0.1°
Static accuracy: ± 0.05°
RS485/232/TTL output Optional
DC 9~36V wide voltage input
Wide temperature operation -40~+85℃
IP67/IP68 Protection level Optional

Product Application

High-impact vibration environment equipment
Train/rail vehicle dynamic monitoring
Antenna alignment and attitude sensing for satellite ground vehicles
TBM (Tunnel Boring Machine) directional navigation
Guidance system for pipe jacking construction
Geological survey and inclinometer system
Borehole drilling trajectory and tilt measurement
Ship orientation and tilt tracking
Orientation measurement via tilt sensing technology
Downhole drilling attitude and angle tracking
Inclination monitoring for heavy engineering equipment

Product Description

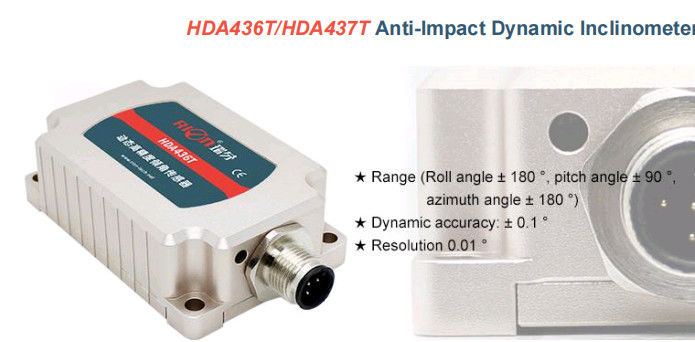

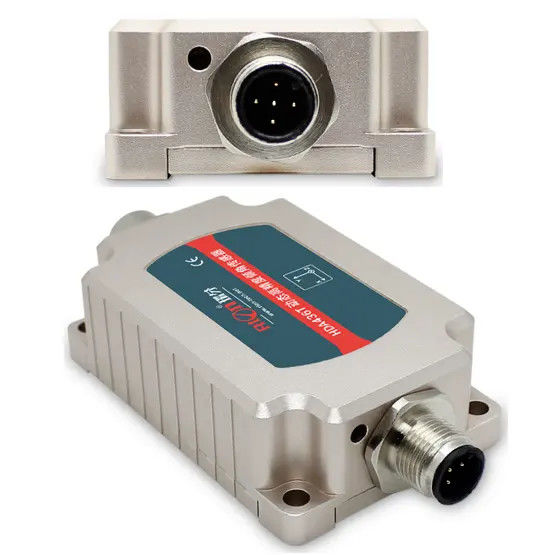

HDA436T/HDA437T is a new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and is suitable for tilt angle measurement under motion or vibration.

Specifications

Parameter	Condition	Value
Measure range	-	Roll±180°, pitch±90°, azimuth±180° (initial value at power-down is 0°)
Measure axis	-	X axis / Y axis / Z axis
Roll & Pitch Static accuracy	-	± 0.05°
Roll & Pitch Dynamic accuracy	@25℃	± 0.1°
Gyro range	-	±250°/s
Zero bias stability (10s Smooth)	-	8.5°/h
Angle random walk coefficient (allan)	-	0.25°/sqrt(h)
Acceleration range	-	±8g
Bias stability (10s mean)	-	0.1mg
Bias instability (allan)	-	0.005mg
Speed random walk coefficient (allan)	-	0.005m/s/sqrt(h)
Zero point temp. Coefficient	-40～85℃	±0.01°/℃
Sensitivity temp. Coefficient	-40～85℃	≤100ppm/℃
Power-on startup time	-	≤3.5S
Response time	-	0.01S
Output signal	-	RS485/RS232/TTL
Electromagnetic compatibility	-	According to EN61000 and GBT17626
MTBF	-	≥98000 hours / time
Insulation resistance	-	≥100 Megohm
Impact resistance	-	100g @ 11ms, 3 axial direction (half sinusoid)
Anti-vibration	-	10grms/10～1000Hz
Waterproof level	-	Standard IP67, optional IP68 and corrosion-resistant IP68 protection level
Cable	-	Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight	-	Standard shell ≤ 165g, IP68 shell ≤ 510g (including 1m cable)

1) Accuracy: refers to the root mean square difference between the measured and actual angle value by multiple measurements (>16 times) under normal temperature.
2) Zero temp.drift coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
3) Sensitivity temp.drift coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

Electrical Parameters

Parameter	Condition	Min	Typ	Max	Unit
Supply voltage	standard	9	12	24	36 V
Working current	without load		60mA(12V)		mA
Operating temp		-40		+85	℃
Storage temp		-40		+85	℃

Product Images
