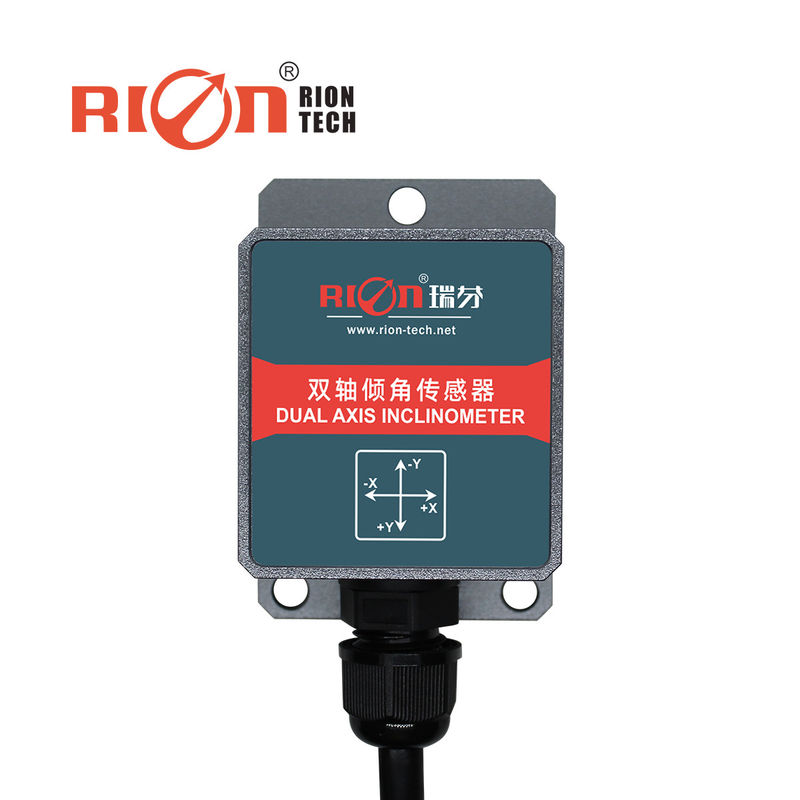

LCA310T / LCA320T Voltage Type Mini Inclinometer High Accuracy Tilt Sensor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: LCA310T-V1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $55.00/Pieces >=1 Pieces

Packaging Details: cartons

Delivery Time: 7 days

Payment Terms: T/T

Supply Ability: 30000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

voltage type mini inclinometer

,

high accuracy mini inclinometer

,

analog sensor mini inclinometer

Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Standard Accuracy:
0.1°
Port:
HK
Small Size:
29mm
Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Standard Accuracy:
0.1°
Port:
HK
Small Size:
29mm
Description
LCA310T / LCA320T Voltage Type Mini Inclinometer High Accuracy Tilt Sensor

LCA310T/LCA320T Factory Direct Supply Low Cost Voltage Type Mini Inclinometer High Accuracy Tilt Sensor





Datasheet download please click below

LCA310T LCA320T VOLTAGE low cost inclinometer sing...





▶ MAIN FEATURES



★ Single and biaxial inclination measurement

★ Any range within 360 ° is optional

★ Accuracy: 0.1 °

★ Wide voltage input 9~36V

★ Output mode 0~5V

★ Wide temperature operation -40~+ 85 ℃

★ IP67 protection level

★ High anti-vibration performance> 3500g

★ Resolution 0.02 °

★ Small size 55 × 37 × 24mm (customizable)



APPLICATION RANGE



★ Electric blind chair leveling

★ Gimbal operation monitoring

★ Satellite antenna positioning

★ Medical bed level

★ Car chassis measurement

★ Four-wheel positioning system

★ Various engineering machinery angle control





▶ INTRODUCTION



LCA310T/LCA320T is a small-volume low-cost single-axis tilt sensor developed by RION technology. The output voltage is internally quadratic linearity corrected. It is a linearity voltage output tilt sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in tilting unit of the latest technology micro-electromechanical production process, the volume is small, the power consumption is low, and the consistency and stability of the micro-electromechanical process are very high. The working temperature reaches industrial level -40 ~ +85 ℃, which is a high cost performance Inclination module.

This product adopts the non-contact measurement principle, which can output the current inclination angle in real time. It is simple to use, small size, strong resistance to external electromagnetic interference, and strong ability to withstand shock and vibration; it is an ideal choice for industrial equipment and platform measurement attitude!





▶ SPECIFICATIONS



LCA310T / LCA320T Voltage Type Mini Inclinometer High Accuracy Tilt Sensor 1LCA310T/LCA320T CONDITION PARAMETER UNIT
Measure range   ±30 ±60 ±90 0~360 °
Measure axis   X Y X Y X Y X Axis
Zero output 0° output 2.5 2.5 2.5 2.5 V
Resolution   0.02 0.03 0.05 0.08 °
Measure accuracy @25℃ 0.1 0.1 0.15 0.2 °
Long term. stability   <0.5 <0.5 <0.5 <0.5 °
Zero Temp.coefficient -40~85℃ ±0.02 ±0.02 ±0.02 ±0.02 °/℃
Sensitivity temp-coeffi -40~85℃ ≤150 ≤150 ≤150 ≤150 ppm/℃
Power-on start time   0.5 0.5 0.5 0.5 S
Response frequency   20 20 20 20 Hz
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/times
Insulation Resistance ≥100 MΩ
Impact resistance 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2
Weight ≤135g (including 1 meter cable)





LCA310T / LCA320T Voltage Type Mini Inclinometer High Accuracy Tilt Sensor 2





LCA310T / LCA320T Voltage Type Mini Inclinometer High Accuracy Tilt Sensor 3



LCA310T / LCA320T Voltage Type Mini Inclinometer High Accuracy Tilt Sensor 4
