HCA518 HIGH RESOLUTION 0.001 ° OUTPUT MODE 4-20MA TILT SENSOR
HCA518 HIGH RESOLUTION 0.001 ° OUTPUT MODE 4-20MA TILT SENSOR
▶ INTRODUCTION

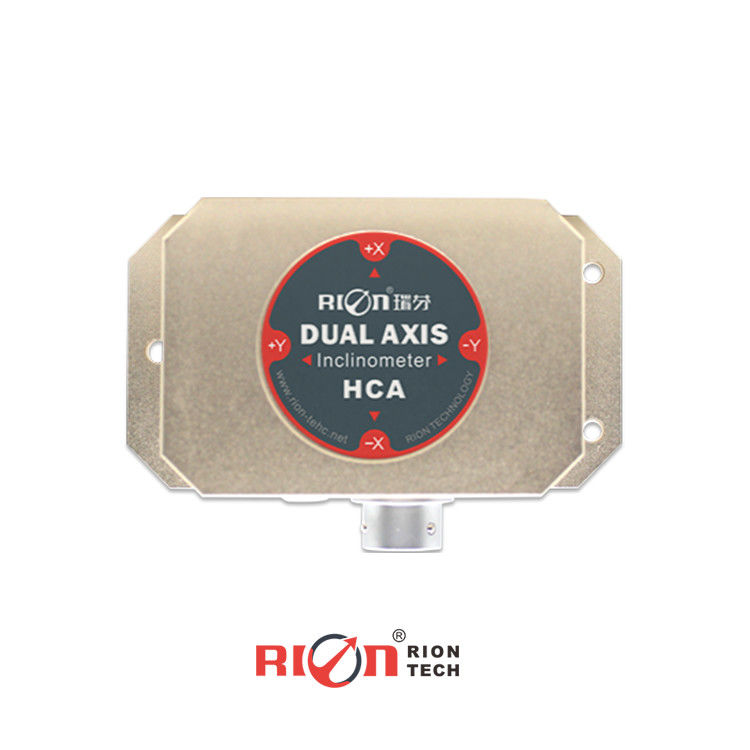

HCA518T&HCA528T is a high accuracy single /dual axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS high technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range and the highest accurate up to 0.005 ° (bigger measuring range index, please refer to product technical data),
HCA518T&HCA528T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safety extraordinary operation in harsh environments.
▶ FETURES
★ Single / dual axis inclination measurement
★ Range ± 1～± 60° optional
★ Wide voltage input 9～36V
★ High vibration resistance> 2000g
★ Output mode 4-20mA
★ Wide temperature operation -40～+ 85 ℃
★ IP67 protection
★ High resolution 0.001 °
★ Small size L90mm × W50mm × H34mm (customizable)
▶APPLICATION
★ Engineering vehicle leveling
★ Bridge and large monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Railway gauge and gauge leveling
★ Mining machinery, oil drilling equipment
★ Geological equipment tilt monitoring
▶SPECIFICATION
|
 HCA518&528T
|
CONDITION
|
PARAMETERS
|
UNIT
|
|
Measure range
|
|
±10
|
±30
|
±60
|
°
|
|
Measure axis
|
|
X / XY
|
X / XY
|
X / XY
|
axis
|
|
Zero output
|
0° output
|
12
|
12
|
12
|
mA
|
|
Resolution
|
|
0.001
|
0.001
|
0.001
|
°
|
|
Measure accuracy
|
@25℃
|
0.005
|
0.01
|
0.02
|
°(RMS)
|
|
Long term stability
|
|
0.01
|
0.02
|
0.05
|
°
|
|
Zero Temp. coefficient
|
-40～85℃
|
±0.002
|
±0.002
|
±0.002
|
°/℃
|
|
Sensitivity temp. coefficient
|
-40～85℃
|
≤50
|
≤50
|
≤50
|
ppm/℃
|
|
Response time
|
|
0.02
|
0.02
|
0.02
|
s
|
|
Sensitivity temp. coefficient
|
|
20
|
20
|
20
|
Hz
|
|
EMC
|
According to EN61000 and GBT17626
|
|
MTBF
|
≥50000 hours/times
|
|
Insulation Resistance
|
≥100MΩ
|
|
Shockproof
|
100g@11ms,3 Axial Direction (Half Sinusoid)
|
|
Anti-vibration
|
10grms,10～1000Hz
|
|
Protection glass
|
IP67
|
|
Cables
|
Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 4*0.4mm2 aviation connector
|
|
Weight
|
≤250g(without cable )
|
▶ ELECTRONIC CHARACTERISTICS
|
PARAMETERS
|
CONDITIONS
|
MIN
|
STANDARD
|
MAX
|
UNIT
|
|
Power supply
|
Standard
|
9
|
12,24
|
36
|
V
|
|
Working current
|
No load
|
|
40
|
|
mA
|
|
Output load
|
Resistive
|
|
240
|
1000
|
kΩ
|
|
Working temperature
|
|
-40
|
|
+85
|
℃
|
|
Store temperature
|
|
-40
|
|
+85
|
℃
|
