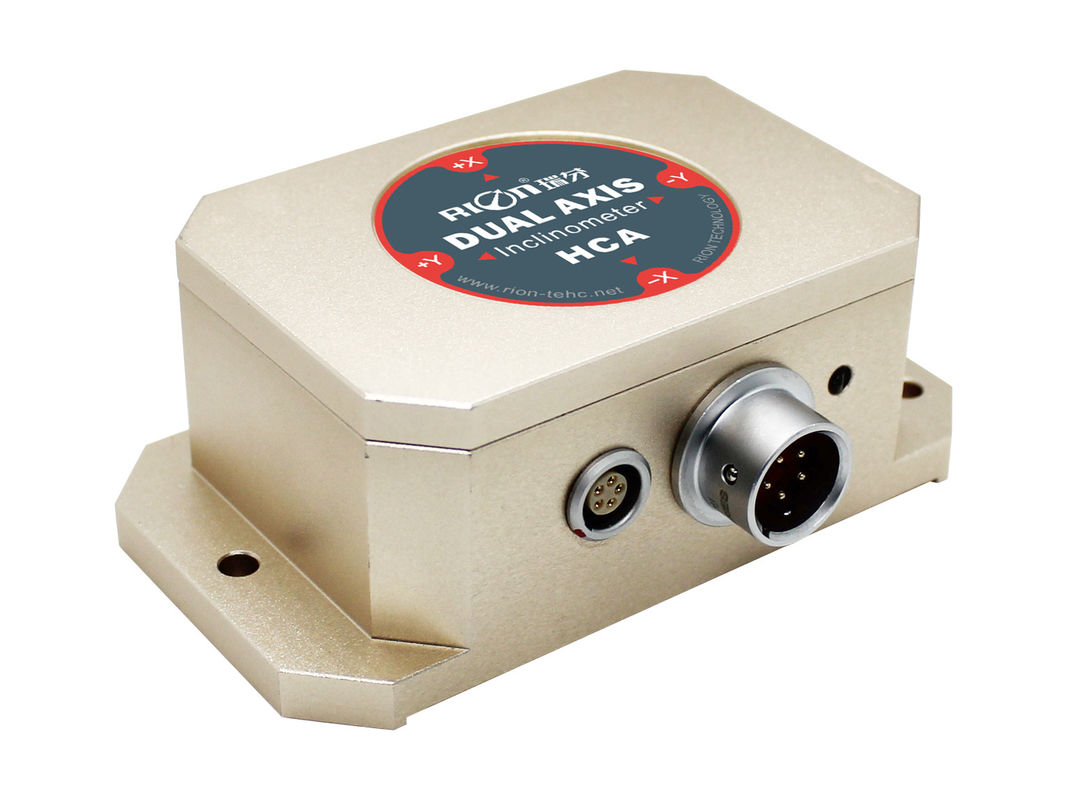

HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ± 1～± 60° optional
★ Accuracy:0.005°
★ Wide voltage input 9 ～ 36V
★ Output mode 0～5V
★ IP67 protection
★ Wide temperature operation -40 ～ + 85 ℃
★ High vibration resistance> 2000g
★ Small size L90mm × W50mm × H34mm (customizable)
★ High resolution 0.001 °
▶APPLICATION
★ Equipment vehicle leveling
★ Bridge and Dam monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle
★ Tilt monitoring of geological equipment
★ Pitch angle measurement of directional satellite communication antenna
★ Mining machinery, oil drilling equipment
★ Equipment level control
★ Alignment control , curve control
▶ INTRODUCTION
HCA510T & HCA520T is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.
Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
▶SPECIFICATION
HCA510&520T
CONDITION
PARAMTERS
UNIT
Measurerange
±10
±30
±60
°
Measureaxis
X/ XY
X/ XY
X/ XY
axis
Zero output
0°output
2.5
2.5
2.5
V
Resolution
0.001
0.001
0.001
°
Measureaccuracy
@25℃
0.005
0.01
0.02
°(RMS)
Long termstability
0.01
0.02
0.05
°
ZeroTemp. coefficient
-40～85℃
±0.002
±0.002
±0.002
°/℃
Sensitivity temp. coefficient
-40～85℃
≤100
≤100
≤100
ppm/℃
Power on time
0.5
0.5
0.5
S
Response frequency
20
20
20
Hz
EMC
According to EN61000and GBT17626
MTBF
≥50000hours/times
Insulation Resistance
≥100MΩ
Shockproof
100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration
10grms,10～1000Hz
Protection glass
IP67
Cables
Standard configuration: 1m length, wear-resistant,wide temperature, shielded cable5*0.4mm2aviation connector
