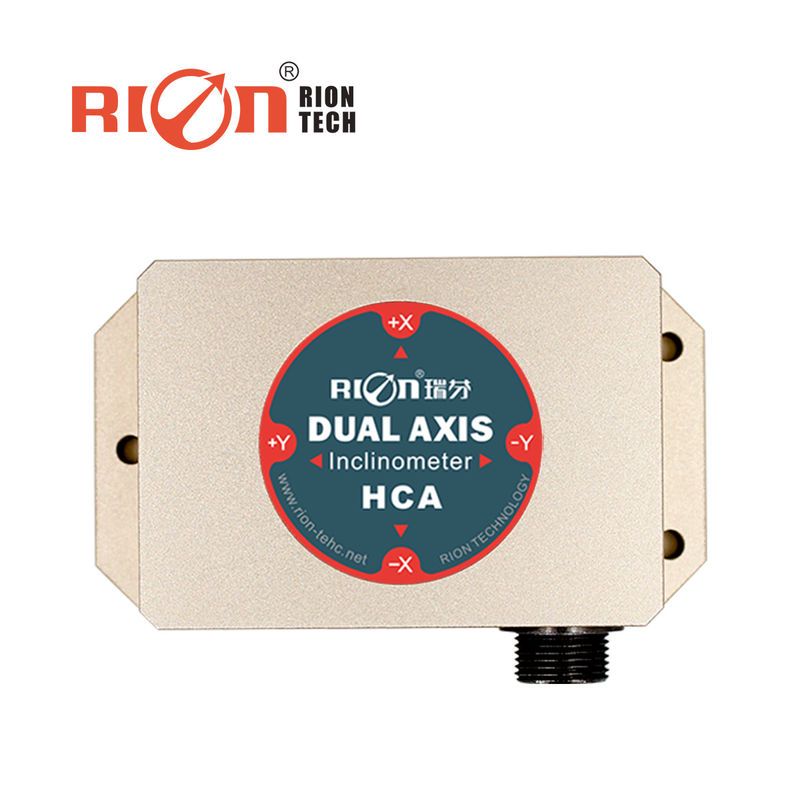

HCA528T Biaxis MEMS Inclination Sensor High Precision RION angle tilt sensor

Name: HCA528T Biaxis MEMS Inclination Sensor High Precision RION angle tilt sensor
Brand: RION
SKU: HCA528T-A1-30
Price: 328.00 USD
Availability: InStock
Rating: 4.7 (139 reviews)

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: HCA528T-A1-30

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $328.00/Pieces

Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      HCA528T MEMS Inclination Sensor, Biaxis MEMS Inclination Sensor, High Precision mems tilt sensor


Tilt Sensor Measuring Axis:	Dual Axis ( Biaxis)	Range:	± 1 ~ ± 85 ° Optional
Wide Voltage Input:	DC9-36V	Output Model:	4-20mA
Protection:	IP67	Working Temperature:	40 ~ + 85 ℃
High Vibration Resistance:	>2000g	High Resolution:	0.001 °
Size:	L90mm W50mm H34mm (customizable)	Best Accuracy:	0.002 ° @range +/-3deg

Tilt Sensor Measuring Axis:	Dual Axis ( Biaxis)
Range:	± 1 ~ ± 85 ° Optional
Wide Voltage Input:	DC9-36V
Output Model:	4-20mA
Protection:	IP67
Working Temperature:	40 ~ + 85 ℃
High Vibration Resistance:	>2000g
High Resolution:	0.001 °
Size:	L90mm W50mm H34mm (customizable)
Best Accuracy:	0.002 ° @range +/-3deg

Description

HCA528T Biaxis MEMS Inclination Sensor High Precision RION angle tilt sensor

HCA528T Biaxis MEMS Inclination Sensor High Precision RION angle tilt sensor

General Description

HCA518T&HCA528T is a high accuracy single /dual axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS high technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range and the highest accurate up to 0.003 ° (bigger measuring range index, please refer to product technical data), HCA518T&HCA528T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safety extraordinary operation in harsh environments.

Key Features

★ Single / dual axis inclination measurement ★ Range ± 1 ～ ± 60 ° optional ★ Accuracy: Refer to technical data ★ Wide voltage input 9 ～ 36V ★ Output mode 4-20mA ★ Wide temperature operation -40 ～ + 85 ℃ ★ IP67 protection ★ High vibration resistance> 2000g ★ High resolution 0.001 ° ★ Small size L90mm × W50mm × H34mm (customizable)

Application

★ Attitude navigation of underground drilling rig ★ Leveling of railway gauge and gauge ★ Direction measurement based on tilt angle ★ Tilt monitoring of geological equipment ★ Mining machinery, oil drilling equipment ★ Equipment level control ★Alignment control , curve control ★ Pitch angle measurement of directional satellite communication antenna

Specification

Measure range		±10	±30	±60	°
Measure axis		X , Y	X ,Y	X,Y
Zero output	0° output	12	12	12	mA
Resolution		0.001	0.001	0.001	°
Measure accuracy	@25℃	0.005	0.01	0.02	°
Long term stability		0.01	0.02	0.05	°
Zero Temp. coefficient	-40～85℃	±0.002	±0.002	±0.002	°/℃
Sensitivity temp. coefficient	-40～85℃	≤50	≤50	≤50	ppm/℃
Power on time		0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	S
Sensitivity temp. coefficient		1～20	1～20	1～20	Hz
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection Grade	IP67
Cables	Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 4*0.4mm2 aviation connector
Weight	190g(without cable )

This parameter only list ± 10 °, ± 30 °, ± 60 ° series for reference. For other measurement ranges, please refer to the nearest neighbor parameter.

▶ ELECTRONIC CHARACTERISTICS

PARAMETERS	CONDITIONS	MIN	STANDARD	MAX	UNIT
Power supply	Standard	9	12,24	36	V
Working current	No load		40		mA
Output load	Resistive		400	1000	kΩ
Working temperature		-40		+85	℃
Store temperature		-40		+85	℃

▶ ORDER INFORMATION

HCA528T Biaxis MEMS Inclination Sensor High Precision RION angle tilt sensor 3

▶ DIMENSION

HCA528T Biaxis MEMS Inclination Sensor High Precision RION angle tilt sensor 5

▶ MEASURING DIRECTIONS

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically , for installation please refer to the following scheme, and please confirm with us before order production .

FAQ

Q: How to choose suitable products before ordering? A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price. Q: What's kind of payment methods ? A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible. Q: How about lead time for order ? A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay. Q: How about quality inspection before shipment ? We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment . Q: What's the transportation methods ? A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder . Q: How about after-sale service ? A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible. Q: How about product warranty and repair service? A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a rea
