quality solar tracking angle control sensors high accuracy PV tilt sensor low cost NCU pitch roll sensor for solar tracking
General Description

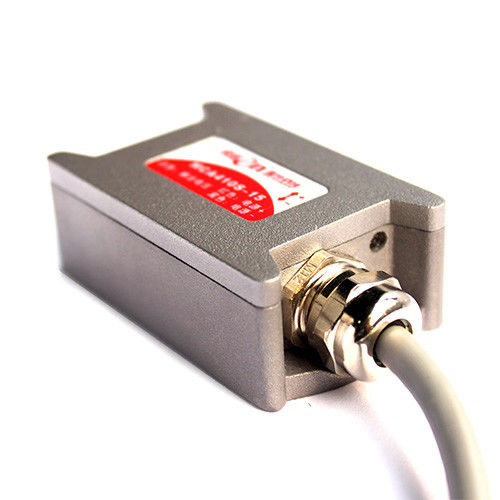

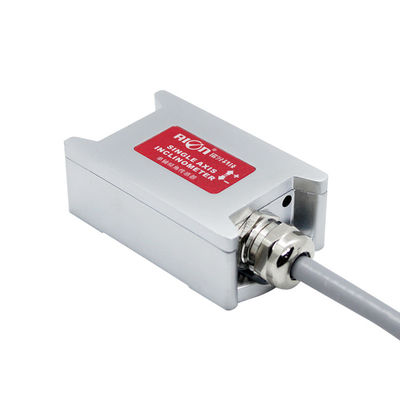

MCA426M is a MODBUS output inclinometer designed especially for industrial position control. It adopts RS485 hardware differential bus transmit data. It built-in high accuracy 12 bit A/D differential conventor, using third order filter algorithm to measure the pitch and roll angle relate to horizontal level. It could redress the temperature drift according to the inside temperature change because of the built-in ADI company's high accuracy digital temperature sensor, ensuring the high repeatability when it is under high and low temperature. The output respond frequency could reach 20Hz, high frequency could be customized. It is industrial level product with reliable performance, good expandability, multiple output types are optional, and it could apply to kinds of harsh industrial working condition.
Feature
●single/dual axis
●measuring range ±45°
●accuracy:±0.5°
●DC 9~36V input
●working temp-40~+85℃
●resolution: 0.1°
●IP66
●anti-shock>2000g
●direct lead interface
●size:L61×W35×H21mm
●output type: MODBUS
|
Item
|
Conditions
|
≤±30°
|
≤±60°
|
≤±90°
|
≤±360°
|
Unit
|
|||||
|
Resolution
|
|
|
|
|
|
°
|
|||||
|
Accuracy
|
25℃
|
|
|
|
|
°
|
|||||
|
Response time
|
|
|
|
|
|
S
|
|||||
|
|
-5~55℃
|
±0.5
|
±0.5
|
±0.5
|
±0.5
|
°
|
|||||
|
|
-25~70℃
|
±0.7
|
±0.7
|
±0.7
|
±0.7
|
°
|
|||||
|
|
-40~85℃
|
±0.8
|
±0.8
|
±0.8
|
±0.8
|
°
|
|||||
|
Output load
|
>500 ohm
|
|
|
|
|
|
|||||
|
Working time
|
50000 hours/time(no fault)
|
|
|
|
|
|
|||||
|
Insulation resistance
|
>100 ohm
|
|
|
|
|
|
|||||
|
Anti-shock
|
10grms,10~1000Hz
|
|
|
|
|
|
|||||
|
Impact resistance
|
100g@11ms,times/axis(half sinusoid)
|
|
|
|
|
|
|||||
|
Weight
|
60g
|
|
|
|
|
|
|||||
|
Certificate
|
CE;FCC;CCC;
|
|
|
|
|
|
|||||
|
Production standard
|
GB/T 191 SJ 20873-2003 tilt sensor,level sensor general specification
|
|
|
|
|
|
|||||
|
Quality system
|
ISO9001:2008 standard(certificate No.:128101)
|
|
|
|
|
|
|||||
Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP
Q2. What is your terms of payment?
A: T/T 100% , Paypal, or Alibaba
Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation
Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
