HCA526T MEMS Digital HCA526T Tilt Detector Inclinometer Attitude Measurement

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: HCA526T-232-30

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $328.00/Pieces >=1 Pieces

Packaging Details: 1pcs inclinometer /box, 100pcs/ctn

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

MEMS Digital tilt detector inclinometer

,

HCA526T tilt detector inclinometer

,

attitude measurement mems tilt sensor

Usage:
Tilt Sensor
Precision:
Can Be 0.002deg
Resolution:
0.001deg
Protection:
IP67
Power Supply:
DC9-36V
Output Mode:
Digital
Interface Port:
RS232,RS485 Or TTL Optioinal
Axis:
Dual Axis
Dimension:
90*45*29mm
Shockproof:
Shockproof>20000g
Theory:
Capacitance Sensor
Port:
HK
Usage:
Tilt Sensor
Precision:
Can Be 0.002deg
Resolution:
0.001deg
Protection:
IP67
Power Supply:
DC9-36V
Output Mode:
Digital
Interface Port:
RS232,RS485 Or TTL Optioinal
Axis:
Dual Axis
Dimension:
90*45*29mm
Shockproof:
Shockproof>20000g
Theory:
Capacitance Sensor
Port:
HK
Description

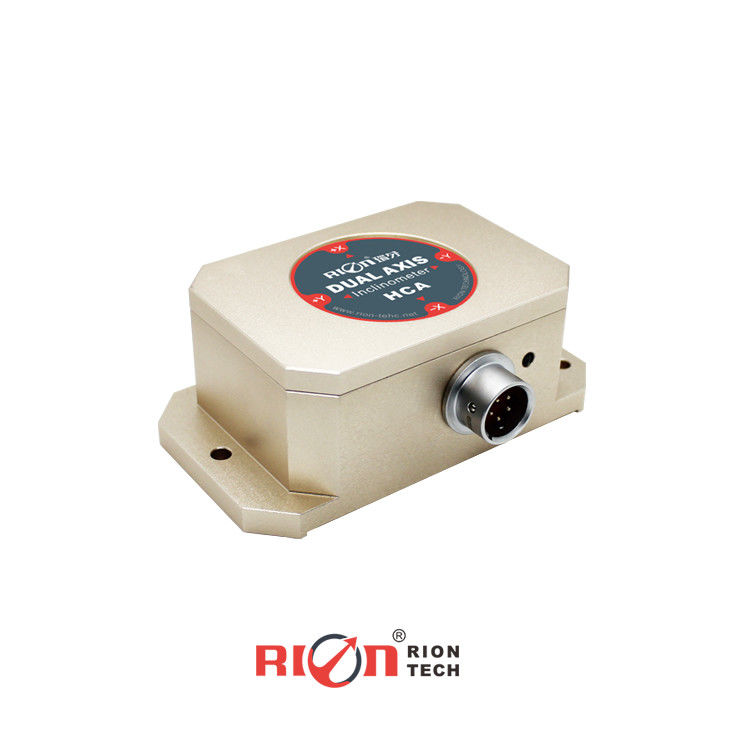

HCA526T MEMS Digital HCA526T Tilt Detector Inclinometer Attitude Measurement

HCA526T MEMS Digital HCA526T Tilt Detector Inclinometer Attitude Measurement



FEATURES

★ Single/Dual-Axis Inclinometer

★ Measuring Range :±1~±90° optional

★ Wide voltage input: 9~36V

★ Wide temperature working: -40~+85℃

★ Resolution: 0.001°

★ Water-proof air-plug connector

★ IP67 protection class

★ Highly anti-vibration performance >2000g

★ Small size :90×50×34mm(customized)



APPLICATION

★ Railway locomotive monitoring

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Direction measurement based on inclination

★ Oil drilling equipment

★ Ship navigation posture measurement

★ Radar vehicle platform detection

★ Shield pipe jacking application

★ Various construction machinery inclination measurement



▶ PRODUCT DESCRIPTION

The HCA516T/HCA526T series is a high-precision inclinometer introduced by RION, building upon the stable foundation of the SCA series, while significantly enhancing accuracy and improving temperature drift performance. The system features a built-in, high-precision 16-bit A/D differential converter and utilizes five filtering algorithms, allowing it to measure the angle of the sensor’s output in relation to both horizontal tilt and pitch tilt. Output interfaces available include RS485, RS232, RS422, and TTL.

In addition, the device is equipped with a digital temperature sensor from ADI, which compensates for temperature drift by adjusting based on changes detected by the integrated temperature sensor (temperature output is optional). This ensures exceptional repeatability even in extreme temperature conditions, both high and low. The output frequency response can reach up to 100Hz, with the option for higher frequency customization upon user request.

These products are true industrial-grade instruments, offering dependable performance and excellent scalability, making them well-suited for a wide range of demanding industrial control environments.



HCA516/526T CONDITION PARAMETERS UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X / XY X / XY X / XY X / XY AXIS
Resolution   0.001 0.001 0.001 0.001 °
Measure accuracy @25℃ 0.005 0.01 0.02 0.05 °
Long term stability   0.01 0.02 0.05 0.08 °
Zero Temp.coefficient -40~85℃ ±0.002 ±0.002 ±0.002 ±0.002 °/℃
Sensitivity temp-coeffi -40~85℃ ≤50 ≤50 ≤50 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 s
Response frequency 5Hz,15Hz,35Hz,50Hz
output signal RS232/RS485/RS422/TTL/CAN/MODBUS
EMC According to EN61000 and GBT17626
MTBF ≥50000hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
Weight 190g(without cable)
