High Accurate tilt angle Analog Inclinometer Temperature Output RION

High Accurate Digital Inclinometer With Temperature Output

Description

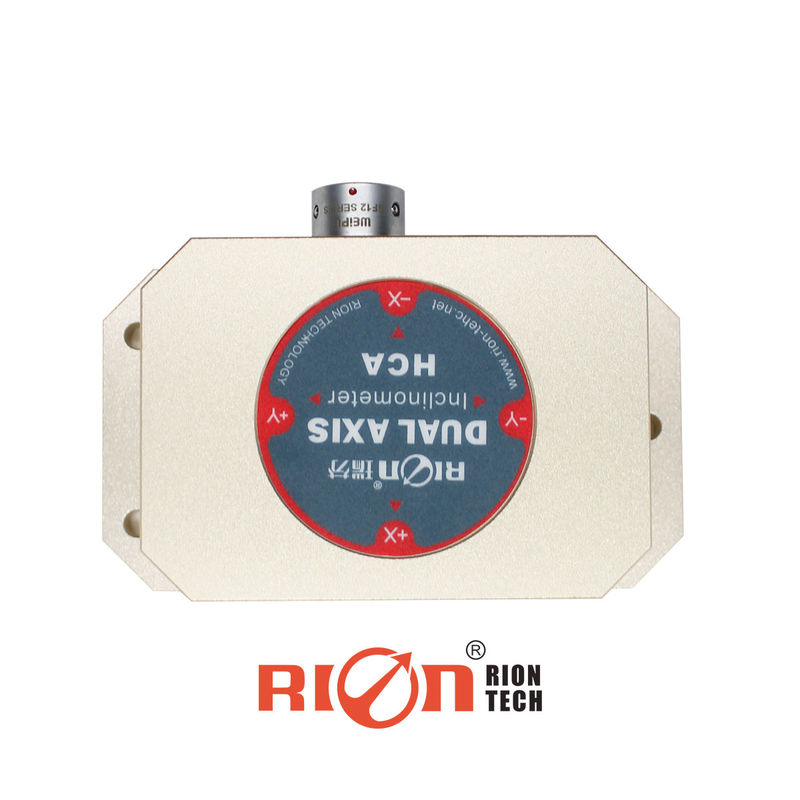

HCA526T is a Dual-Axis inclinometer (tilt sensor,angle sensor)which is researched and produced by Shenzhen RION with resolution:0.001degree , The maximum measuring range is±85degree. This series Output through serial interface RS232 ,RS485 or TTL.
As the built-in ADI's high-precision digital temperature sensor, Therefore,the output angle value have been revised again within the working temperature, To ensure high repeatability of products in wide temperature.
Sensor angle response speed is 20Hz, and has five filters. Product belongs to real industral grade and is suited for various of adverse industrial control circumstances it features stable and reliable performance, good expansibility and many kinds of output ways to be chosen.

Features

• Dual-Axis inclinometer
• DC 9-36V wide voltage power supply
• Shockproof>20000g
• Output RS232,RS485,TTL serial interface
• Full Metal Jacket,IP68 protection
• Resolution0.001°
• Wide Temperature-40-+85(Degrees Celsius)
• small size(90*45*29mm)

Application

• Satellite positioningSearch
• Rail-mobile monitoring
• Engineeringmechanical measurement of dip angle
• Mining mechanism,oil-well drilling equipment
• Radardetection of vehicle platform
• Gun Barrel angle measurement in early shooting

Specification

HCA516/526T	CONDITION	PARAMETERS				UNIT
Measure range		±10	±30	±60	±90	°
Measure axis		X / XY	X / XY	X / XY	X / XY	AXIS
Resolution		0.001	0.001	0.001	0.001	°
Measure accuracy	@25℃	0.005	0.01	0.02	0.05	°
Long term stability		0.01	0.02	0.05	0.08	°
Zero Temp.coefficient	-40～85℃	±0.002	±0.002	±0.002	±0.002	°/℃
Sensitivity temp-coeffi	-40～85℃	≤50	≤50	≤50	≤100	ppm/℃
Power on time		0.5	0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	0.02	s
Response frequency	5Hz,15Hz,35Hz,50Hz
output signal	RS232/RS485/RS422/TTL/CAN/MODBUS
EMC	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
Weight	190g(without cable)

Screen shot for HCA Series Software :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
