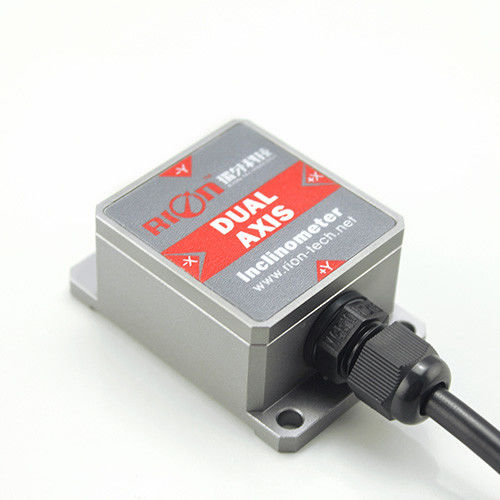

LCA328T Current Type Analog Inclinometer Cloud Deck Monitor Dual Axis Tilt Sensor Analog Inclinometer
General Description
The LCA328T series inclinometer which developed by Rion Company is a small volume MEMSdual-axis tilt sensor, because of built-in the latest MEMS production technology inclination unit, small size, long distance transmission can up to over 2000 Meters, strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment.
This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude !
Features
1.Dual-Axis Inclinometer
2.Measuring range±0°~±90° optional
3.Accuracy: refer to the technical data
4.Wide voltage input: 9~36V
5.Output mode: 4~20mA
6.Wide temperature working: -40~+85°C
7.IP67 protection class
8.Highly anti-vibration performance >3500g
9.Resolution: 0.05°
10Small Volume : 55×37×24mm(customized)
Application:
1.Electric blind man chair leveling
2.Cloud deck operating monitor
3.Satellite antenna positioning
4. Medical equipment leveling
5.Car Chassis Measurement
6. Four - wheeled positioning system
7.engineering mechanical measurement of dip angle
Technical Data
| Parameters Conditions LCA328T-10 LCA328T-30 LCA328T-60 LCA328T-90 Unit |
|
Measuring range |
|
±10 |
±30 |
±60 |
±90 |
° |
|
Measuring axis |
|
X,Y |
X,Y |
X,Y |
X,Y |
|
|
ZERO output |
0° output |
12 |
12 |
12 |
12 |
M A |
|
Resolution |
|
0.05 |
0.05 |
0.05 |
0.05 |
° |
|
Absolute accuracy |
|
0.1 |
0.1 |
0.2 |
0.2 |
° |
|
Long term stability |
|
0.2 |
0.2 |
0.25 |
0.26 |
|
|
Zero temperature coefficient |
-40~85° |
±0.008 |
±0.008 |
±0.008 |
±0.008 |
°/°C |
|
Sensitivity temperature coefficient |
-40~85° |
≤150 |
≤150 |
≤150 |
≤150 |
ppm/°C |
|
Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
|
Response time |
|
0.05 |
0.05 |
0.05 |
0.05 |
S |
|
Response frequence |
|
1~20 |
1~20 |
1~20 |
1~20 |
Hz |
|
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|||||
|
MTBF |
≥45000 hours/times |
|||||
|
Insulation Resistance |
≥100M |
|||||
|
Shockproof |
100g@11ms,3Times/Axis(half sinusoid)) |
|||||
|
Anti-vibration |
10grms,10~1000Hz |
|||||
|
Protection glass |
IP67 |
|||||
|
Cables |
Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables4*0.4mm2 |
|||||
|
Weight |
90g(without cable) |
|||||
*This Technical data only list ± 30 °, ± 60 °, ± 90 °, ± 360 ° series for reference, other measuring range please refer to the adjacent parameters.
