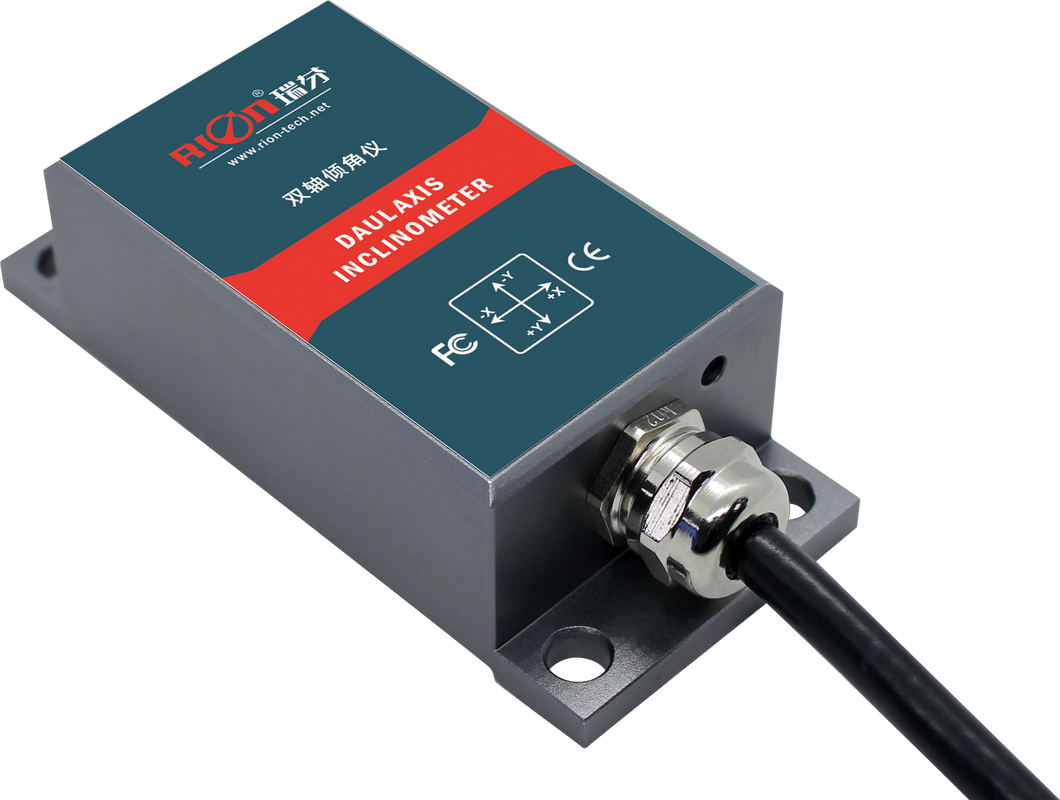

SCA118T/SCA128T 4-20mA Inclinometer for Construction and Drilling Equipment

SCA118T SCA128T CURRENT TYPE INCLINOMETER.pdf

▶ APPLICATION

• Leveling of construction vehicles
• Inclination monitoring of geological equipment
• Safety protection of high-altitude platforms
• Underground drilling rig attitude navigation
• Shield pipe jacking application
• Direction measurement based on inclination
• Equipment level control
• Mining machinery and oil drilling equipment
• Monitoring of bridges and Dadian

▶ WORKING PRINCIPLE

Adopt imported core control unit and apply the principle of capacitive micro-pendulum. Using the principle of earth's gravity, when the tilting unit tilts, the earth's gravity will produce a gravitational component on the corresponding pendulum, and the corresponding electric capacity will change. By amplifying and filtering the electric capacity, the inclination angle is obtained after conversion.

▶ MAIN FEATURE

• Single/dual Axis Inclinometer
• Measuring Range :±1~±180° optional
• Accuracy: 0.03°
• Wide voltage input: 9~36V
• Output current 4~20mA
• Wide temperature working: -40~+85℃
• IP67 protection class
• Highly anti-vibration performance >2000g
• Resolution: 0.01°
• Size: L94×W40×H26mm

▶ PARAMETERS

FAQ

1. How far can the 4-20mA inclinometer transmit signals?

The 4-20mA output supports long-distance transmission of up to 2000 meters, making the sensor suitable for large industrial equipment and remote monitoring applications.

2. What is the accuracy of the SCA118T/SCA128T?

The standard accuracy is 0.03°, while accuracy can reach 0.02° in a small measuring range. Specific performance depends on the selected measuring range.

3. Is the SCA118T/SCA128T suitable for harsh environments?

Yes. The inclinometer features IP67 protection, -40°C to +85°C operating temperature, strong vibration resistance and electromagnetic interference protection, making it suitable for demanding industrial environments.

4. What equipment can use the SCA118T/SCA128T?

Typical applications include construction machinery, drilling rigs, trenchless pipe jacking machines, mining equipment, oil drilling equipment, geological equipment and high-altitude platforms.

5. Can it be used for construction machinery leveling?

Yes. The SCA118T/SCA128T can be used for construction vehicle leveling, equipment level control and machinery inclination monitoring.
