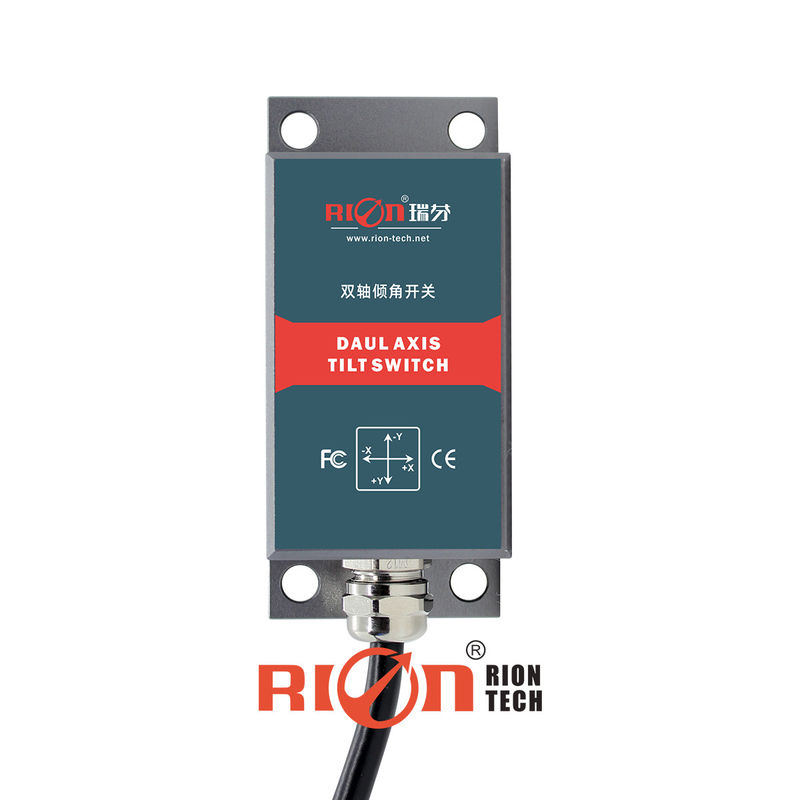

SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER ±180° TILT SENSOR WITH 0–5V OUTPUT

SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER  ±180° TILT SENSOR WITH 0–5V OUTPUT

Analog Voltage Output | MEMS Technology | Industrial-Grade Reliability

The SCA110T/SCA120T is a high-performance tilt sensor designed to measure inclination angles relative to the horizontal plane with exceptional accuracy. Utilizing MEMS-based micro-electromechanical pendulum technology, it converts static gravity field changes into analog voltage outputs (0–5V), enabling real-time attitude monitoring for industrial and safety-critical applications.

Key Features

• Dual-Axis Measurement (SCA120T) / Single-Axis (SCA110T)

• Wide Measuring Range: ±1° to ±180° (customizable)

• High Precision: Resolution up to 0.01°

• Robust Design:

  • IP67 protection (dustproof/waterproof)

  • Extreme Temperature Tolerance: –40°C to +85°C

  • Anti-Vibration >2000g | EMI-Resistant

• Wide Voltage Input: 9–36V DC

• Compact Size: 90×40×26mm (easy integration)

Applications

• Heavy Machinery: Leveling for construction vehicles, mining equipment, and oil rigs.

• Infrastructure Monitoring: Bridge deflection, dam tilt, and shield tunneling alignment.

• Safety Systems: High-altitude platform stabilization, anti-tip protection.

• Precision Control: Medical equipment, geological instruments, and pipe jacking.

• Industrial Automation: Conveyor belt tilt correction, robotic arm positioning.

Why Choose SCA110T/SCA120T?

• Non-Contact Measurement: Long lifespan, no mechanical wear.

• Plug-and-Play: Voltage output simplifies integration with PLCs, SCADA, or IoT systems.

• Reliable in Harsh Environments: Ideal for dust, moisture, and high-vibration scenarios.

Technical Support: Customizable ranges, OEM/ODM services available.

Optimization Highlights

1. Structure: Clear headings for quick scanning (Features/Applications/Benefits).

2. Technical Depth: Emphasizes MEMS technology and rugged specs (IP67, 2000g).

3. Application Focus: Links features to real-world use cases (e.g., mining, bridges).

4. Marketing Edge: "Why Choose" section highlights competitive advantages.

5. Conciseness: Removes redundancy while preserving critical details.
