Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: LCA310T-V1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $55.00/Pieces >=1 Pieces
Packaging Details: cartons
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 30000 Piece/Pieces per Month
Usage: |
Level Sensor |
Theory: |
Capacitance Sensor |
Output: |
Analog SENSOR |
Standard Accuracy: |
0.1° |
Port: |
HK |
Small Size: |
29mm |
Usage: |
Level Sensor |
Theory: |
Capacitance Sensor |
Output: |
Analog SENSOR |
Standard Accuracy: |
0.1° |
Port: |
HK |
Small Size: |
29mm |

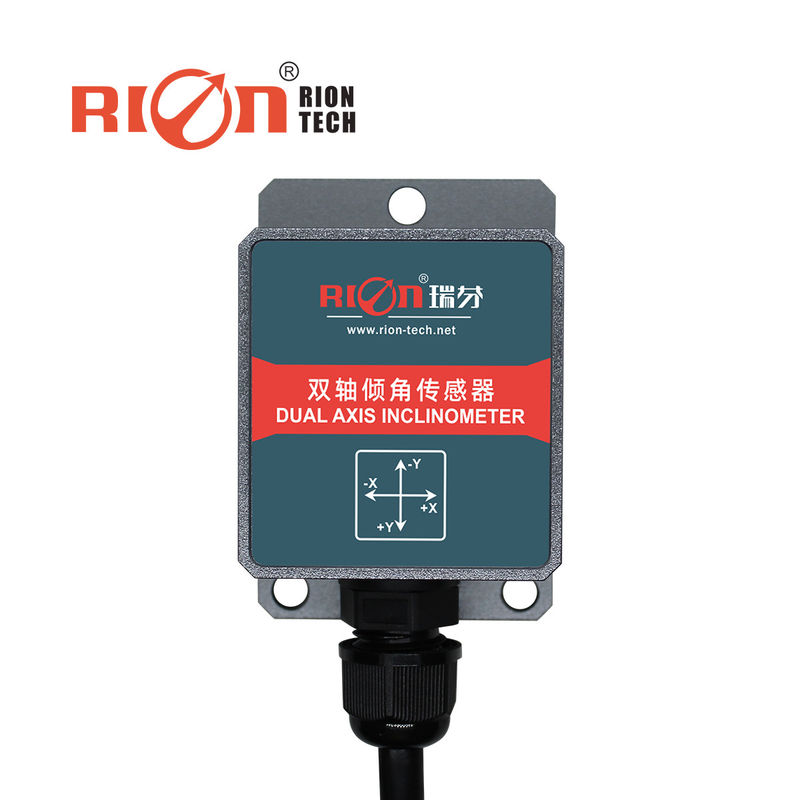

LCA310T High Accuracy Tilt Sensor IP67 Voltage Type Mini Inclinometer
▶ MAIN FEATURES
★ Single and biaxial inclination measurement
★ Any range within 360 ° is optional
★ Accuracy: 0.1 °
★ Wide voltage input 9～36V
★ Output mode 0～5V
★ Wide temperature operation -40～+ 85 ℃
★ IP67 protection level
★ High anti-vibration performance> 3500g
★ Resolution 0.02 °
★ Small size 55 × 37 × 24mm (customizable)
▶ APPLICATION RANGE
★ Electric blind chair leveling
★ Gimbal operation monitoring
★ Satellite antenna positioning
★ Medical bed level
★ Car chassis measurement
★ Four-wheel positioning system
★ Various engineering machinery angle control
▶ INTRODUCTION
LCA310T/LCA320T is a small-volume low-cost single-axis tilt sensor developed by RION technology. The output voltage is internally quadratic linearity corrected. It is a linearity voltage output tilt sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in tilting unit of the latest technology micro-electromechanical production process, the volume is small, the power consumption is low, and the consistency and stability of the micro-electromechanical process are very high. The working temperature reaches industrial level -40 ~ +85 ℃, which is a high cost performance Inclination module.
This product adopts the non-contact measurement principle, which can output the current inclination angle in real time. It is simple to use, small size, strong resistance to external electromagnetic interference, and strong ability to withstand shock and vibration; it is an ideal choice for industrial equipment and platform measurement attitude!
▶ SPECIFICATIONS
| LCA310T/LCA320T | CONDITION | PARAMETER | UNIT | |||
| Measure range | ±30 | ±60 | ±90 | 0~360 | ° | |
| Measure axis | X Y | X Y | X Y | X | Axis | |
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
| Resolution | 0.02 | 0.03 | 0.05 | 0.08 | ° | |
| Measure accuracy | @25℃ | 0.1 | 0.1 | 0.15 | 0.2 | ° |
| Long term. stability | <0.5 | <0.5 | <0.5 | <0.5 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.02 | ±0.02 | ±0.02 | ±0.02 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤150 | ≤150 | ≤150 | ≤150 | ppm/℃ |
| Power-on start time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response frequency | 20 | 20 | 20 | 20 | Hz | |
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥98000 hours/times | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Impact resistance | 100g@11ms, 3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2 | |||||
| Weight | ≤135g (including 1 meter cable) | |||||
