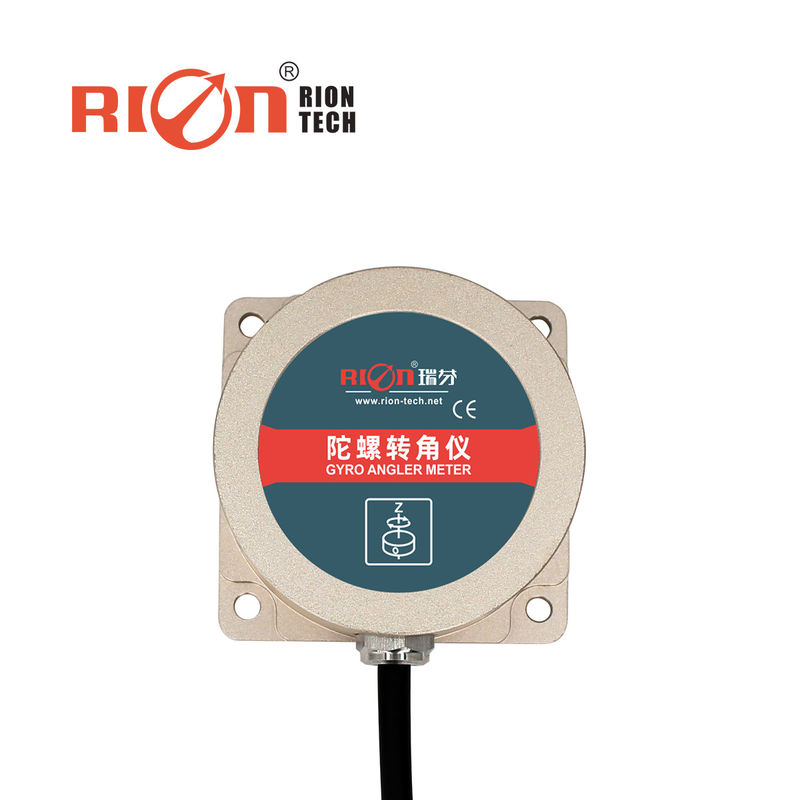

TL740D Anti Interference Single Axis Gyroscope Angular Sensor For AGV Vehicle

Name: TL740D Anti Interference Single Axis Gyroscope Angular Sensor For AGV Vehicle
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL740D-232
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: TL740D-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs gyro sensor in each inner box , 50pcs /ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, PAYPAL

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Anti Interference Gyroscope Angular Sensor, AGV Vehicle Angular Sensor, Single Axis Gyroscope Sensor


Resolution:	0.01°	Azimuth Accuracy:	<0.1°/min
Nonlinear:	0.1% Of FS	Max Angle Rate:	≥300 °/s
Starting Time:	30s (Static)	Input Voltage:	DC9-36V
Working Temp.:	-40 ~ +85℃

Resolution:	0.01°
Azimuth Accuracy:	<0.1°/min
Nonlinear:	0.1% Of FS
Max Angle Rate:	≥300 °/s
Starting Time:	30s (Static)
Input Voltage:	DC9-36V
Working Temp.:	-40 ~ +85℃

Description

TL740D Anti Interference Single Axis Gyroscope Angular Sensor For AGV Vehicle

Parameters	TL740D
Mesuring range	Azimuth Angle (±180)
Acquisition bandwidth (Hz)	>100
Resolution(°)	0.01
Azimuth accuracy (°/min)	<0.1
Nonlinear	0.1% of FS
Max angle rate (°/s)	≥150
Accelerometer range (g)	±4
Acceleroemter resultuion(g)	0.001
Acceleroemter accuracy(mg)	5
Starting time(s)	30(Static)
Input Voltage(V)	+9~36V
Current (mA)	60(12V)
Working Temp.(℃)	-40 ~ +85
Storage Temp(℃)	-40 ~ +85
Starting time(s)	5(Static)
Input Voltage(V)	+9~36V
Current (mA)	60(12V)
Working Temp.(℃)	-40 ~ +85
Storage Temp(℃)	-40 ~ +85
Vibration(g)	5g~10g
Impact(g)	200g pk,2ms,½sine
Working life	10 years
Output rate	5Hz,15Hz,25Hz,50Hz can set
Output signal	RS232 ,RS485 , CAN output
MTBF	≥50000 hours /times
Insulation resistance	≥100 Megohm
Impact resistance	100g@11ms,3Times/Axis(half sinusoid)
Anti-vibration	10grms,10~1000Hz
Protecting	IP67
Connector	matched with 1m cable
Weight	152g(without cable)

* Small drift,
* Stable performance
* Anti-interference
* Anti vibration

▶ KEY FEATURES

● Azimuth angle output

● Strong vibration resistance

● Long life,strong stability

● Cost-effective

● Compact & light design

● DC9~36V power supply

● RS232/RS485 output optional

▶ GENERAL DESCRIPTION

TL740D is RION-TECH newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION-TECH Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible . This product is specially used for robot car, AGV vehicle azimuth orientation, attitude control and other related applications, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

Ordering information

TL740D-232	RS232 output mode
TL740D-485	RS485 output mode
