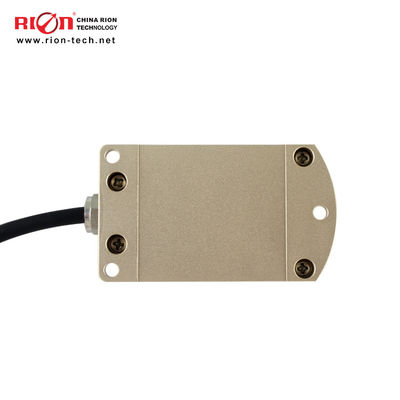

General Description
The MDA420T series inclinometer, developed by Rion Company for market with requirement on volume and cost, is a small volume low-cost Dual-axis tilt sensor. The output voltage goes through an internal secondary linearity correction, it is a linearity voltage output tilt sensor. Due to the latest built-in MEMS technology inclination unit, it achieves small size, low power consumption, high consistency and stability, working temperature up to the industry level -40 to +85, it is a ultra-high cost-effective inclination modules.
This product adopts non-contact measuring principle, outputing real-time current posture inclination, simple to use, no need to find the two sides of a angle. With advantages of small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration, it Is the ideal choice for industrial equipment and platform measuring.
Feature
●single/dual axis
●measuring range: dual axis ±90° , single axis ±180°
●accuracy:±0.5°
●DC 9~36V input
●working temp-40~+85℃
●resolution: 0.1°
●IP66
●anti-shock>2000g
●direct lead interface
●size:L61×W35×H21mm
●output type: MODBUS
Application :
●Electric blind man chair leveling
●Cloud deck operating monitor
●Satellite antenna positioning
● Medical equipment leveling
●Car Chassis Measurement
● Four - wheeled positioning system
●engineering mechanical measurement of dip angle
|
Item
|
Conditions
|
≤±30°
|
≤±60°
|
≤±90°
|
≤±360°
|
Unit
|
|||||
|
Resolution
|
|
|
|
|
|
°
|
|||||
|
Accuracy
|
25℃
|
|
|
|
|
°
|
|||||
|
Response time
|
|
|
|
|
|
S
|
|||||
|
|
-5~55℃
|
±0.5
|
±0.5
|
±0.5
|
±0.5
|
°
|
|||||
|
|
-25~70℃
|
±0.7
|
±0.7
|
±0.7
|
±0.7
|
°
|
|||||
|
|
-40~85℃
|
±0.8
|
±0.8
|
±0.8
|
±0.8
|
°
|
|||||
|
Output load
|
>500 ohm
|
|
|
|
|
|
|||||
|
Working time
|
50000 hours/time(no fault)
|
|
|
|
|
|
|||||
|
Insulation resistance
|
>100 ohm
|
|
|
|
|
|
|||||
|
Anti-shock
|
10grms,10~1000Hz
|
|
|
|
|
|
|||||
|
Impact resistance
|
100g@11ms,times/axis(half sinusoid)
|
|
|
|
|
|
|||||
|
Weight
|
60g
|
|
|
|
|
|
|||||
|
Certificate
|
CE;FCC;CCC;
|
|
|
|
|
|
|||||
|
Production standard
|
GB/T 191 SJ 20873-2003 tilt sensor,level sensor general specification
|
|
|
|
|
|
|||||
|
Quality system
|
ISO9001:2008 standard(certificate No.:128101)
|
|
|
|
|
|
|||||
