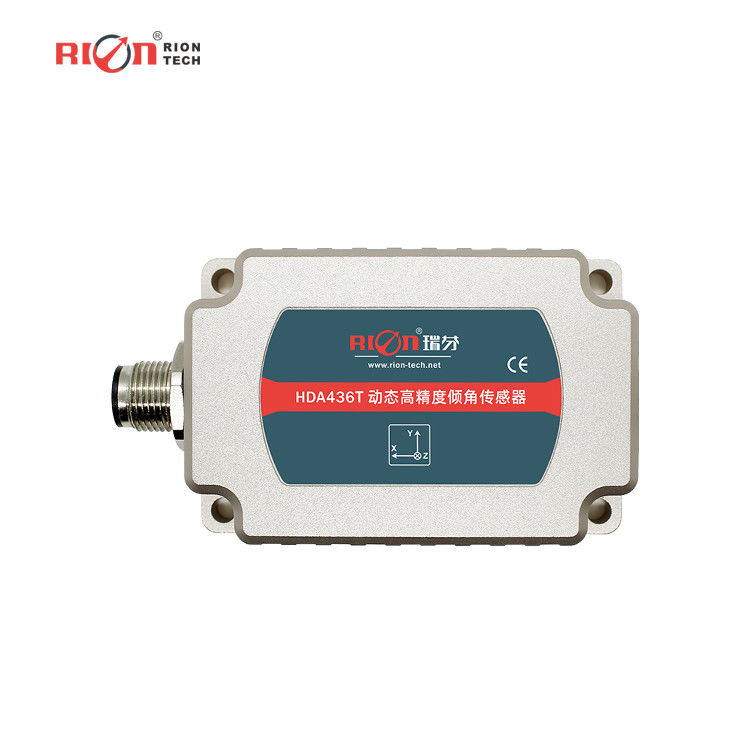

Horizontal Dynamic 2 Axis Inclinometer IP67

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HDA436VL-485-MB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $161.00/Pieces

Packaging Details: cartons

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

Dynamic 2 axis inclinometer

,

horizontal 2 axis Inclinometer

,

IP67 dual axis Inclinometer

Theory:
MEMS
Brand:
Dual Axis Inclinometer
Voltage - Supply:
DC9-3V
Output Type:
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature:
-40C° ~ +85C °
Mounting Type:
Horizontal /vertical
Resolution (Bits):
0.01
Size / Dimension:
L72*47* H22.5mm
Technology:
MEMS
Voltage - Input:
DC9-36V
Dynamic Inclinometer Wide Voltage Input:
DC9~36V
High Resolution:
0.01°
Highly Anti-vibration Performance:
>2000g
Zero Temperature Coefficient:
±0.01 °/℃
Sensitivity Temperature Coefficient:
≤100ppm/℃
Power On Time:
1s
Response Time:
0.01s
Static Accuracy:
± 0.05°
Dynamic Accuracy:
± 0.3°
Output:
Digital Sensor
Theory:
MEMS
Brand:
Dual Axis Inclinometer
Voltage - Supply:
DC9-3V
Output Type:
RS232,RS485,RS422,TTL,CAN 2.0 Are Optional
Operating Temperature:
-40C° ~ +85C °
Mounting Type:
Horizontal /vertical
Resolution (Bits):
0.01
Size / Dimension:
L72*47* H22.5mm
Technology:
MEMS
Voltage - Input:
DC9-36V
Dynamic Inclinometer Wide Voltage Input:
DC9~36V
High Resolution:
0.01°
Highly Anti-vibration Performance:
>2000g
Zero Temperature Coefficient:
±0.01 °/℃
Sensitivity Temperature Coefficient:
≤100ppm/℃
Power On Time:
1s
Response Time:
0.01s
Static Accuracy:
± 0.05°
Dynamic Accuracy:
± 0.3°
Output:
Digital Sensor
Description
Horizontal Dynamic 2 Axis Inclinometer IP67

Digital Dynamic Inclinometer Sensor Dual AxisFor Excavator

▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9 ~ 36V wide voltage input
★ Wide temperature operation -40 ~ + 85 ℃ ★ Resolution 0.01 °
★ IP67 protection level ★ High anti-vibration performance> 2000g
★ Size: L72XC47X H22.5mm


▶ APPLICATION

★ Satellite search satellites
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Radar vehicle platform detection
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Satellite communication vehicle attitude detection ★ Initial firing angle measurement of artillery barrel ★ Orientation measurement based on inclination angle ★ Various engineering machinery inclination measurement
HDA536T
Condition
                                                             Index


Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)


Measuring axis
/
    X axis / Y axis / Z axis


Resolution

0.01°


Static accuracy
@25℃
± 0.05°


Dynamic accuracy
@25℃
± 0.1°


Bias Instability (Allan)

8°/h


Zero point temp. coefficient
-40~85°
±0.01°/℃


Sensitivity temp. coefficient
-40~85°
≤100ppm/℃


Power-on startup time
                          1S



Response time
                          0.01S



Output signal
                          RS485/RS232/TTL



Electromagnetic compatibility
                           According to EN61000 and GBT17626



MTBF
                             ≥ 50000 hours / time



Insulation resistance
                             ≥100 Megohm



Impact resistance
                          100g @ 11ms, Triaxial and identical (half sine wave)



Anti- vibration
10grms,10~1000Hz



Protection grade
IP67



Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g



Weight
295g (excluding cable)



Horizontal Dynamic 2 Axis Inclinometer IP67 1
Horizontal Dynamic 2 Axis Inclinometer IP67 3
Horizontal Dynamic 2 Axis Inclinometer IP67 5
Horizontal Dynamic 2 Axis Inclinometer IP67 7
