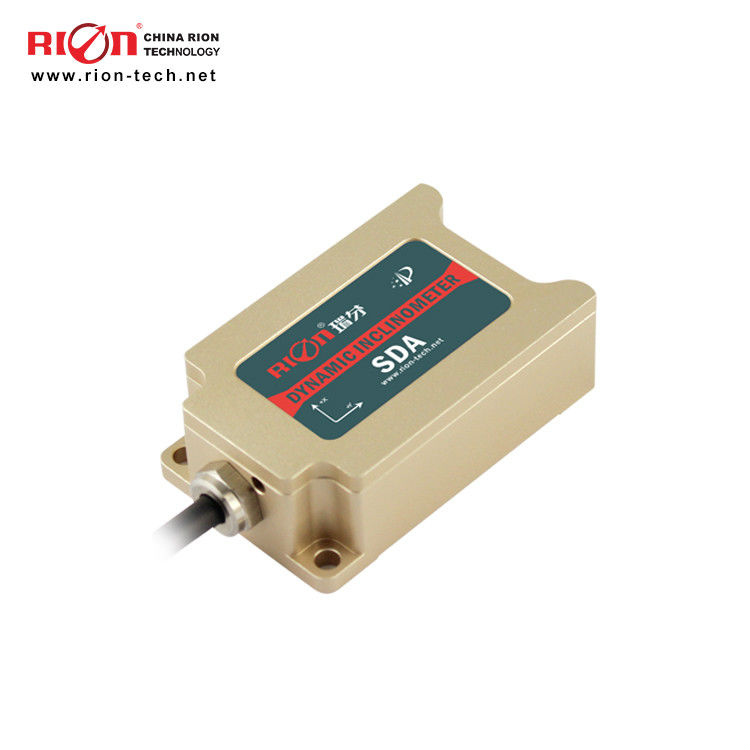

The SDA120T is a dynamic and static dual-mode voltage output tilt sensor that can simultaneously output the tilt angle of the two directions. The user only needs to collect the voltage value of the sensor to calculate the tilt angle of the current object. The built-in (MEMS) micro-solid pendulum is converted into a dip angle change by measuring the static gravitational field change, and the change is output by voltage (0-5V). It is mainly used to measure the tilt angle between an object and a horizontal plane.
This product adopts the principle of non-contact measurement, which can output the current attitude tilt angle in real time. It is easy to use and does not need to find two sides of relative change. Produced by the latest MEMS sensing production process, it has high precision, small size, strong anti-electromagnetic interference capability and strong shock and vibration resistance. It is an ideal choice for industrial equipment and platform measurement attitude!
●DC 9~36V power supply
●working temp. -40~+85℃
●direct lead wire
● Satellite antenna search star
● Rail-mobile monitoring
●Tilt angle measurement of High-altitude construction machinery
●oil-well drilling equipment
●Radar detection of vehicle platform
●Underground drill posture navigation
●Gun Barrel angle measurement in early shooting
eg:SDA120T-10-V1:Biaxial / standard / ±10 °measurement range / 0-5V output voltage
○ Connectors:1m lead cable(customized)
○ Protection glass:IP67
○ Enclosure material :Aluminum Oxide
○ Installation :4*M6 screws
Long term stability
Zero temperature coefficient
Sensitivity temperature coefficient
Power on time
10Hz,25Hz,50Hz can be setting
According to EN61000 and GBT17626
Standard 1M length,wearproof,grease proofing,wide temperature,Shielded cables 4*0.4mm2
*This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to the adjacent parameters.
Horizontal installation: be parallel between two surfaces:
Note: horizontal installation is factory default, if need vertical installation, please confirm
