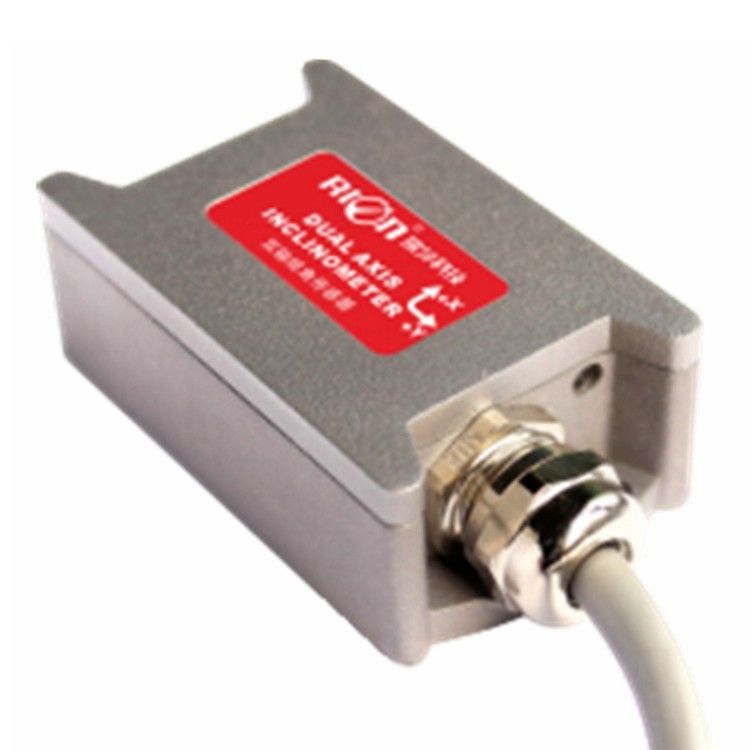

Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: MDA426-232

Payment & Shipping Terms

Minimum Order Quantity: 50 Pieces

Price: $30.00 - $35.00/Pieces

Packaging Details: CARTON

Delivery Time: 7 days for samples

Payment Terms: T/T, PayPal

Supply Ability: 1000 per Month

Get Best Price
Contact Now
Specifications
Highlight:

drilling rion inclinometer

,

anti electromagnetic rion inclinometer

,

tilt sensor inclinometer 9V

Usage:
Magnetic Sensor
Theory:
Inductance Sensor
Output:
Digital Sensor
Product Name:
Dynamic-Static Dual Mode Inclinometer
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
±1~±90°
Output:
MODBUS
Static Accuracy:
0.02
Dynamic Accuracy:
0.3
Anti-vibration:
>2000g
Protection Class:
IP67
Size:
72.62*42*23.1mm
Port:
SHENZHEN
Usage:
Magnetic Sensor
Theory:
Inductance Sensor
Output:
Digital Sensor
Product Name:
Dynamic-Static Dual Mode Inclinometer
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
±1~±90°
Output:
MODBUS
Static Accuracy:
0.02
Dynamic Accuracy:
0.3
Anti-vibration:
>2000g
Protection Class:
IP67
Size:
72.62*42*23.1mm
Port:
SHENZHEN
Description
Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor

MDA426T Dynamic low cost drilling digital tilt sensor /inclinometer CHINA

MDA416T/MDA426T Digital Output Type Dynamic Dual Axis Inclinometer



Description
The MDA416T/MDA426T series is a new generation of digital small-volume MEMS tilt sensor from RION. It has a two-channel Earth Gravity Inclination Unit that converts into a tilt angle by measuring static gravitational acceleration. Thereby the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured. Output mode RS232, RS485 level interface standard is optional. Due to the built-in MCU control system, the linearity of the sensor output is quadraticized, which compensates for the accuracy of the analog type due to insufficient correction.

This product adopts non-contact measurement original quantity, which can output the current attitude inclination angle in real time. It is easy to use and does not need to retrieve the two surfaces of relative change. This product is suitable for static and dynamic measurement. It is an ideal choice for industrial automation control and platform measurement attitude. It has strong resistance to external electromagnetic interference and can adapt to long-term work in industrial harsh environment.





Feature


●Dynamic biaxial tilt measurement
●range:±30°
●Static accuracy:±0.3°
●DC 9~36V power supply
●working temp. -40~+85℃
●resolution0.01°
●IP67
●anti-vibration >2000g
●direct lead wire

●size:L61×W35×H21mm

Application
● Satellite antenna search star

● Rail-mobile monitoring
●Tilt angle measurement of High-altitude construction machinery

●oil-well drilling equipment
●Radar detection of vehicle platform

●Underground drill posture navigation
●Gun Barrel angle measurement in early shooting

●Based on the angle direction measurement

●Satellite communications vehicle posture detection

●Shield pipe jacking application
●Ship's navigation posture measurement

●Geological equipment inclined monitoring



Technical Data:

Parameters
Conditions
MCA426M-30
Unit
Measuring range

±30
°
Measuring axis

X/Y

Resolution

0.1
°
Static accuracy
@25℃
± 0.3
°
Dynamic accuracy
@25℃
± 0.8
°
Zero temperature coefficient
-40~85°
±0.01
°/℃
Sensitivity temperature coefficient
-40~85°
≤100
ppm/℃
Power on time

1
S
Response time

0.05
s
Output signal
RS232,RS485

EMC
According to EN61000 and GBT17626

MTBF
≥50000hours/times

Insulation Resistance
≥100M

Shockproof
100g@11ms,3Times/Axis(half sinusoid))

Anti-vibration
10grms,10~1000Hz

Protection glass
IP67

Cables
Standard 1M length,wearproof,grease proofing,wide temperature,Shielded cables 4*0.4mm2

Weight
120g(without cable)


*This Technical data only list ± 30 °, series for reference, other measuring range please refer to the adjacent parameters.

Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 0



Ordering Information:


Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 2
Detailed Images
Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 4
Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 6

Mechanical Parameters

○ Connectors:1m lead cable (customized)

○ Protection glass:IP67

○ Enclosure material :Aluminum alloy sanding            oxidation

○ Installation : 3*M4 screws










SIZE:

Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 8

installation.

Horizontal installation: be parallel between two surfaces:

Note: horizontal installation is factory default, if need vertical installation, please confirm
with sales.

Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 10
Anti Electromagnetic Drilling Rion Inclinometer DC 9V Tilt Sensor 12
